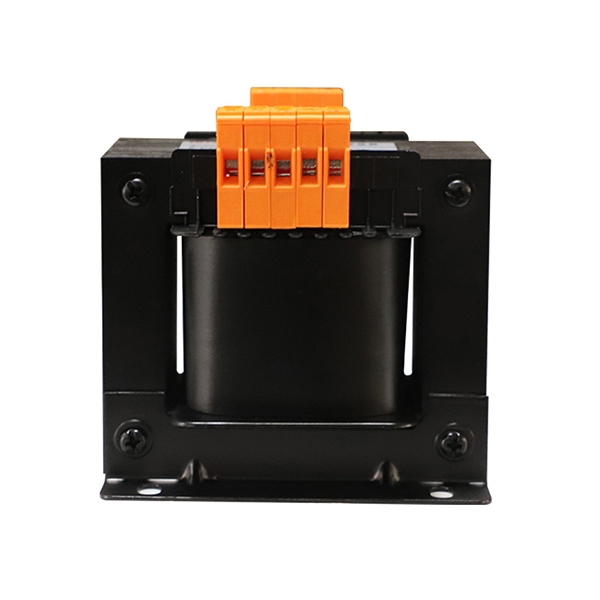

10 kVA Control Transformer, Single Phase, 230V to 110/36V

Q1: What is the customization range for primary and secondary voltages on this 10kVA control transformer?

The primary input voltage can be specified at any value up to 500V, and the secondary output voltage can be configured up to 240V, with the standard model set at 230V primary and 110V/36V secondary. Both values can be customized to suit your specific application within these limits. When ordering a non-standard configuration, please confirm both the required primary voltage and secondary tap arrangement at the time of order.

Q2: How does the terminal block design improve on standard control transformer wiring?

The high-quality terminal block provides a dedicated, mechanically secure connection point for both primary and secondary wiring — reducing installation time, improving connection consistency, and maintaining low contact resistance over the transformer's service life. This is particularly beneficial in the 10kVA capacity range, where higher currents make connection quality more critical than in smaller transformers.

Q3: When should I choose the 10kVA model over the 8kVA transformer?

Choose the 10,000VA control transformer when your application requires greater continuous power capacity, when the load calculation across connected control appliances and lighting circuits exceeds 8kVA, or when a 36V secondary output is specifically needed rather than the 24V rail offered by the 8kVA model. The 10kVA unit also adds a high-quality terminal block and enhanced temperature resistance as standard — making it the preferred choice for higher-demand installations where connection reliability and thermal durability are priorities.
