Q1: How does the triple primary voltage design differ from the dual primary found on 2kVA models?

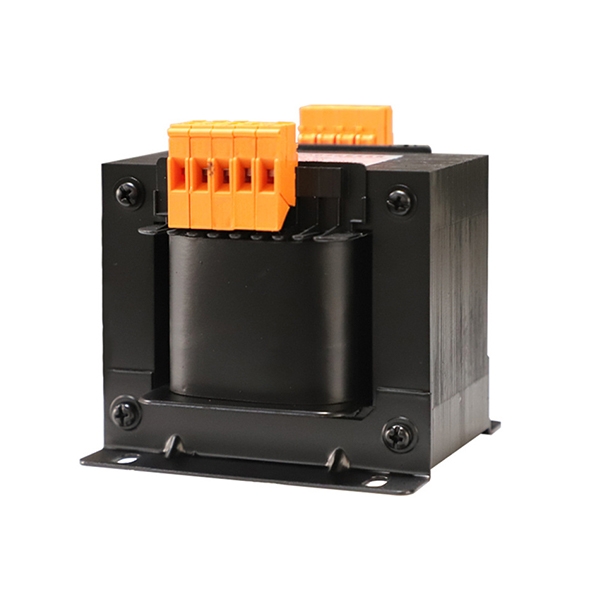

While the 2kVA control transformer offers two primary tap options (240V and 480V), this 3000VA model provides three primary voltage selections — 440V, 460V, and 480V — specifically targeting the cluster of standard industrial supply voltages common in North American manufacturing facilities and exported machinery. This finer voltage granularity within the 440–480V range ensures the transformer can be precisely matched to the facility's actual supply voltage, minimizing no-load losses and optimizing output regulation. As with all models in the range, input voltage can be further customized beyond these three standard options upon request.
Q2: What types of loads can be connected to the 120V and 24V secondary outputs?
The 120V secondary output is designed to power machine control electric appliances such as contactors, relays, solenoid valves, and control circuit boards commonly found in machine tool panels. The 24V secondary output is intended for low-voltage loads, including indicator lights, pilot lamps, signal devices, and other low-power control components. Both outputs are available simultaneously, allowing a single 3kVA control transformer to serve the complete control power hierarchy of a machine tool system without supplementary step-down devices.
Q3: Can this transformer be used in circuits with supply voltages above 480V or below 440V?
The standard model is rated for AC circuits with voltages up to 500V, with the three standard primary taps set at 440V, 460V, and 480V. For applications requiring primary voltages outside this range — whether lower (such as 380V or 415V) or higher (up to the 500V ceiling) — custom primary voltage configurations are available to order. Similarly, if your application requires secondary voltages other than the standard 120V and 24V outputs, both secondary taps can be customized to meet your specific control circuit requirements.
