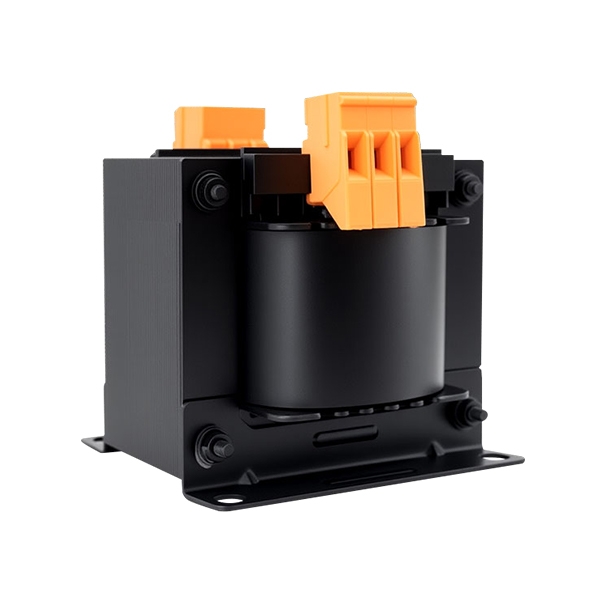

    Picture of 1 kVA Control Transformer, Single Phase, 380V to 208/36V
    Picture of 1 kVA Control Transformer, Single Phase, 380V to 208/36V
    Picture of 1 kVA Control Transformer, Single Phase, 380V to 208/36V
    Picture of 1 kVA Control Transformer, Single Phase, 380V to 208/36V
    Picture of 1 kVA Control Transformer, Single Phase, 380V to 208/36V
    Picture of 1 kVA Control Transformer, Single Phase, 380V to 208/36V

    1 kVA Control Transformer, Single Phase, 380V to 208/36V

    2 review(s) | Add your review
    SKU: PH-T-BK1000VA
    $576.31
    ● 1kVA single-phase control transformer for industrial control circuits and machine tools. ● Steps down 380V AC to 208V and 36V outputs for a stable control power supply. ● Full electrical isolation between primary and secondary windings for enhanced safety. ● Available with enameled copper or aluminum windings for different cost and performance requirements. ● Designed for AC 50/60Hz electrical systems and industrial equipment. ● Supports customizable input and output voltages for various control transformer applications.
    *
    *
    *
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    500VA Control Transformer, Single Phase, 240V to 110/36/24V

    ● 500VA single-phase control transformer designed for AC 50/60Hz industrial and commercial applications. ● Steps down 240V AC to 110V / 36V / 24V AC with reliable voltage isolation. ● Supports multiple voltage configurations for flexible control power supply applications. ● Full electrical isolation between primary and secondary windings for improved safety. ● Suitable for industrial control panels, machine tools, automation systems, lighting circuits, and signal lamps.
    $373.08

    800VA Control Transformer, Single Phase, 220/380V to 120/48V

    ● 800VA single-phase mini dry-type control transformer for AC 50/60Hz control and lighting circuits. ● Dual primary voltage inputs: 220V and 380V, switchable to suit different power supply environments. ● Dual secondary voltage outputs: 120V and 48V, meet multiple load requirements simultaneously. ● Air-cooled, dry-type, automatic mode construction for safe and maintenance-free operation. ● Fully supports customizable primary and secondary voltage configurations (primary ≤500V, secondary ≤240V). ● Compact mini form factor suited for panel mounting and space-constrained installations.
    $425.69

    2 kVA Control Transformer, Single Phase, 240/480V to 220/36V

    ● 2kVA single-phase dry-type control transformer rated for AC 50/60Hz industrial environments. ● Customizable primary and secondary can be specified to order. ● Class H insulation for superior thermal endurance and extended operational lifespan. ● Widely applied in machine tools, indicator light circuits, local work lighting, and machine control appliances.
    $756.24

    3 kVA Control Transformer, Single Phase, 440/460/480V to 120/24V

    ● 3kVA single-phase control transformer for AC 50/60Hz circuits rated 500V and below. ● Triple primary inputs: 440V, 460V, and 480V; broad compatibility with international industrial supply standards. ● Dual secondary outputs: 120V and 24V; serving both machine control and low-voltage indicator circuits simultaneously. ● Supports customizable input and output voltage configurations for various industrial control applications ● Full electrical isolation between primary and secondary sides for safe, stable power delivery.
    $897.69

    4 kVA Control Transformer, Single Phase, 440/460/480V to 120/24V

    ● 4000VA single-phase control transformer designed for industrial control and machine tool applications. ● Dual primary voltage 240V / 480V for compatibility with different industrial power systems. ● Step-down transformer with dual secondary outputs: 208V and 110V. ● Also supports multiple input and output voltage configurations for flexible control of power solutions. ● Suitable for AC 50/60Hz circuits with rated voltage up to 500V.
    $1,054.17

    5 kVA Control Transformer, Single Phase, 380V to 230/120V

    ● 5kVA single-phase control transformer designed for industrial control and electrical equipment. ● Steps down 380V AC to 230V and 120V outputs for reliable control power supply. ● Dry-type air cooling transformer for stable and maintenance-friendly operation. ● H class insulation winding with enameled copper or aluminum wire options. ● Suitable for AC 50/60Hz industrial control circuits. ● Supports multiple input and output voltage configurations for different application needs.
    $1,264.62
    Overview

    Operating at 50Hz or 60Hz, this control transformer converts 380V AC input voltage into dual secondary outputs of 208V and 36V, making the 1000VA control power transformer suitable for a wide range of control and auxiliary power applications. Manufactured with enameled copper or aluminum windings, the transformer offers flexibility between higher efficiency and cost-effective configurations. Additionally, the industrial control transformer supports multiple voltage configurations, allowing customized input and output voltage combinations to meet different equipment requirements. With complete electrical isolation between the primary and secondary windings, the transformer protects sensitive electrical components from voltage fluctuations and interference. This design ensures the stable operation of control circuits, indicator lights, signal systems, and automation equipment.

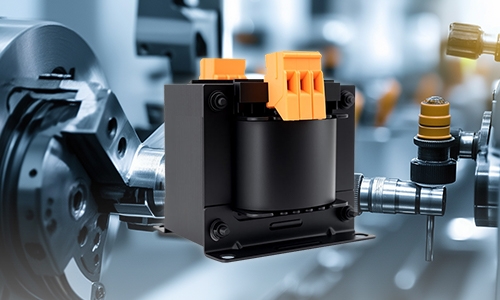

    1 kVA control transformer feature

    Feature

    • 1kVA Control Power Supply: With a 1kVA rated capacity, this single-phase control transformer provides reliable power for control circuits, indicator lights, and machine tool electrical components.
    • Step-Down Voltage Conversion with Dual Outputs: The transformer efficiently converts 380V AC to 208V and 36V outputs, providing flexible voltage options for industrial control systems, signal circuits, and auxiliary equipment.
    • Full Electrical Isolation: This control power transformer features complete electrical separation between primary and secondary windings, improving operational safety and protecting control devices from electrical disturbances.
    • Dry-Type Transformer Design: The dry-type air-cooled structure ensures stable heat dissipation and low maintenance, making the transformer suitable for continuous operation in industrial environments.


    Details

    1. Premium Wiring Terminals: Crafted from high-quality terminals with screw fastening that resists damage. Featuring excellent temperature resistance, voltage resistance, and flame retardancy to ensure efficient and stable equipment operation.
    2. All-Copper Coil: Wrapped tightly in flame-retardant material for long-lasting durability. The high-temperature resistant enameled wire delivers stable performance and efficient transmission, making it suitable for harsh environments.
    3. Cold-Rolled Silicon Steel Sheets: Made from carefully selected materials with low core loss characteristics, effectively reducing energy losses during transformer operation.
    Control transformer details

    Control Transformer Schematic Diagram Illustration

    Control transformer schematic diagram illustration

    Control Transformer Dimension

    Control transformer dimension

    Overall size (mm) Hole distance for installation (mm) Installation hole (mm)
    B E D A C K x J
    150 145 155 120 130 12 x 7
    Specs
    Product Name Single-phase control transformer
    Winding Material* Enamelled aluminium wire / Enamelled copper wire (Optional)
    Total Output Capacity 1000VA / 1 kVA
    Note: If your output includes multiple voltage levels, please email us with the capacity of each output. The total capacity should be the sum of all individual outputs. For example, if your outputs are aV and bV, then aV (capacity) + bV (capacity) = 500VA.
    Primary Voltage* (VAC) 110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Optional and Customised)
    Secondary Voltage* (VAC) 6, 12, 24, 36, 48, 110/48, 120/24, 208/36, 220/48, 230/36, 240/120, 120/24/12, 110/36/24, 127/36/6, 208/48/36/24...(Optional and Customised)
    Frequency 50 / 60Hz
    Insulation Level F / H
    Withstand Voltage Test Primary to secondary 2.5KV/min
    Primary to safety ground 2.5KV/min
    Secondary to safety ground 1.5KV/min
    Insulation Resistance Primary to secondary 2500V>100 megohm
    Primary to safety ground 2500V>100 megohm
    Secondary to safety ground 1500V>100 megohm
    Induction Withstand Voltage Test 125Hz/ 800V/min
    Ground Resistance 25A<80 milliohm
    Cooling Method Natural or air cooling
    Transformation Ratio <3%
    Air Carrying Current <6%
    Impedance Voltage about 6%
    Total Losses 0.1
    Efficiency 80%~99%
    Operating Temperature -25℃~+40℃ (40℃, 93% RH, 56 days)
    Storage Temperature -25℃~+100℃ (40℃, 93% RH, 56 days)
    Certificate CE, ISO
    Warranty 12 months
    Size Overall size: (150×145×155) mm, Hold distance for installation: (120×130) mm, Installation hold: (12×7) mm
    Weight 16 kg
    Application
    Control transformer for production lightning

    Production Lighting

    Control transformer for CNC machine tools

    CNC Machine Tools

    Control transformer for factory machinery

    Factory Machinery

    Control transformer for traffic signal power supply

    Traffic Signal Power Supply

    FAQ

    Q1: Can I specify copper or aluminum windings when ordering?

    Yes. This 1 kVA dry-type control transformer is available with either enameled copper wire or aluminum wire windings. Copper windings offer lower resistance and better thermal performance for high-duty-cycle applications, while aluminum windings provide a more cost-effective alternative for standard-duty machine tool and control panel installations. Please specify your preferred winding material when placing your order.

    Q2: Is the output voltage fixed at 208V and 36V, or can it be adjusted?

    The unit's default production model is configured for 380V input with 208V and 36V outputs, but custom input/output voltage combinations are fully supported. If your application requires a different primary voltage, alternative secondary taps, or a non-standard dual-output arrangement, our engineering team can produce a tailored configuration to meet your exact requirements.
