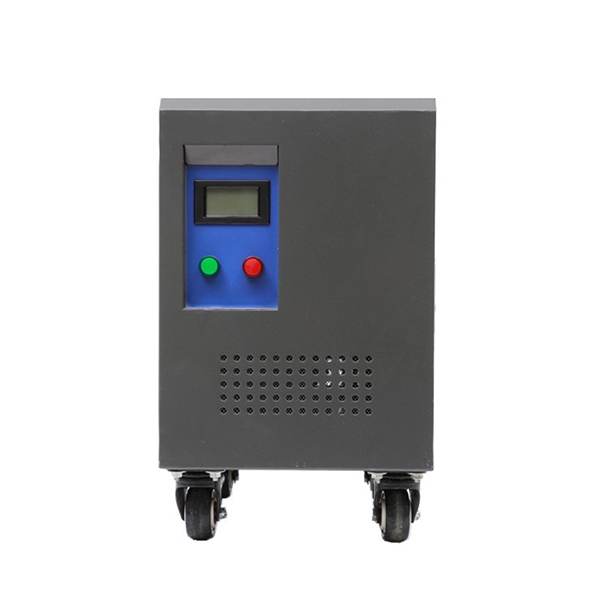

    10 kVA Single Phase Isolation Transformer, 120V to 240V

    0 review(s) | Add your review
    SKU: PH-T-DG10KVA
    $2,226.98
    ● Single-phase 10 kVA isolation transformer for sale, step-up and down, and custom voltages available. ● Available in open type or protected type, flexible for varied installation environments. ● Suited for machine control, lighting circuits, and signal power applications. ● High-quality construction optimized for the electrical and engineering industries. ● AC 50Hz / 60Hz compatible for global deployment.
    *
    *
    *
    *
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    4 kVA Single Phase Isolation Transformer, 220V to 110V

    ● 4 kVA single-phase isolation transformer, steps down 220V to 110V or steps up 110V to 220V; other voltages customizable. ● Supports a wide range of voltage configurations: 110V / 120V / 208V / 220V / 230V / 240V on both primary and secondary sides. ● Choice of enclosure type (IP20) or open type; aluminum or copper enameled wire winding available. ● Zero waveform distortion; complete galvanic isolation between primary and secondary circuits.
    $1,135.24

    5 kVA Single Phase Isolation Transformer, 230V to 120V

    ● 5 kVA isolation transformer, default 230V to 120V step-down; step-up and custom voltages available. ● Compatible with AC 50Hz / 60Hz for global applications. ● Multi-voltage support: 110V / 120V / 208V / 220V / 230V / 240V configurable on both primary and secondary sides. ● Working efficiency up to 95%; enhanced dielectric strength and insulation resistance for higher safety. ● Dry-type natural air self-cooling; IP20 enclosure protection; aluminum or copper wire winding optional.
    $1,436.54

    8 kVA Single Phase Isolation Transformer, 120V

    ● 8 kVA single-phase isolation transformer, default 1:1 ratio (120V/120V); wide voltage range customizable on both sides. ● Shielded design for enhanced electrical safety. ● LCD with two-color indicators for real-time input/output voltage monitoring. ● Cold-rolled oriented silicon steel core for low core loss; 180℃ enameled wire for long service life. ● Dry-type structure with stable performance; compatible with AC 50Hz / 60Hz; four 360° universal casters for easy mobility.
    $2,069.05

    15 kVA Single Phase Isolation Transformer, 208V to 110V

    ● 15 kVA isolation transformer, single-phase — default 208V to 110V step-down; step-up and custom voltages available. ● High efficiency with low temperature rise, built for sustained operation in demanding power supply environments. ● IP20 enclosure rated for both indoor and outdoor use. ● Damp-proof construction with high-quality materials; convenient maintenance design. ● AC 50Hz / 60Hz compatible for global deployment.
    $2,786.44

    20 kVA Single Phase Isolation Transformer, 240V to 208V

    ● 20 kVA single-phase isolation transformer, steps down 240V to 208V or steps up 208V to 240V; other voltages customizable. ● Shielded design for enhanced electrical isolation. ● Natural air self-cooling with active rear fan; 180℃-rated enameled wire for long service life. ● LCD digital display with two-color indicators; four 360° universal casters for on-site mobility.
    $3,388.89

    30 kVA Single Phase Isolation Transformer, 110V to 220V

    ● 30kVA single-phase isolation transformer for heavy-duty power distribution; various voltages are customizable. ● Three selectable insulation grades for tailored safety and thermal performance. ● Overload capacity: sustains more than 1.2× rated load for up to 1 hour continuously. ● Choice of aluminum or copper wire winding; low temperature rise design. ● LCD voltage display; AC 50Hz / 60Hz compatible worldwide.
    $4,380.77
    Overview

    Our 10kVA isolation transformer is designed for reliable AC voltage conversion and power supply, supporting 120V to 240V step-up applications. It is suitable for use in 50Hz/60Hz electrical systems and can be customized for various voltage configurations. Available in both open-type and protected-enclosure designs, this transformer offers flexibility for various installation environments. Built for safety and efficiency, this isolation transformer ensures stable voltage output and reliable operation in demanding industrial conditions.

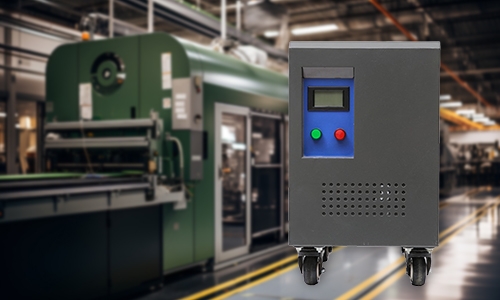

    10 kVA single-phase isolation transformer feature

    Feature

    • High-Capacity Power Conversion: Delivers 10 kVA of output for demanding applications, including machine control, lighting, and signal systems.
    • Flexible Voltage Configuration: Supports 120V to 240V step-up conversion and offers custom voltage options to meet different requirements.
    • Multiple Structural Options: Available in open type or protected enclosure, suitable for various installation and environmental needs.
    • Reliable Performance for Industrial Use: Provides consistent and dependable power for electrical and engineering applications.


    1. Details

      1. Power indicator
      2. Over-temperature indicator
      3. Output voltage digital display screen
    Single-phase isolation transformer details

    Single-phase Isolation Transformer Schematic Diagram

    0.5kVA to 10kVA single-phase isolation transformer schematic diagram

    Single-phase Isolation Transformer Dimension

    Single-phase isolation transformer dimension



    Aluminium Wire Transformer Size Copper Wire Transformer Size
    Without Enclosure: a*b*c=290*300*350 (mm) Without Enclosure: a*b*c=300*310*345 (mm)
    Mouting Size: D*E=150*180 (mm) (aperture: 20*10mm) Mouting Size: D*E=190*190 (mm) (aperture: 20*10mm)
    With Enclosure: A*B*C=380*530*560 (mm) With Enclosure: A*B*C=380*530*560 (mm)
    Specs
    Basics
    Phase Single-phase
    Capacity 10000 VA / 10 kVA
    Weight 100 kg
    Technical Parameters
    Primary Voltage 120V AC (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 380V/ 400V/ 415V/ 480V)
    Secondary Voltage 240V AC (Optional: 24V/ 36V/ 48V/ 110V/ 120V/ 208V/ 220V/ 230V/ 380V/ 400V/ 415V/ 480V)
    Frequency 50Hz / 60Hz
    Winding Material Aluminium / Copper wire (Optional)
    Work Efficiency ā‰„95%
    Insulation Resistance ā‰„50 MĪ©
    Electrical Strength 2000V AC / 1 min
    Noise ā‰¤35dB (1 meter)
    Insulation Grade Grade B (130ā„ƒ) / Grade F (155ā„ƒ) / Grade H (180ā„ƒ)
    Induced Overvoltage Withstand Test 125Hz / 800V / min
    Impedance Voltage About 6%
    Total Losses 10%
    Cooling Mode Natural or air cooling
    Overload Capacity Allow more than 1.2 times the rated load to work for up to 1 hour
    Enclosure Protection Grade IP20
    Certificate CE, ISO
    Warranty 12 months
    Working Environment
    Temperature -15ā„ƒ ~ +45ā„ƒ

    Note:

    1. The transformer can only convert voltage, and CANNOT convert frequency.
    2. The transformer CANNOT convert 1-phase voltage to 3-phase voltage.
    3. Support voltage customization, various specifications customization.
    Application
    Single-phase isolation transformer for industrial equipment

    Industrial Equipment

    Single-phase isolation transformer for factory and industrial parks

    Factory & Industrial Parks

    Single-phase isolation transformer for machine tools and equipment

    Machine Tools & Equipment

    Single-phase isolation transformer for communication equipment

    Communication Equipment

    FAQ

    Q1. What is the difference between the open-type and protected-type versions of this 10 kVA isolation transformer?

    The open-type version has no outer enclosure and is designed for installation inside an existing cabinet, panel, or custom housing, where the installer defines the space and integration requirements. The protected type includes a built-in enclosure that safeguards internal components from dust and accidental contact, suitable for standalone deployment in workshops or equipment rooms. Both versions offer identical electrical performance and voltage customization options.

    Q2. What voltage configurations are available for this 10 kVA isolation transformer?

    The default configuration steps up 120V (primary) to 240V (secondary). Step-down operation (240V to 120V) and other voltage pairs are supported, with both primary and secondary voltages customizable to 110V, 120V, 208V, 220V, 230V, and 240V. Please specify your required input/output voltage combination and preferred transformer type (open or protected) when placing your order.
