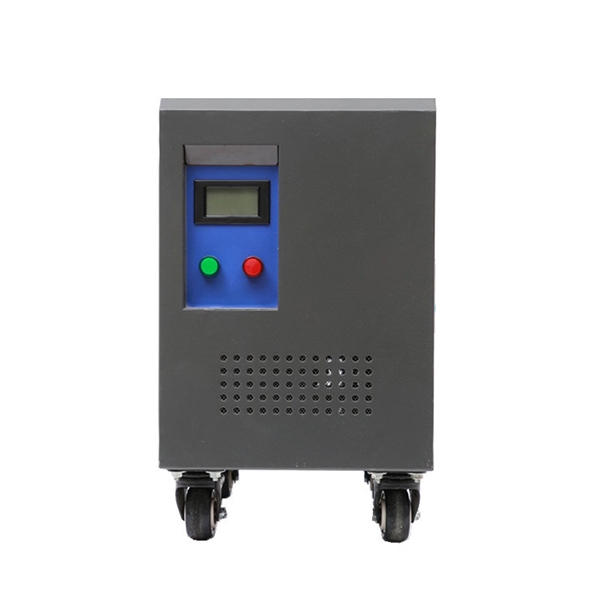

    Picture of 20 kVA Single Phase Isolation Transformer, 240V to 208V
    Picture of 20 kVA Single Phase Isolation Transformer, 240V to 208V
    Picture of 20 kVA Single Phase Isolation Transformer, 240V to 208V
    Picture of 20 kVA Single Phase Isolation Transformer, 240V to 208V
    Picture of 20 kVA Single Phase Isolation Transformer, 240V to 208V
    Picture of 20 kVA Single Phase Isolation Transformer, 240V to 208V
    Picture of 20 kVA Single Phase Isolation Transformer, 240V to 208V

    20 kVA Single Phase Isolation Transformer, 240V to 208V

    0 review(s) | Add your review
    SKU: PH-T-DG20KVA
    $3,388.89
    ● 20 kVA single-phase isolation transformer, steps down 240V to 208V or steps up 208V to 240V; other voltages customizable. ● Shielded design for enhanced electrical isolation. ● Natural air self-cooling with active rear fan; 180℃-rated enameled wire for long service life. ● LCD digital display with two-color indicators; four 360° universal casters for on-site mobility.
    *
    *
    *
    *
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    1 kVA Single Phase Isolation Transformer, 240V to 120V

    ● Single-phase 1kVA isolation transformer for AC voltage conversion. ● Customizable input/output voltages: 110V / 120V / 208V / 220V / 230V / 240V and more supported. ● Choice of aluminum or copper enameled wire winding to suit budget and performance needs. ● Enclosed structure with IP20 protection. ● Stable performance with low noise operation.
    $784.36

    2 kVA Single Phase Isolation Transformer, 240V to 110V

    ● 2 kVA dry-type single-phase isolation transformer, ideal for residential, commercial, and light industrial use. ● Supports a wide range of voltage configurations: 110V / 120V / 208V / 220V / 230V / 240V on both primary and secondary sides. ● Multiple wiring options: 240V→110V, 208V→120V, 110V→230V, and more — fully customizable to application needs. ● Rated for 50 Hz and 60 Hz systems, compatible with global power standards. ● Choice of enameled copper wire or aluminum wire winding to suit different budgets and performance needs. ● Up to 95% efficiency with low core loss, reducing operating costs by up to 30%.
    $854.47

    8 kVA Single Phase Isolation Transformer, 120V

    ● 8 kVA single-phase isolation transformer, default 1:1 ratio (120V/120V); wide voltage range customizable on both sides. ● Shielded design for enhanced electrical safety. ● LCD with two-color indicators for real-time input/output voltage monitoring. ● Cold-rolled oriented silicon steel core for low core loss; 180℃ enameled wire for long service life. ● Dry-type structure with stable performance; compatible with AC 50Hz / 60Hz; four 360° universal casters for easy mobility.
    $2,069.05

    10 kVA Single Phase Isolation Transformer, 120V to 240V

    ● Single-phase 10 kVA isolation transformer for sale, step-up and down, and custom voltages available. ● Available in open type or protected type, flexible for varied installation environments. ● Suited for machine control, lighting circuits, and signal power applications. ● High-quality construction optimized for the electrical and engineering industries. ● AC 50Hz / 60Hz compatible for global deployment.
    $2,226.98

    15 kVA Single Phase Isolation Transformer, 208V to 110V

    ● 15 kVA isolation transformer, single-phase — default 208V to 110V step-down; step-up and custom voltages available. ● High efficiency with low temperature rise, built for sustained operation in demanding power supply environments. ● IP20 enclosure rated for both indoor and outdoor use. ● Damp-proof construction with high-quality materials; convenient maintenance design. ● AC 50Hz / 60Hz compatible for global deployment.
    $2,786.44

    30 kVA Single Phase Isolation Transformer, 110V to 220V

    ● 30kVA single-phase isolation transformer for heavy-duty power distribution; various voltages are customizable. ● Three selectable insulation grades for tailored safety and thermal performance. ● Overload capacity: sustains more than 1.2× rated load for up to 1 hour continuously. ● Choice of aluminum or copper wire winding; low temperature rise design. ● LCD voltage display; AC 50Hz / 60Hz compatible worldwide.
    $4,380.77
    Overview

    Powerhome's 20 kVA single-phase isolation transformer supports 240V to 208V step-down and 208V to 240V step-up applications. It also supports custom voltage configurations. Featuring a shielded isolation design, the transformer provides enhanced protection by separating the primary and secondary windings, reducing electrical interference, and improving safety. With a dry-type natural air self-cooling system, it ensures stable operation in 50Hz/60Hz AC environments.

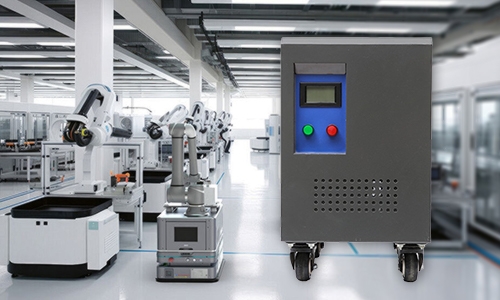

    20 kVA single-phase isolation transformer feature

    Feature

    • Efficient Cooling & Thermal Management: Equipped with a ventilation structure and a cooling fan, ensuring effective heat dissipation and stable operation.
    • High-Quality Materials & Low Core Loss: Uses high-temperature resistant enameled wire (up to 180Ā°C) and oriented silicon steel sheets for improved efficiency and durability.
    • Real-Time Monitoring & Indicators: Our isolation transformer also features an LCD voltage display with indicators for accurate input/output monitoring.
    • Continuous Operation & Mobility Design: Supports long-term operation with overload capability, and includes universal casters for easy movement.


    1. Details

      1. Power indicator
      2. Over-temperature indicator
      3. Output voltage digital display screen
    Single-phase isolation transformer details

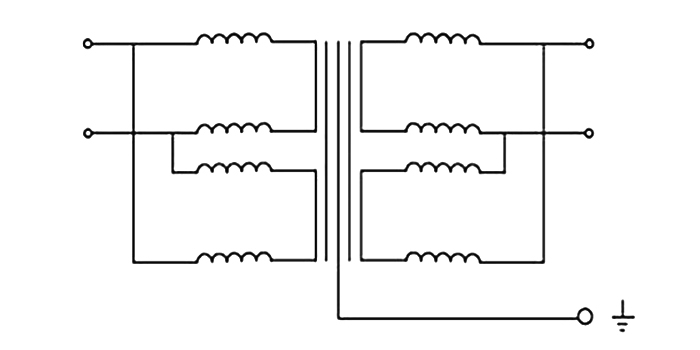

    Single-phase Isolation Transformer Schematic Diagram

    15kVA to 30kVA single-phase isolation transformer schematic diagram

    Single-phase Isolation Transformer Dimension

    Single-phase isolation transformer dimension



    Aluminium Wire Transformer Size Copper Wire Transformer Size
    Without Enclosure: a*b*c=330*300*470 (mm) Without Enclosure: a*b*c=300*370*345 (mm)
    Mouting Size: D*E=170*160 (mm) (aperture: 20*10mm) Mouting Size: D*E=210*190 (mm) (aperture: 20*10mm)
    With Enclosure: A*B*C=420*610*610 (mm) With Enclosure: A*B*C=420*610*610 (mm)
    Specs
    Basics
    Phase Single-phase
    Capacity 20000 VA / 20 kVA
    Weight 141 kg
    Technical Parameters
    Primary Voltage 240V AC (Optional: 110V/ 120V/ 208V/ 220V/ 230V)
    Secondary Voltage 208V AC (Optional: 110V/ 120V/ 220V/ 230V/ 240V)
    Frequency 50Hz / 60Hz
    Winding Material Aluminium / Copper wire (Optional)
    Work Efficiency ā‰„95%
    Insulation Resistance ā‰„50 MĪ©
    Electrical Strength 2000V AC / 1 min
    Noise ā‰¤35dB (1 meter)
    Insulation Grade Grade B (130ā„ƒ) / Grade F (155ā„ƒ) / Grade H (180ā„ƒ)
    Induced Overvoltage Withstand Test 125Hz / 800V / min
    Impedance Voltage About 6%
    Total Losses 10%
    Cooling Mode Natural or air cooling
    Overload Capacity Allow more than 1.2 times the rated load to work for up to 1 hour
    Enclosure Protection Grade IP20
    Certificate CE, ISO
    Warranty 12 months
    Working Environment
    Temperature -15ā„ƒ ~ +45ā„ƒ

    Note:

    1. The transformer can only convert voltage, and CANNOT convert frequency.
    2. The transformer CANNOT convert 1-phase voltage to 3-phase voltage.
    3. Support voltage customization, various specifications customization.
    Application
    Single-phase isolation transformer for industrial equipment

    Industrial Equipment

    Single-phase isolation transformer for factory and industrial parks

    Factory & Industrial Parks

    Single-phase isolation transformer for machine tools and equipment

    Machine Tools & Equipment

    Single-phase isolation transformer for communication equipment

    Communication Equipment

    FAQ

    Q1. What role does the aluminum shield between windings play in this 20 kVA isolation transformer?

    The aluminum shield placed between the primary and secondary windings acts as an electrostatic barrier, reducing capacitive coupling and suppressing high-frequency noise transfer between the input supply and the output circuit. This results in cleaner power delivery to the connected application and provides a higher degree of electrical isolation than non-shielded transformer designs ā€” particularly beneficial in environments with significant electrical noise on the supply line.

    Q2. What voltage configurations are available for this 20 kVA isolation transformer?

    The default configuration converts 240V (primary) to 208V (secondary), with the reverse step-up configuration (208V to 240V) also available. Both primary and secondary voltages are fully customizable across 110V, 120V, 208V, 220V, 230V, and 240V to accommodate project-specific requirements and regional power standards. Please specify your required voltage pairing when placing your order.
