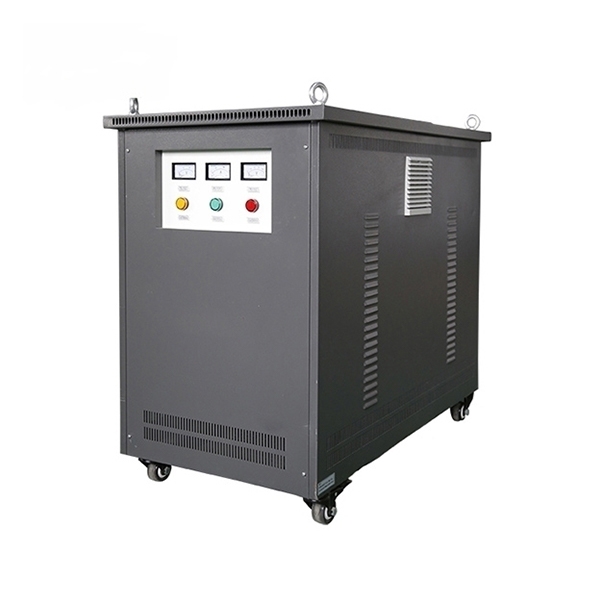

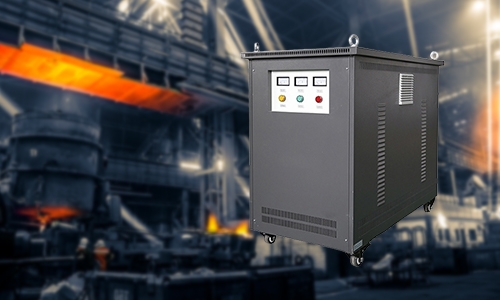

100 kVA Three Phase Isolation Transformer, 208V to 400V, Step Up/Down

Note:

1. The transformer can only convert voltage, and CANNOT convert frequency.
2. The transformer CANNOT convert 1-phase voltage to 3-phase voltage.
3. Input/output voltage, power rating, and whether a shell for all transformers can be customized to meet clients' requirements.

Q1. What does the IP-rated enclosure add at 100 kVA compared with a standard indoor unit?

At 100 kVA, a transformer is a significant piece of infrastructure that may need to be located where a dedicated indoor electrical room is not available or practical. The IP-rated enclosure provides protection against solid object ingress and water splashing, allowing installation in outdoor switchgear enclosures, covered rooftop plant rooms, and semi-exposed industrial environments — significantly increasing site flexibility for project engineers and electrical contractors.

Q2. Is a 100 kVA isolation transformer suitable for powering a data centre UPS input or IT equipment room?

Yes — 100 kVA isolation transformers are commonly used as the supply-side interface for UPS systems, server room distribution boards, and IT equipment rooms, particularly where the local grid voltage (400V in Europe and Asia) needs to be converted to the 208V standard used by North American-specification UPS units, PDUs, and rack-mounted equipment. The galvanic isolation eliminates common-mode noise and ground loop interference between the building's main distribution and the sensitive IT load — a standard power quality requirement in data centre design guidelines, including the Uptime Institute Tier standards and ASHRAE recommendations.
