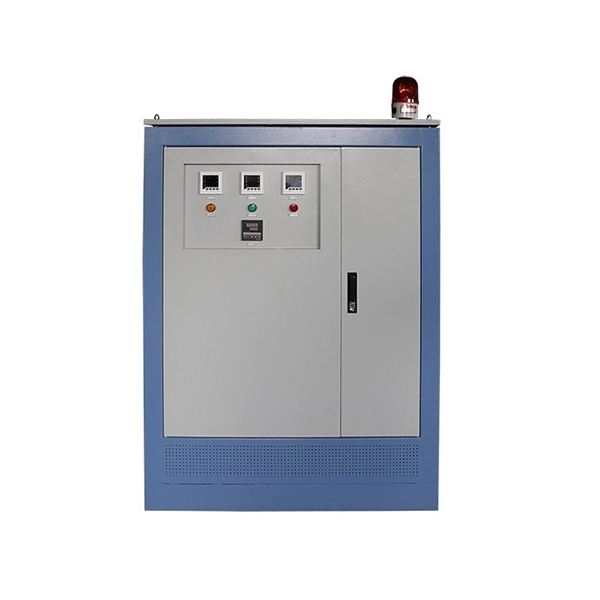

    300 kVA Three Phase Isolation Transformer, 480V to 400V, Step Up/Down

    0 review(s) | Add your review
    SKU: PH-T-SG300KVA
    $30,086.16
    ● 300 kVA 3-phase isolation transformer for power infrastructure and industrial plants. ● Stable voltage conversion between 480V and 400V; other voltages are customisable. ● Increased protection against electric shock through safe galvanic isolation. ● Built-in temperature alarm, triggers at 150°C for overtemperature protection. ● Aluminium or copper winding; open type or IP 24 enclosure; optional movable wheels. ● CE and ISO certified; 12-month warranty.
    *
    *
    *
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    30 kVA Three Phase Isolation Transformer, 480V to 415V, Step Up/Down

    ● 30 kVA 3-phase isolation transformer, efficient voltage conversion from 480V to 415V. ● High efficiency, dry-type air self-cooling, no oil, no external fans required. ● Minimum 1-year warranty with high-quality workmanship. ● Multiple voltage configurations selectable on both sides; supports 50Hz / 60Hz power systems. ● Aluminium or copper winding; open type or IP 24 enclosure; optional movable wheels.
    $5,129.37

    75 kVA Three Phase Isolation Transformer, 480V to 220V, Step Up/Down

    ● Three-phase isolation transformer for sale, rated power capacity 75 kVA. ● Non-ventilated (TENV) construction, rated for hazardous locations and harsh industrial environments. ● Low noise, lower temperature rise, and higher efficiency for demanding continuous-duty applications. ● IP 24 rated enclosure; AC 50 Hz / 60 Hz; multiple voltage configurations on both sides. ● Aluminium or copper winding; optional movable wheels.
    $8,135.41

    80 kVA Three Phase Isolation Transformer, 480V to 380V, Step Up/Down

    ● 80 kVA 3-phase isolation transformer, stable voltage conversion from 480V to 380V. ● Low operating cost and reduced heat generation, ideal for a wide range of power supply applications. ● Designed for 50Hz / 60Hz power supply environments; multiple voltage configurations available. ● Aluminium or copper winding; open type or IP 24 enclosure; optional movable wheels. ● Suited for control circuits, CNC machine tools, precision machinery, mechanical & electronic equipment, and lighting.
    $9,336.51

    100 kVA Three Phase Isolation Transformer, 208V to 400V, Step Up/Down

    ● 3-phase isolation transformer released now, 100 kVA, flexible voltage conversion between 400V and 208V. ● Dry-type air self-cooling design, no oil, no fans, maintenance-free operation. ● Suitable for 50Hz / 60Hz applications; multiple voltage configurations selectable on both sides. ● Optional movable wheels; aluminium or copper winding; CE and ISO certified. ● Higher safety rating; suited for control circuits, CNC machine tools, precision machinery, and lighting.
    $14,085.71

    150 kVA Three Phase Isolation Transformer, 240V to 400V, Step Up/Down

    ● High-power 150 kVA 3-phase isolation transformer, 240V to 400V step-up, 400V to 240V step-down available. ● Dry-type air self-cooling, low noise, lower temperature rise, and higher safety. ● Built-in temperature alarm system, triggers at 150°C to protect the transformer from overheating. ● 3-phase to 3-phase standard; 3-phase to single-phase customisation available on request.
    $19,098.65

    200 kVA Three Phase Isolation Transformer, 480V to 240V, Step Up/Down

    ● 200 kVA three-phase isolation transformer, 240V to 480V step-up or 480V to 240V step-down, continuous rating. ● Improved safety through galvanic isolation maintains full equipment separation from the power source. ● Reduces power surges and line disturbances reaching connected equipment. ● Built-in temperature alarm, triggers at 150°C to prevent thermal overload. ● Dry-type air self-cooling; AC 50 Hz / 60 Hz; multiple voltage configurations on both sides. ● Aluminium or copper winding; open type or IP 22 enclosure; optional movable wheels.
    $25,413.65
    Overview

    The 300 kVA three-phase isolation transformer is engineered for large-scale industrial power infrastructure requiring stable voltage conversion and enhanced electrical safety. It supports step-down from 480V to 400V and step-up operation for flexible system integration. By providing effective electrical isolation, it improves protection against electric shock and ensures smooth, consistent power delivery for critical equipment. Multiple voltage configurations are available to meet diverse industrial and regional requirements.

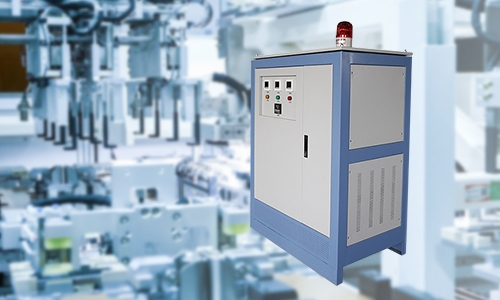

    300 kVA three-phase isolation transformer feature

    Feature

    • Increased Electric Shock Protection Through Galvanic Isolation: Provides a full electrical break between the 480V primary supply and the secondary load.
    • Consistent, Smooth Voltage Transformation: Delivers stable, low-distortion voltage output under varying load conditions.
    • Built-In Temperature Alarm: Monitors internal temperature continuously and triggers an alarm at 150°C, prompting operators to suspend the transformer before winding or insulation damage occurs.
    • Wide Voltage Customisation: Beyond the standard 480V/400V configuration, both primary and secondary voltages are independently customisable across a broad range of standard values.


    1. Details

      1. Input Voltage Indicator: Indicates the presence and status of the input power supply.
      2. Output Current Indicator: Displays the operating current on the output side of the transformer.
      3. Temperature Controller: Monitors and regulates the transformer temperature to ensure safe operation.
      4. Input Voltage Digital Display Screen: Provides real-time digital readings of the input voltage.
      5. Output Current Digital Display Screen: Shows accurate digital measurements of the output current.
      6. Output Voltage Digital Display Screen: Displays real-time output voltage values for monitoring system performance.
      7. Alarm: Alerts when the transformer temperature or operating condition exceeds safe limits.
      8. Output Voltage Indicator: Indicates the output voltage status and presence.
    150 kVA to 300 kVA three-phase isolation transformer details

    300 kVA Three-phase Isolation Transformer Schematic Diagram

    150 kVA to 300 kVA three-phase isolation transformer schematic diagram

    300 kVA Three-phase Isolation Transformer Installation Dimensions

    150 kVA to 300 kVA three-phase isolation transformer installation dimensions



    Aluminium Wire Transformer Size Copper Wire Transformer Size
    Open Type: a*b*c=1060**450*955 (mm) Open Type: a*b*c=990*410*855 (mm)
    Mounting Size: d*e=600*400 (mm) Mounting Size: d*e=600*400 (mm)
    Protected Type: A*B*C=1300*750*1600 (mm) Protected Type: A*B*C=1300*750*1600 (mm)
    Specs
    Basics
    Phase 3-phase
    Capacity 300 kVA
    Weight-Aluminium Winding Open type: 740 kg
    Protected type: 890 kg
    Weight-Copper Winding Open type: 930 kg
    Protected type: 1005 kg
    Technical Parameters
    Primary Voltage 480V (Optional: 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
    Secondary Voltage 400V (Optional: 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
    Frequency 50 / 60 Hz
    Winding Material Aluminium / Copper Wire (Optional)
    Work Efficiency ≥ 95%
    Insulation Resistance ≥ 50 MΩ
    Dielectric Strength 3000V AC / 1 min
    Noise < 35~65 dB (at 1 m)
    Insulation Grade Class H
    Wiring Mode Dyn11
    Cooling Mode Dry-type, natural air cooling
    Overload Capacity Allow more than 1.2 times the rated load to work for up to 4 hours
    Enclosure Protection Grade IP 22
    Certificate CE, ISO
    Warranty 12 months
    Working Environment
    Ambient Temperature −15 °C ~ +40 °C
    Relative Humidity ≤ 90% RH, non-condensing
    Altitude < 1000 m, free of corrosive gas and conductive dust

    Note:

    1. The transformer can only convert voltage, and CANNOT convert frequency.
    2. The transformer CANNOT convert 1-phase voltage to 3-phase voltage.
    3. Input/output voltage, power rating, and whether a shell for all transformers can be customized to meet clients' requirements.
    Application
    Three-phase isolation transformer for metro and rail transit

    Metro & Rail Transit

    Three-phase isolation transformer for manufacturing and machine shops

    Manufacturing & Machine Shops

    Three-phase isolation transformer for commercial buildings

    Commercial Buildings

    Three-phase isolation transformer for oil, gas and petrochemical

    Oil, Gas & Petrochemical

    FAQ

    Q1. How does "consistent, smooth voltage transformation" benefit high-capacity industrial installations?

    At 300 kVA, even small voltage fluctuations on the secondary supply can affect the performance of large CNC machines, industrial drives, and process control systems. Consistent, smooth voltage transformation means the secondary output voltage remains stable and low in harmonic distortion across the load range — from light load to full capacity — reducing the risk of nuisance trips, control errors, and premature equipment wear caused by poor power quality.

    Q2. What site preparation is required for installing a 300 kVA isolation transformer?

    At 300 kVA, site preparation requirements are more substantial than for smaller ratings. The transformer's physical weight (dependent on winding material and enclosure type) requires a reinforced floor surface or dedicated plinth, and adequate ventilation clearance around the enclosure must be maintained to support dry-type air self-cooling. The built-in temperature alarm should be wired to a local panel or building management system so that overtemperature alerts are actioned promptly. Electrical installation must be carried out by a qualified electrician in accordance with local wiring regulations. Input and output cable sizing should account for the full 300 kVA continuous rating with appropriate derating for ambient temperature and installation method.
