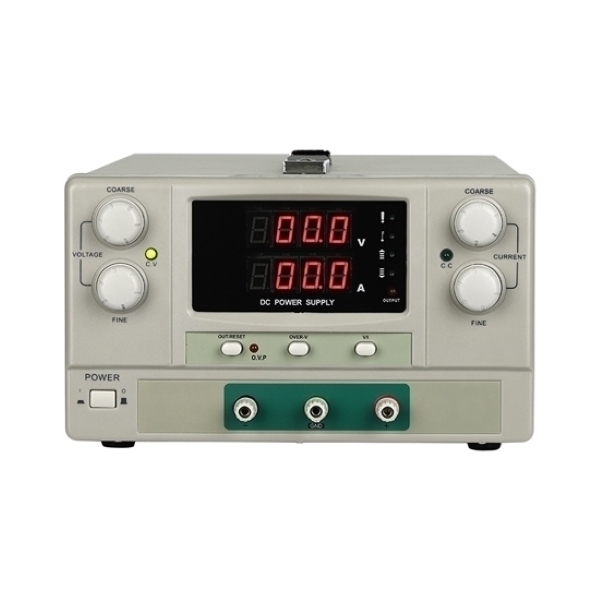

100V 10A Linear Regulated DC Power Supply, 1000W

SKU: PH-DCPS-10010

$958.29

● 1000W high‑power output with continuously adjustable 0–100V voltage and 0–10A current. ● Ultra‑low ripple noise of just 0.5mV, along with outstanding load and linear regulation. ● High energy conversion efficiency lowers power consumption and heat output, ensuring stable, reliable performance during long‑time full‑load operation. ● Ergonomic portable handle design for effortless transport and flexible use across multiple working scenarios.

Input Voltage *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Powerhome cost-effective linear regulated DC power supply delivers a reliable 1000W power output, equipped with a clear 3-digit LED display for intuitive monitoring. It offers finely adjustable output ranges from 0–100V and 0–10A, combining exceptional precision, ultra-low ripple, and stable low-noise performance to support demanding professional applications. Supporting dual 110V/220V AC (±10%) input compatibility and advanced digital control, this unit ensures superior accuracy and straightforward operation—an ideal, high-performance solution for both industrial and laboratory use at an economical price.

Feature

Smart CV/CC Auto Switching: Automatically switches between constant voltage and constant current modes, smoothly adapting to various load conditions for simpler, more reliable operation.
Wide-temperature Stability: Operates steadily from 0℃ to 40℃ with a high-quality temperature coefficient, ideal for demanding environments like laboratories and production lines.
Comprehensive Safety Protection: Integrated multiple protection circuits with a recovery time of ≤100μs, effectively safeguarding both the power supply and connected loads.

Details

Portable Design: Sturdy built-in handle for easy transport between workstations, perfect for on-site testing and field maintenance.
Precise Dual-range Adjustment: Coarse and fine dual control knobs allow fast selection and precise tuning down to millivolt-level accuracy.
Clear LED Display: High-brightness LED shows real-time voltage and current clearly, ensuring easy reading in any lighting condition.

100V 10A Linear DC Power Supply Structure

100V 10A Linear Adjustable DC Power Supply Structure

Specs

Model	PH-JK10010S
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	DC 0-100V
Output Current Range	0-10A
Output Power	1000W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	100mV
Current Display Resolution	10mA
Efficiency	>65%
Voltage Regulation
Load Regulation (CV)	1×10^-5+8mV
Line Regulation (CV)	1×10^-5+3mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-5+3mA
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm
Weight	12kg

Application

Electrochemical Experiment

Automotive Motor

Electronic Component Testing

Display Screen and Electronic Device

FAQ

Q1: Can I use a variable linear DC power supply for sensitive electronic components?

Yes, a linear regulated DC power supply is highly suitable for sensitive electronic components. It delivers stable, low-noise output with excellent voltage precision, making it ideal for noise-sensitive devices. Its adjustable output lets you match the exact voltage needs of your components, while built-in safety features such as short-circuit protection help prevent damage. Just be mindful that linear designs may produce more heat, and always confirm the voltage and current ratings match your component requirements for safe and reliable operation.

Q2: Can I use this power supply for laboratory testing and repair work?

Yes, this linear regulated DC power supply is perfectly suited for laboratory testing and electronic repair work. It provides stable, low‑ripple output and precise adjustable voltage and current, making it ideal for testing circuits, diagnosing faults, and powering a wide range of electronic devices safely and accurately.
