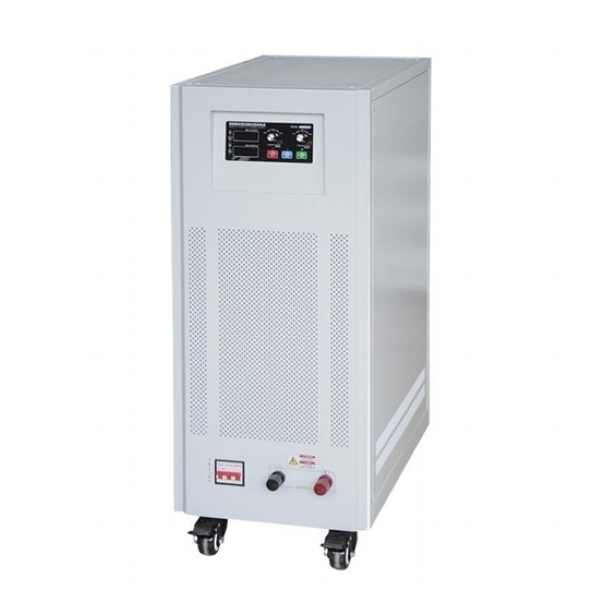

    Picture of 60V 100A Linear Regulated DC Power Supply, 6000W

    60V 100A Linear Regulated DC Power Supply, 6000W

    0 review(s) | Add your review
    SKU: PH-DCPS-60100
    $5,298.99
    ● Delivers adjustable 0–60V DC up to 100A, boasting 6000W of high power for demanding applications. ● Features overcurrent and overvoltage safeguards, guaranteeing secure and reliable operation at all times. ● Equipped with a clear digital display for intuitive parameter setting and real-time monitoring, ensuring precise and effortless control. ● Supports broad-range AC input, adapting seamlessly to various global power grid standards for universal usability.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    60V 10A Linear Regulated DC Power Supply, 600W

    ● 0–60V DC voltage, 0–10A current output, maximum 600W power, meeting diverse power supply needs in laboratory and industrial scenarios. ● Efficiency >65%, recovery time ≤100μs, enabling stable long-term operation. ● Multiple input voltages available, adapting to power grid environments across different regions worldwide. ● Equipped with overcurrent, overvoltage and other safety protections, ensuring efficient and reliable performance.
    $672.59

    60V 20A Linear Regulated DC Power Supply, 1200W

    ● 0–60V voltage and 0–20A current are continuously adjustable, satisfying precise power supply demands across various applications. ● Linear regulation structure ensures ripple noise as low as 0.5mV, delivering outstanding load and line regulation performance. ● Compatible with multiple input voltages, suitable for power grid systems in different regions around the globe. ● Supports automatic CV/CC mode switching, adapting to diverse load conditions with no manual operation required.
    $942.39

    60V 30A Linear Regulated DC Power Supply, 1800W

    ● 60V/30A continuously adjustable output delivers versatile power for diverse devices. ● Over 60% energy conversion efficiency reduces loss and heat for reliable full-load operation. ● 0.5mV ultra-low noise ensures clean, stable power for sensitive applications. ● Ergonomic carry handle enables quick, easy relocation between workspaces.
    $1,676.39
    Picture of 60V 50A Linear Regulated DC Power Supply, 3000W

    60V 50A Linear Regulated DC Power Supply, 3000W

    ● Featuring a continuously adjustable output of 0–60V and 0–50A. ● Built-in overcurrent and overvoltage protection delivers rapid response. ● Digital display offers a clear, intuitive interface, allowing operators to set and monitor critical parameters with precision and ease. ● Supports a wide AC input range of 110V/220V ±10%, ensuring stable and reliable operation across global power grid environments.
    $3,168.59
    Overview

    This linear regulated DC power supply integrates a large transformer for optimized AC-to-DC voltage conversion, boasting a universal 220V/240V input, a clear 3-digit LED display, and robust 6000W output capability with 0–60V voltage and 0–100A current adjustability; it supports both digital and analog control via external systems, delivering the high stability and flexible operation critical for demanding industrial testing and heavy-duty power applications.

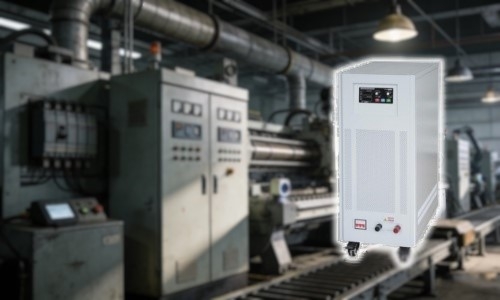

    60V 100A Linear Regulated DC Power Supply Feature

    Feature

    • Powerful Industrial Output: Using a hybrid linear‑switching design, it provides up to 6000W output to support heavy‑duty industrial use.
    • Stable Dual-mode Output: High-precision CV and CC modes deliver steady, reliable power for demanding applications.
    • High Efficiency & Low Consumption: Boasting over 65% efficiency, it cuts energy use for economical, eco-friendly long‑term operation.


    Details

    • Efficient Cooling & Flexible Movement: Large louvered vents provide effective heat dissipation, and universal casters support easy relocation.
    • High-definition Digital Metering: Three-digit digital display accurately indicates voltage and current with 100mV/100mA resolution.
    • User-friendly Control & Operation: Dual independent knobs for voltage and current tuning, enabling simple and reliable operation in diverse test scenarios.
    30V 200A Linear Adjustable DC Power Supply Details
    Specs
    Model PH-JK60100S
    Input Voltage 220V or 240V AC (+/- 10%)
    Output Voltage Range 0-60V
    Output Current Range 0-100A
    Output Power 6000W
    Frequency 50Hz/60Hz
    Output Type Dual
    Display 3 digit
    Display Accuracy ≤ ±0.1%＋2d
    Voltage Display Resolution 100mV
    Current Display Resolution 100mA
    Efficiency >65%
    Voltage Regulation
    Load Regulation (CV) 1×10-5+8mV
    Line Regulation (CV) 1×10-5+3mV
    Ripple & Noise (P-P) 0.5mV
    Temperature Coefficient 300PPｍ/℃
    Current Regulation
    Load Regulation (CC) ≤5mA
    Line Regulation (CC) 2×10-5+3mV
    Temperature Coefficient 500PPｍ/℃
    Others
    Protection Over Load and Over Voltage Protection
    Recovery Time ≤100µs
    Operating Ambient 0℃ to + 40℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Warranty 12 Months
    Size 480 (W) x 520 (H) x 700 (D) mm
    Weight 200kg
    Package List 1 x DC Power Supply Host, 1 x User Manual
    Application
    Electrochemical Experiment

    Electrochemical Experiment

    Automotive Motor

    Automotive Motor

    Electronic Component Testing

    Electronic Component Testing

    Display Screen and Electronic Device

    Display Screen and Electronic Device

    FAQ

    Q1: What is a linear regulated DC power supply?

    A linear regulated DC power supply is a high-precision, stable DC power supply with continuously adjustable voltage and current, automatic constant-voltage/constant-current switching, comprehensive protection, and flexible series/parallel expansion for versatile use.

    Q2: Can voltage and current be adjusted?

    Yes, the output voltage and current of a linear regulated DC power supply can be adjusted continuously and smoothly from 0V up to the rated voltage and within the rated current range, and you can also freely set the current limit protection point according to your actual application needs.
