    Picture of 60V 30A Linear Adjustable DC Power Supply, 1800W
    Picture of 60V 30A Linear Adjustable DC Power Supply, 1800W
    Picture of 60V 30A Linear Adjustable DC Power Supply, 1800W

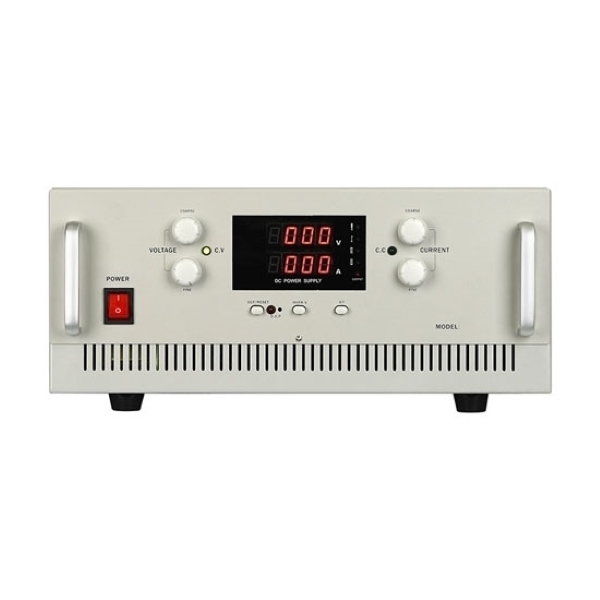

    60V 30A Linear Adjustable DC Power Supply, 1800W

    0 review(s) | Add your review
    SKU: PH-DCPS-6030
    $1,676.39
    ● 60V/30A continuously adjustable output delivers versatile power for diverse devices. ● Over 60% energy conversion efficiency reduces loss and heat for reliable full-load operation. ● 0.5mV ultra-low noise ensures clean, stable power for sensitive applications. ● Ergonomic carry handle enables quick, easy relocation between workspaces.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    60V 10A Linear Adjustable DC Power Supply, 600W

    ● 0–60V DC voltage, 0–10A current output, maximum 600W power, meeting diverse power supply needs in laboratory and industrial scenarios. ● Efficiency >65%, recovery time ≤100μs, enabling stable long-term operation. ● Multiple input voltages available, adapting to power grid environments across different regions worldwide. ● Equipped with overcurrent, overvoltage and other safety protections, ensuring efficient and reliable performance.
    $672.59

    60V 20A Linear Adjustable DC Power Supply, 1200W

    ● 0–60V voltage and 0–20A current are continuously adjustable, satisfying precise power supply demands across various applications. ● Linear regulation structure ensures ripple noise as low as 0.5mV, delivering outstanding load and line regulation performance. ● Compatible with multiple input voltages, suitable for power grid systems in different regions around the globe. ● Supports automatic CV/CC mode switching, adapting to diverse load conditions with no manual operation required.
    $942.39
    Picture of 60V 50A Linear Adjustable DC Power Supply, 3000W

    60V 50A Linear Adjustable DC Power Supply, 3000W

    ● Featuring a continuously adjustable output of 0–60V and 0–50A. ● Built-in overcurrent and overvoltage protection delivers rapid response. ● Digital display offers a clear, intuitive interface, allowing operators to set and monitor critical parameters with precision and ease. ● Supports a wide AC input range of 110V/220V ±10%, ensuring stable and reliable operation across global power grid environments.
    $3,168.59
    Picture of 60V 100A Linear Adjustable DC Power Supply, 6000W

    60V 100A Linear Adjustable DC Power Supply, 6000W

    ● Delivers adjustable 0–60V DC up to 100A, boasting 6000W of high power for demanding applications. ● Features overcurrent and overvoltage safeguards, guaranteeing secure and reliable operation at all times. ● Equipped with a clear digital display for intuitive parameter setting and real-time monitoring, ensuring precise and effortless control. ● Supports broad-range AC input, adapting seamlessly to various global power grid standards for universal usability.
    $5,298.99

    60V 3A Linear Adjustable DC Power Supply, 180W

    ● 0–60V DC voltage, 0–3A current output, maximum 180W power, meeting the diverse power supply needs of laboratory and industrial scenarios. ● Built-in overcurrent and overvoltage protection functions, which respond quickly in abnormal situations. ● Supports automatic switching between constant voltage / constant current modes without manual intervention, adapting to different load characteristics. ● Load regulation rate ≤5mA, linear regulation rate 3×10⁻¹+3mA, meeting application scenarios with strict requirements on current accuracy.
    $291.49

    60V 5A Linear Adjustable DC Power Supply, 300W

    ● 60V DC voltage and 5A current output provide a maximum power of 300W, meeting diverse power supply needs. ● Supports automatic switching between constant voltage/constant current modes without manual intervention, adapting to different load characteristics. ● Conversion efficiency is higher than 65% and built-in overcurrent and overvoltage protection functions ensure safety and efficiency. ● Equipped with clear indicator lights and a digital display, along with a user-friendly knob design for easy operation.
    $265.86
    Overview

    This linear adjustable DC power supply features a 1800W DC output and variable switching mode, covering an adjustable current range of 0 to 30A and a voltage range of 0 to 60V, with 110V/220V±10% AC input compatibility. It delivers high efficiency alongside precise constant voltage (CV) and constant current (CC) output performance, and its integrated digital control functionality further elevates parameter setting accuracy and operational ease for users.

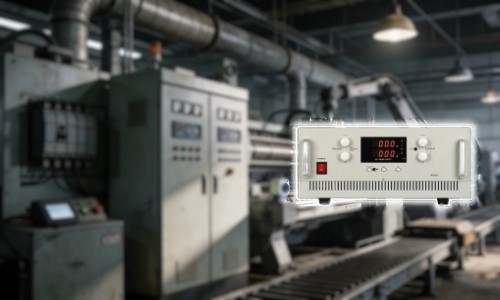

    Linear Adjustable DC Power Supply Features

    Feature

    • Full-spectrum Safety Protection: Equipped with multi-level protective circuits featuring a response time of ≤100μs, delivering reliable security for both the power supply and connected loads.
    • Wide-range Environmental Stability: Ensures consistent and reliable performance across an operating temperature range of 0°C to 40°C with an excellent temperature coefficient, ideal for laboratories, production lines, and challenging working conditions.
    • Intelligent Dual-mode Control: Automatically switches between constant voltage and constant current modes according to the actual load, providing smooth and adaptive power output.

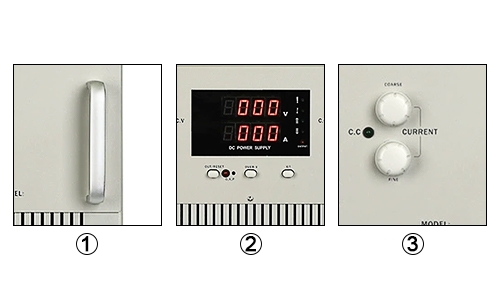

    Details

    1. Compact & Portable: Sturdy built-in handle enables easy transport between workstations, perfect for on-site maintenance and field applications.
    2. Dual Precision Adjustment: Coarse tuning knobs for quick range selection, combined with millivolt-scale fine-tuning for highly accurate output control.
    3. High-visibility Display: Bright LED screen delivers clear real-time voltage and current readings, easily viewable under all lighting conditions, whether bright or dim.
    60V 30A Linear Adjustable DC Power Supply Detail

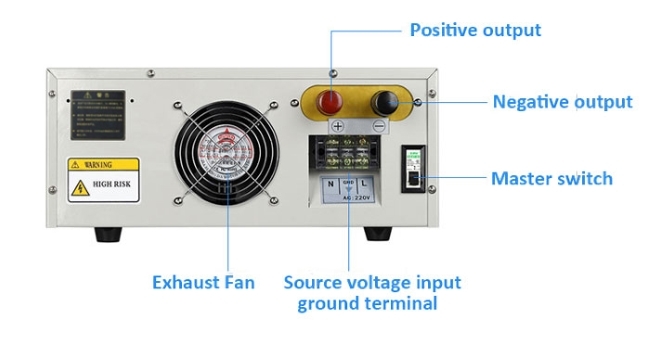

    60V 30A Linear DC Power Supply Structure

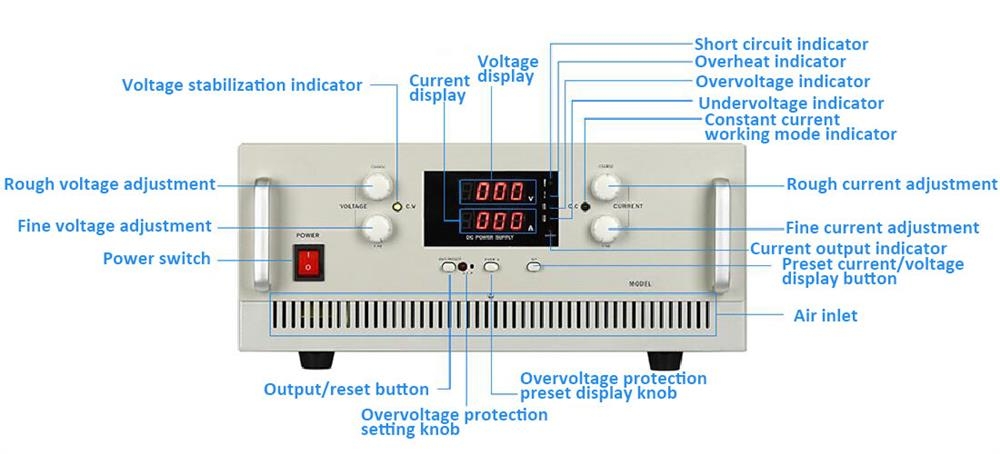

    60V 30A Linear Adjustable DC Power Supply Structure

    60V 30A Linear Adjustable DC Power Supply Structure

    Specs
    Model PH-JK6030S
    Input Voltage 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-60V
    Output Current Range 0-30A
    Output Power 1800W
    Frequency 50Hz/60Hz
    Output Type Dual
    Display 3 digit
    Display Accuracy ≤ ±0.4%＋3d
    Voltage Display Resolution 100mV
    Current Display Resolution 10mA
    Efficiency >60%
    Voltage Regulation
    Load Regulation (CV) 1×10-5+8mV
    Line Regulation (CV) 1×10-5+3mV
    Ripple & Noise (P-P) 0.8mV
    Temperature Coefficient 300PPｍ/℃
    Current Regulation
    Load Regulation (CC) ≤5mA
    Line Regulation (CC) 2×10-5+3mV
    Temperature Coefficient 500PPｍ/℃
    Others
    Protection Over Load and Over Voltage Protection
    Operating Ambient 0℃ to + 40℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Certification CE, RoSH
    Warranty 12 Months
    Size 530 (W) x 430 (H) x 200 (D) mm
    Weight 40kg
    Package List 1 x DC Power Supply Host, 1 x Output Power Cord, 1 x User Manual
    Application
    Electronic Component Testing

    Electronic Component Testing

    Base Station

    Base Station

    Automotive Electronics Testing

    Medical Testing Instruments

    Chip Testing

    Chip Testing

    FAQ

    Q1: How to choose the right voltage and current rating?

    Select a model whose maximum voltage and current meet or slightly exceed your device’s operating requirements, leaving a safe margin to avoid overload and ensure stable performance.

    Q2: What safety features should I look for in linear regulated DC power supply?

    When selecting a linear regulated DC power supply, key safety features to prioritize include overcurrent protection to guard against excessive current, overvoltage protection to shield sensitive equipment from voltage spikes, short-circuit protection to prevent damage from load faults, and thermal protection to automatically shut down the unit in case of overheating. A durable enclosure, reliable grounding, and clear labeling further enhance safe operation, protecting both the user and connected devices while extending the power supply’s service life.
