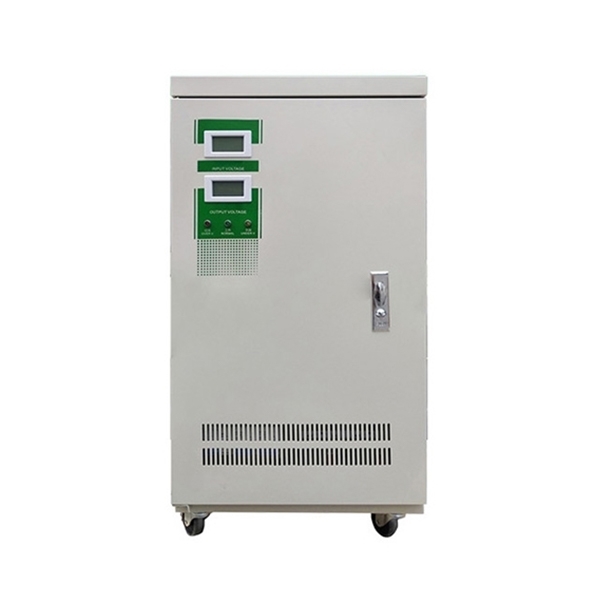

12 kVA Automatic Voltage Stabilizer, Single Phase, 110V~240V

SKU: PH-AVS-1P12K
$1,503.50
●12 kVA single-phase automatic voltage stabilizer with relay control for high-load home applications ● Wide input voltage range 95–125V / 190–250V AC, compatible with dual voltage systems ● High-precision output 110V ±3% or 220V ±3%, ensuring stable power supply ● LCD digital display with full protection indication, easy monitoring, and operation
*
*
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

This 12 kVA heavy-duty automatic voltage stabilizer is a high-capacity, single-phase relay-type stabilizer designed to protect household electrical equipment and light commercial voltage from unstable voltage conditions. It operates within a wide dual-input voltage range and delivers accurate, stabilized output power for demanding residential environments. Featuring programmed computerized control technology and an intuitive LCD, the stabilizer provides high efficiency, reliable performance, and clear real-time status monitoring. It is an ideal voltage regulation solution for homes with multiple high-power appliances or frequent voltage fluctuations.

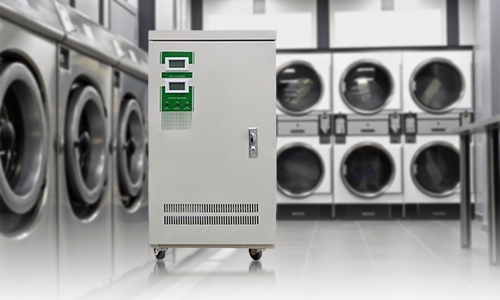

12 kva automatic voltage stabilizer feature

Feature

  • 12 kVA Single-Phase Relay Control Stabilizer: Designed for high-capacity residential applications, offering stable and reliable voltage regulation.
  • Wide & Customizable Input Voltage Range: Supports 95–125V or 190–250V AC input, with customized voltage ranges available upon request.
  • High Output Voltage Accuracy: Provides 110V ±3% or 220V ±3% output, effectively protecting connected equipment from voltage instability.
  • Comprehensive Protection Functions: Built-in over-voltage, under-voltage, overload, over-temperature, and short-circuit protection for enhanced safety.
  • LCD Digital Display with Full Status Indication: Clearly displays input voltage, output voltage, load level, internal temperature, and fault conditions for intuitive operation.

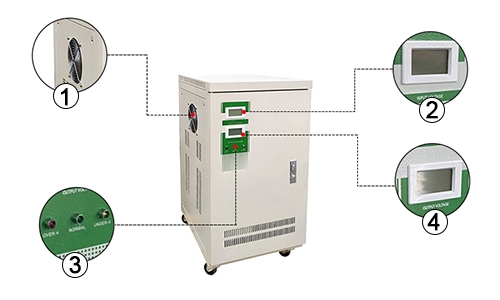

Details

  1. Cooling fan port
  2. Input voltage display
  3. Operating condition indicator
  4. Output voltage display
12 kva automatic voltage stabilizer details
Specs
Capacity 12 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase Single Phase
Input Voltage Range ±15% tolerance of output voltage
Output Voltage* 220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time <1sec. (Against 10% input voltage deviation)
Frequency 50Hz/60Hz
Current Type AC
Protection Over Voltage <246±4V
Temperature Rise <60°C
Ambient Temperature -10°C~+40°C
Insulation Resistance ≥5MΩ
Temperature Protection 110℃±10℃
Relative Humidity <95%
Wave Form Distortion No additional waveform distortion
Load Power Factor 0.8
Efficiency ≥90%
Display LCD
Protection Grade IP20
Dielectric Strength 1500V/min
Certification CE
Warranty Period 12 months
Weight 65 Kg
Size 350*300*450mm



Note: The provided 12 kVA voltage stabilizer is 1-phase (L, N, G) by Europe standard. We can customize the split phase (L1, L2 + G) like the USA standard, just confirm with us by email after ordering.

Application
Single-phase automatic voltage stabilizer for office equipment

Office Equipment

Single-phase automatic voltage stabilizer for smart refrigerators

Smart Refrigerators

Single-phase automatic voltage stabilizer for kitchen appliances

Kitchen Appliances

Single-phase automatic voltage stabilizer for washing machines

Washing Machines

FAQ

Q1: Is a 12 kVA stabilizer necessary for a typical home?

A 12 kVA stabilizer is typically recommended for larger homes (e.g., villas, houses with extensive square footage), properties with multiple high-power appliances (like several large air conditioners), or settings that combine residential and light commercial loads (e.g., a home with a workshop or office). For a standard-sized home with average appliance usage, an 8kVA or 10kVA model may suffice. A simple calculation is to sum the wattage of all devices you intend to protect and run concurrently, then add a 30-50% safety margin.

Q2: How does the "Programmed Control Computerized" technology benefit me?

This advanced control technology means the stabilizer is managed by an intelligent microprocessor. The benefits for you include:

  • Faster Response: It detects and corrects voltage changes more swiftly than older mechanical systems.
  • Higher Accuracy: Maintains output voltage within the tight ±3% tolerance more consistently.
  • Improved Reliability: Smart algorithms optimize performance and can help prevent unnecessary wear on internal components.
  • Enhanced Features: Enables sophisticated functions like the detailed LCD and precise protection thresholds.

Q3: Can I customize the input or output voltage of this stabilizer?

Yes, customization is a key feature of this series. While it standardly supports the two most common global voltage ranges (95-125V and 190-250V AC input, with 110V/220V output), the manufacturer can often customize the unit to meet specific voltage requirements. This is particularly useful for regions with unique grid standards or for protecting specialized equipment. You would need to contact customer service or specify your requirements during the ordering process.
