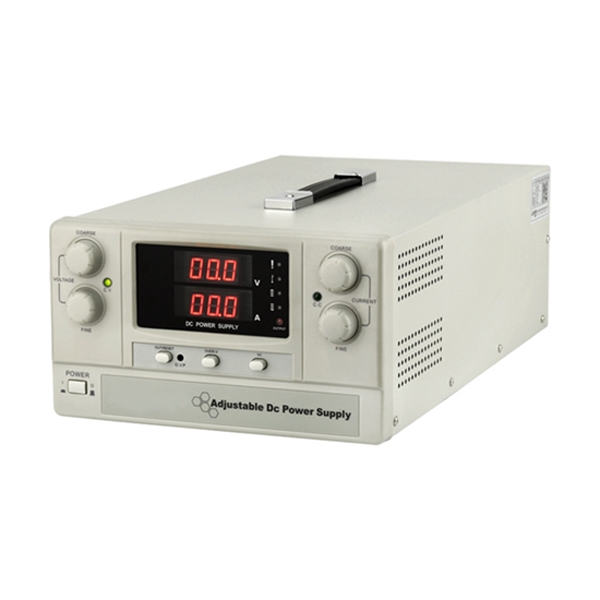

    Picture of 0-12V 150A Variable DC Power Supply
    Picture of 0-12V 150A Variable DC Power Supply
    Picture of 0-12V 150A Variable DC Power Supply

    0-12V 150A Variable DC Power Supply

    0 review(s) | Add your review
    SKU: PH-VDCPS-12V150
    $953.54
    ● Output voltage and current can be continuously adjusted within the range of 0 to 12 volt and 0 to 150A. ● Features automatic switching between regulated CV and regulated CC operating modes. ● Built-in overvoltage protection circuit, overheat protection circuit, and short-circuit protection. ● Widely used in factories, schools, research institutes, and laboratories.
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    0-30V 5A/10A Variable DC Power Supply

    ● Variable regulated DC power supply supports continuous adjustment of output voltage from 0–30 volt and output current from 0–5 amp or 0–10 amp. ● Combines a 4-digit digital display and continuously adjustable output to provide ultra-low ripple and low noise, resulting in a clean and stable power supply. ● Built with over-voltage, over-current and short-circuit protection, and designed for constant voltage with current limiting.
    $313.56

    0-30V 20/30A Variable DC Power Supply

    ● Digital adjustable DC power supply is continuously adjustable within the range of 0 to 30 volt output voltage and 0-20A/30A output current. ● Provides overvoltage protection, overtemperature protection, output lockout, surge protection, and a 4-digit LED voltage and current display. ● Suitable for experimental current testing, aging tests, electronic repair, and DIY projects.
    $528.46

    0-30V 50A Variable DC Power Supply

    ● The voltage and current adjustable DC power supply allows continuous adjustment from 0–30V and 0–50A output range. ● Features overvoltage, overtemperature, output lock, and surge protection, along with a 4-digit LED display for voltage and current. ● Ideal for experimental current testing, aging tests, electronic repair, and DIY projects.
    $1,276.31

    0-15V 100A/200A/300A Variable DC Power Supply

    ● Output voltage and current are continuously adjustable from 0 to 15 volt and 0 to 100/200/300A. ● Automatically switches between constant voltage (CV) and constant current (CC) modes. ● Widely used in factories, schools, research institutes, and laboratories.
    $859.29

    0-24V 100A/150A/200A Variable DC Power Supply

    ● Provides continuously adjustable output voltage from 0 to 24 volt and current from 0 to 100/150/200 A. ● Supports automatic mode switching between constant voltage (CV) and constant current (CC). ● Built-in safety features include overvoltage, overheat, and short-circuit protection, suitable for lab and electronics.
    $1,151.38

    0-30V 60A/100A/150A Variable DC Power Supply

    ● 0–30 volt 60A/100A/120A/150A variable DC power supply adopts advanced PWM control technology with high efficiency, compact size and energy saving. ● High accuracy, low ripple and fast response, supports automatic CV/CC mode switching for various loads. ● Built-in overvoltage, overtemperature and short circuit protection, can preset monitor parameters.
    $699.39
    Overview

    Low voltage 0 to 12 volt 150A variable DC power supply with digital control supports constant voltage and constant current modes and automatic CV/CC switching. It is a reliable and efficient power source for electronics experimentation and development, can continuously adjust from 0 to the rated value.

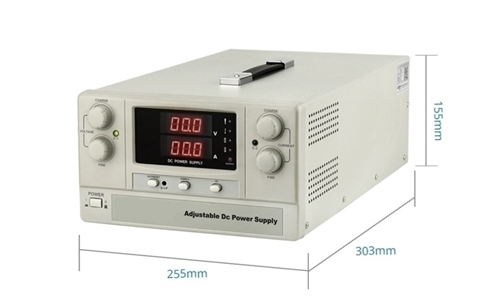

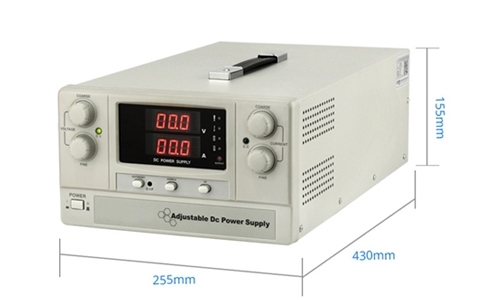

    12V variable DC power supply dimension

    Feature

    • Constant Voltage & Current Mode: Voltage and current values are continuously adjustable from 0-12 volt and 0-150 amp.
    • PWM Switch Control: Adopts PWM technology, offering lightweight, high efficiency, high precision and low ripple.
    • High Adaptability: 12V 150A adjustable DC power supply is suitable for resistive, capacitive and inductive loads with excellent performance.


    Details

    1. Convenient Operation: Automatic constant voltage/current switching, soft-start delay to avoid voltage overshoot, preset voltage/current output and contactless switch output.
    2. Overvoltage Protection: 0-120% rated voltage adjustable protection value; trips when output voltage exceeds the set value.
    3. Short Circuit Protection: PowerHome variable voltage and current DC power supply supports prolonged short circuits or short-circuit startup under any working condition.

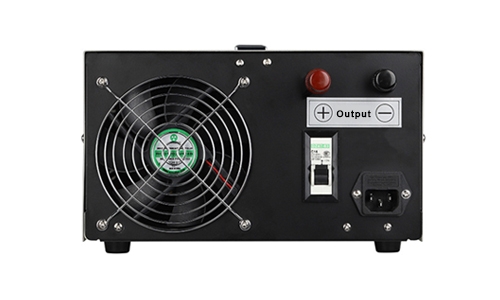

    Variable DC power supply details

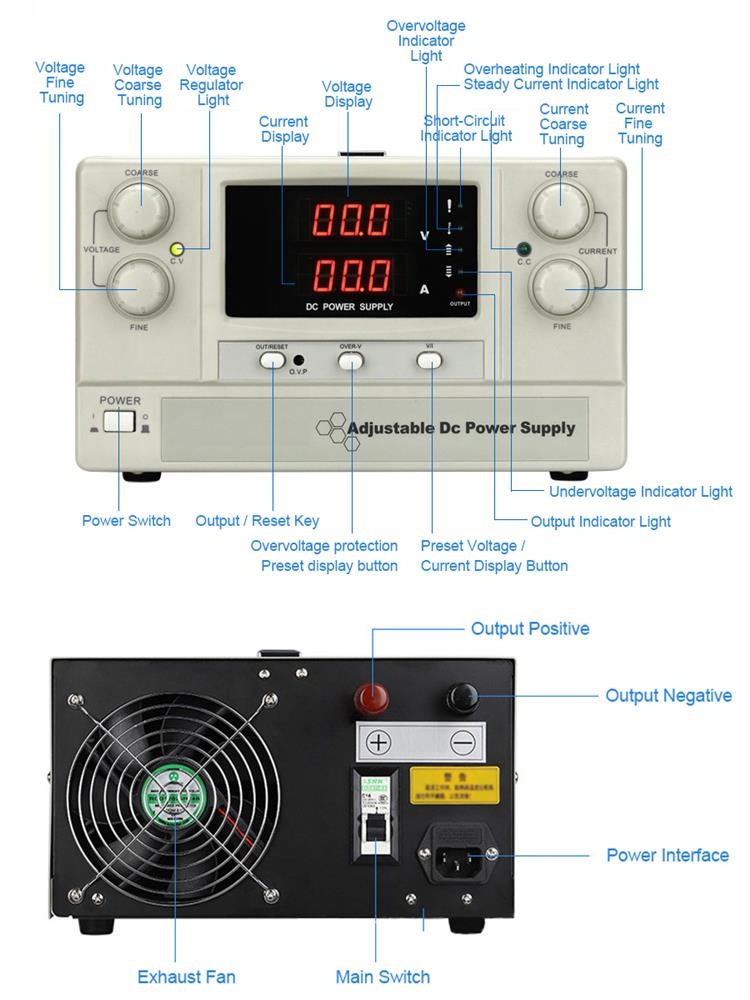

    12V 150A Adjustable DC Power Supply Panel

    Variable DC power supply panel details

    Specs
    Model PH-JK12150K
    Input Voltage Single Phase 220V AC (+/- 15%)
    Output Voltage Range 0-12V
    Output Current Range 0-150A
    Output Power 1800W
    Frequency 50Hz/60Hz
    Line Regulation ā‰¤0.3% + 10mV
    Load Regulation 0.3% + 30mV
    Ripple ā‰¤0.8% + 10mVrms
    3-Digit Digital Meter (Voltage) Accuracy: Ā±0.3%FS + 1 digit (10%ā€“100% Rated Value); Display Format: 00.00Vā€“12.0V
    3-Digit Digital Meter (Current) Accuracy: Ā±0.3%FS + 1 digit (10%ā€“100% Rated Value); Display Format: 00.0Aā€“150.0A
    Insulation Resistance Input-Output: ā‰„20MĪ©
    Input-Chassis: ā‰„20MĪ©
    Output-Chassis: ā‰„80MĪ©
    Dielectric Strength Input-Output: AC 1500V, 10mA, 1 minute
    Input-Chassis: AC 1500V, 10mA, 1 minute
    Output-Chassis: AC 1500V, 10mA, 1 minute
    Output Overvoltage Protection (OVP) Built-in O.V.P Protection, Protection Value: Rated Value + 5%
    Output Overcurrent Protection (OCP) Overload and Short-Circuit Constant Current Output
    Over Temperature Protection (OTP) Built-in O.T.P Protection, Protection Value: 85ā„ƒĀ±5ā„ƒĀ (Heat Sink Temperature)
    Voltage/Current Setting Potentiometer
    Output Polarity Output Positive (+) and Negative (āˆ’) Can be Grounded Arbitrarily
    Heat Dissipation Method Forced Air Cooling
    Operating Environment Indoor Use Design; Temperature: -10ā„ƒļ½ž40ā„ƒ; Humidity: 10%ļ½ž85% RH
    Storage Environment Temperature: -20ā„ƒļ½ž70ā„ƒ; Humidity: 10%ļ½ž90% RH
    Size and Weight 430mm (L) Ɨ 255mm (W) Ɨ 155mm (H)
    Weight 10kg
    Application

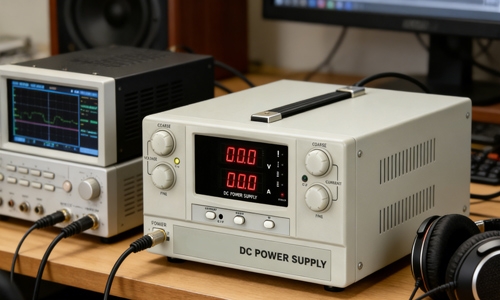

    Adjustable DC power supply for audio equipment testing

    Audio Equipment Testing

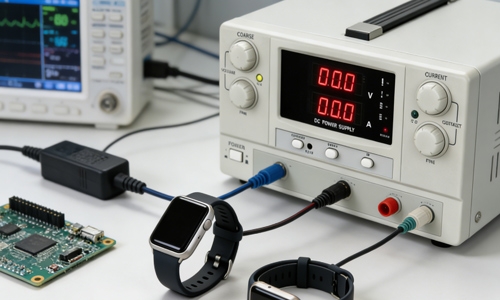

    Adjustable DC power supply for smart device r&d testing

    Smart Device R&D Testing

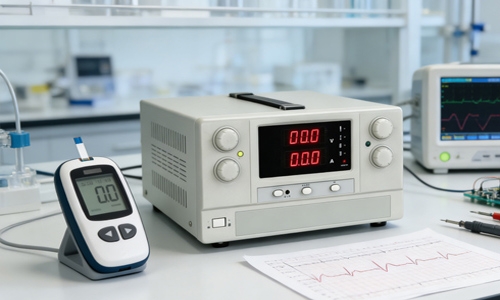

    Adjustable DC power supply for medical instrument debugging

    Medical Instrument Debugging

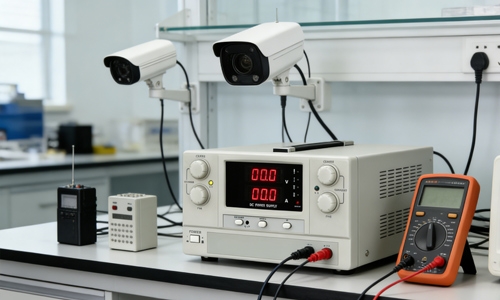

    Adjustable DC power supply for security monitoring equipment testing

    Security Monitoring Equipment Testing

    FAQ

    Q1: What are the main applications?

    This 0-12V 150A high-current power supply is widely used in automotive equipment, lithium battery packs, motor drives, high-power load testing, power supply aging, electroplating, etc. It features low voltage and high current for a stable and safe power supply.

    Q2: Tips for wiring and cooling high-current operation

    High-power operation at 12V/150A can cause significant heat and voltage drop due to line resistance. It is recommended to use short, thick copper wires or copper busbars and ensure tight connections to minimize contact resistance and heating. Adequate ventilation and optional forced air or water cooling are also necessary to prevent overheating during long-term full-load operation, ensuring stable and reliable performance for both the power supply and connected devices.
