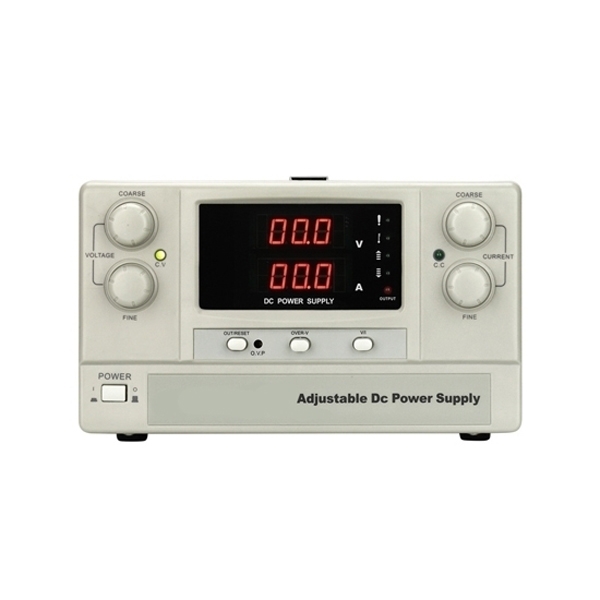

    Picture of 0-30V 60A/100A/150A Variable DC Power Supply
    Picture of 0-30V 60A/100A/150A Variable DC Power Supply
    Picture of 0-30V 60A/100A/150A Variable DC Power Supply

    0-30V 60A/100A/150A Variable DC Power Supply

    0 review(s) | Add your review
    SKU: PH-VDCPS-30V100
    $699.39
    ● 0–30 volt 60A/100A/120A/150A variable DC power supply adopts advanced PWM control technology with high efficiency, compact size and energy saving. ● High accuracy, low ripple and fast response, supports automatic CV/CC mode switching for various loads. ● Built-in overvoltage, overtemperature and short circuit protection, can preset monitor parameters.
    *
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    0-12V 150A Variable DC Power Supply

    ● Output voltage and current can be continuously adjusted within the range of 0 to 12 volt and 0 to 150A. ● Features automatic switching between regulated CV and regulated CC operating modes. ● Built-in overvoltage protection circuit, overheat protection circuit, and short-circuit protection. ● Widely used in factories, schools, research institutes, and laboratories.
    $953.54

    0-15V 100A/200A/300A Variable DC Power Supply

    ● Output voltage and current are continuously adjustable from 0 to 15 volt and 0 to 100/200/300A. ● Automatically switches between constant voltage (CV) and constant current (CC) modes. ● Widely used in factories, schools, research institutes, and laboratories.
    $859.29

    0-24V 100A/150A/200A Variable DC Power Supply

    ● Provides continuously adjustable output voltage from 0 to 24 volt and current from 0 to 100/150/200 A. ● Supports automatic mode switching between constant voltage (CV) and constant current (CC). ● Built-in safety features include overvoltage, overheat, and short-circuit protection, suitable for lab and electronics.
    $1,151.38

    0-30V 5A/10A Variable DC Power Supply

    ● Variable regulated DC power supply supports continuous adjustment of output voltage from 0–30 volt and output current from 0–5 amp or 0–10 amp. ● Combines a 4-digit digital display and continuously adjustable output to provide ultra-low ripple and low noise, resulting in a clean and stable power supply. ● Built with over-voltage, over-current and short-circuit protection, and designed for constant voltage with current limiting.
    $313.56

    0-30V 20/30A Variable DC Power Supply

    ● Digital adjustable DC power supply is continuously adjustable within the range of 0 to 30 volt output voltage and 0-20A/30A output current. ● Provides overvoltage protection, overtemperature protection, output lockout, surge protection, and a 4-digit LED voltage and current display. ● Suitable for experimental current testing, aging tests, electronic repair, and DIY projects.
    $528.46

    0-30V 50A Variable DC Power Supply

    ● The voltage and current adjustable DC power supply allows continuous adjustment from 0–30V and 0–50A output range. ● Features overvoltage, overtemperature, output lock, and surge protection, along with a 4-digit LED display for voltage and current. ● Ideal for experimental current testing, aging tests, electronic repair, and DIY projects.
    $1,276.31
    Overview

    PowerHome variable regulated DC power supply provides stable output with 0ā€“30V voltage and 0ā€“60/100/120/150 amp current, supports single-phase 110V/220V input and includes overvoltage and overcurrent protection, specially suitable for high-power testing and industrial applications.

    Variable DC power supply dimension

    Feature

    • Constant Voltage & Current Mode: Voltage and current values are continuously adjustable from 0-30 volt and 60 amp/100 amp/120 amp/150 amp.
    • PWM Switch Control: Adopts PWM technology, offering lightweight, high efficiency, high precision and low ripple.
    • High Adaptability: The adjustable digital DC power supply is suitable for resistive, capacitive and inductive loads with excellent performance.


    Details

    1. Convenient Operation: Automatic constant voltage/current switching, soft-start delay to avoid voltage overshoot, preset voltage/current output and contactless switch output.
    2. Overvoltage Protection: 0-120% rated voltage adjustable protection value; trips when output voltage exceeds the set value.
    3. Short Circuit Protection: PowerHome regulated variable DC power supply supports prolonged short circuits or short-circuit startup under any working condition.
    Variable DC power supply details

    30V 60A/100A/150A Adjustable DC Power Supply Panel

    Variable DC power supply panel details

    Specs
    Model PH-JK3060K PH-JK30100K PH-JK30120K PH-JK30150K
    Input Voltage Single Phase 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-30V
    Output Current Range 0-60A 0-100A 0-120A 0-150A
    Output Power 1800W 3000W 3600W 4500W
    Frequency 50Hz/60Hz
    Adjustable Mode Pulse Width Modulation (PWM) Type
    Transistor Connection Method Full Bridge
    Output Type Dual
    Display 3 digit
    Display Accuracy Output Voltage Ā±0.5%, Output Current Ā±0.5%
    Efficiency >86%
    Load Regulation (CV) Stable Voltage ā‰¤0.5%, Constant Current ā‰¤0.5%
    Line Regulation (CV) Stable Voltage ā‰¤0.5%
    Ripple Voltage ā‰¤1%
    Insulation Resistance Input-Output: ā‰„20MĪ©
    Input-Chassis: ā‰„20MĪ©
    Output-Chassis:ā‰„80MĪ©
    Dielectric Strength Input-Output: AC 1500V, 10mA, 1 minute
    Input-Chassis: AC 1500V, 10mA, 1 minute
    Output-Chassis: AC 1500V, 10mA, 1 minute
    Protection Over Load and Over Voltage Protection
    Current Imbalance ā‰¤5% + 0.5A
    Operating Ambient -10ā„ƒ to + 45ā„ƒ/ 85%RH
    Storage Ambient -20ā„ƒ to + 70ā„ƒ/ 80%RH
    Overheat Protection Ambient Threshold 70ā„ƒ to 80ā„ƒ
    Mean Time Between Failures ā‰„50000h
    Cooling Duct Internal Cooling Air Duct Forward and Exit
    Certification CE
    Warranty 12 Months
    Size 303 (L) x 255 (W) x 155 (H) mm
    Weight 12kg 13kg 13kg 13kg
    Application
    Adjustable DC power supply for audio equipment testing

    Audio Equipment Testing

    Adjustable DC power supply for smart device r&d testing

    Smart Device R&D Testing

    Adjustable DC power supply for medical instrument debugging

    Medical Instrument Debugging

    Adjustable DC power supply for security monitoring equipment testing

    Security Monitoring Equipment Testing

    FAQ

    Q1: Why is the 0ā€“30V model a popular choice for laboratory and development testing?

    0ā€“30V is one of the most commonly used voltage ranges in electronic laboratories, covering most small and medium-powered electronic circuits, power module testing, component characterization, and general bench-top experiments. This adjustable power supply offers precise voltage and current control, making it suitable for research, development, and routine production testing.

    Q2: How does the current rating affect heat management and system stability?

    Higher current ratings generate more heat. The 60A, 100A, 120A and 150A models are designed with enhanced heat dissipation structures. Choosing an appropriately rated current ensures that the power supply operates within a safe temperature range, preventing overheating shutdown and maintaining long-term stability during continuous testing or operation.
