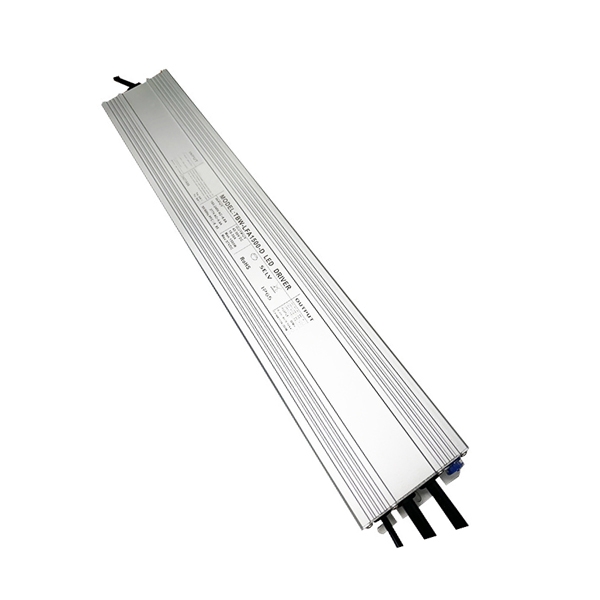

1500W Constant Current LED Driver

Feature

• 3 in 1 Dimming (0–10V / PWM / Resistor): High power 1500 watt dimmable LED driver is compatible with multiple mainstream dimming methods, offering strong adaptability and stable and reliable dimming.
• 3 in 1 Dimming + 12V / 300mA Auxiliary Power Supply: Built-in 12V auxiliary power supply can power external control or dimming devices, simplifying system configuration.
• Knob Dimming + (RJ11 Ethernet Port): Supports local knob dimming and can be connected to an external control system via the RJ11 interface.

1. The constant current LED driver provides a stable current, ensuring uniform brightness of the LED chips and extending their lifespan.
2. It features multiple protections against overload, short circuit, overvoltage, overtemperature, and overcurrent, effectively ensuring the safe and stable operation of both the power supply and the LEDs.
3. Efficiency 96%, flicker-free output, effectively reducing energy consumption and providing a stable and comfortable lighting experience.
4. 1500W LED power supply offers UL/CE/CCC/FCC certifications and an IP65/67 waterproof rating, suitable for long-term outdoor and humid environments.

1500W Constant Current LED Driver Size (Unit: mm)

Application

Plant Lighting

Horticulture Lighting

LED Stadium Lighting

Fishing Lamp

Q1: Why is the output voltage of a constant current LED driver a range?

Unlike constant voltage drivers, the output voltage of a constant current LED driver is usually labeled as a range. This is because the power supply automatically adjusts the voltage based on the number of connected LEDs and their voltage drop. As long as the total voltage across the LEDs in series falls within this range, the power supply can stably output the set current, thereby improving system flexibility and compatibility.

Q2: What happens during overcurrent or short circuit?

Most constant current LED power supplies have built-in overcurrent, short circuit, and overtemperature protection functions. When the system detects an abnormal condition, the power supply will automatically limit the current, shut down the output, or enter a protection state. These protection mechanisms effectively prevent the fault from escalating and improve the overall safety of the lighting system.
