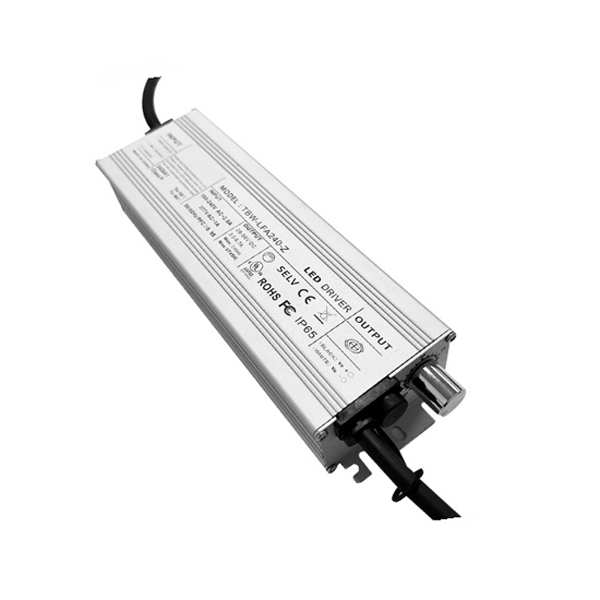

240W Constant Current LED Driver

SKU: PH-CCLD-240

$103.08

● 240 watt dimmable constant current LED driver with efficiency of up to 92.5%. ● UL, CE, CCC, and FCC standards, with IP65/IP67 waterproof rating and 3 dimming options. ● Suitable for applications including plant grow lights, street lights, stadium lights, fish-attracting lights, and therapeutic lighting.

Dimming Method *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Buy a 240W constant current LED power supply for plant growing. High efficiency LED driver transformer provides 3 different dimmable methods and 28-56V wide voltage range, allowing you to adjust the light intensity and customize the lighting environment according to various plant needs.

Feature

3 in 1 Dimming (0–10V / PWM / Resistor): 240W dimmable LED driver is compatible with multiple mainstream dimming methods, offering strong adaptability and stable and reliable dimming.
3 in 1 Dimming + 12V / 300mA Auxiliary Power Supply: Built-in 12V auxiliary power supply can power external control or dimming devices, simplifying system configuration.
Knob Dimming + (RJ11 Ethernet Port): Supports local knob dimming and can be connected to an external control system via the RJ11 interface.

Details

240W constant current LED driver provides a stable current, ensuring uniform brightness of the LED chips and extending their lifespan.
It features multiple protections against overload, short circuit, overvoltage, overtemperature, and overcurrent, effectively ensuring the safe and stable operation of both the power supply and the LEDs.
Efficiency 92.5%, flicker-free output, effectively reducing energy consumption and providing a stable and comfortable lighting experience.
The LED driver power supply offers UL/CE/CCC/FCC certifications and an IP65/67 waterproof rating, suitable for long-term outdoor and humid environments.

240W Constant Current LED Driver Size (Unit: mm)

100W constant current LED driver size

L1	L2	L3	W1	W2	H
246	230	223	67	34	40

Specs

Output Voltage	28-56V
Output Current	3.5-6.7A
Output Power	240W
Effciency	92.5%
Power Factor	0.95
Input Voltage	100-277V AC
Lightning Protection	6kV/10kV
Function Options	Aux Power 12V/0.3A
Dimming Method	(Default) Knob Dimming + (RJ11 Ethernet Port)
	3-in-1 Dimming (0-10V/PWM/Resistor)
	3-in-1 Dimming + 12V/300mA Auxiliary Source
Output Frequency	50/60Hz
Certificated	UL/CE/CCC/FCC
Application	LED Lighting (Especially for Plant Grow Lights)
Waterproof Grade	IP65/IP67
Protection	Over-Heat, Over-Load, Short-Circuit & Open-Circuit
Test	100% Full Load Burn-in Test Over 4 Hours
Work Temperature	-40℃~+50℃
Storage Temperature	-40℃~+90℃
Relative Operation Humidity	10%RH~90%RH
Relative Operation Humidity	10%RH~90%RH
Shell Material	Aluminum

Application

Plant Lighting

Horticulture Lighting

LED Stadium Lighting

Fishing Lamp

FAQ

Q1: Difference between LED power supply and ordinary switching power supply

LED power supplies and ordinary switching power supplies differ significantly in design philosophy and application scenarios. Ordinary switching power supplies are mainly used to power electronic devices, focusing more on basic voltage output, while LED power supplies are optimized for LED load characteristics, emphasizing current stability, long-term continuous operation capability, and lighting-specific protection functions. In practical applications, ordinary power supplies may cause LED flickering or shortened lifespan when the load changes or mains power fluctuates, while dedicated LED power supplies can effectively improve system stability.

Q2: What issues should be considered when installing a 240W constant current driver?

When installing a 240W constant current LED driver, ensure good ventilation and heat dissipation space, and avoid placing it in close contact with high-temperature surfaces. Also, ensure the wiring polarity is correct, and avoid operating the output terminal under no-load or overload conditions to ensure long-term stable operation of the driver.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Matteo | Date: 8/28/2026 1:43 AM

Reliable 240W LED Driver

I’ve been using this 240W constant-current LED driver for my grow lights and it’s been working well so far. The 28–56V range gives me some flexibility, and the 0–10V dimming works nicely with my lighting controller. The IP67 housing feels solid, and I like having the extra surge and overload protection. Good option for a demanding lighting setup.
