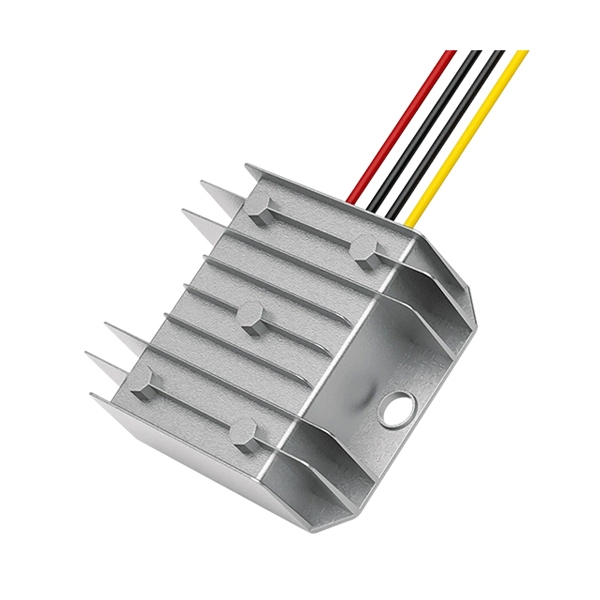

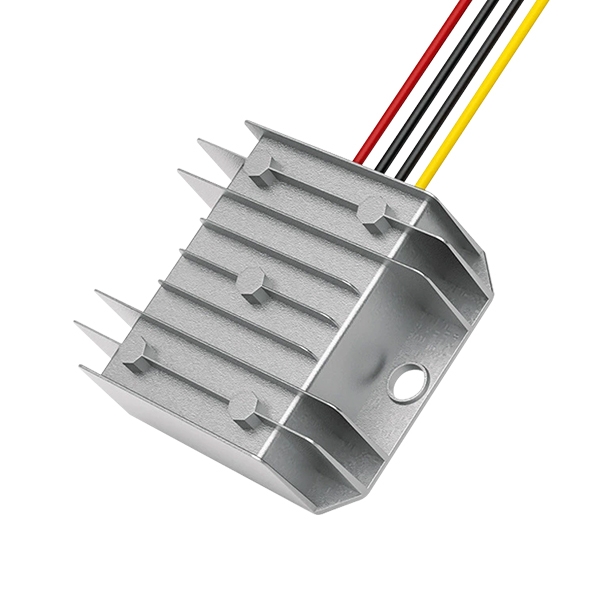

    Picture of 20V-90V to 12V Step Down DC Converter, 5A/10A/15A-40A
    Picture of 20V-90V to 12V Step Down DC Converter, 5A/10A/15A-40A
    Picture of 20V-90V to 12V Step Down DC Converter, 5A/10A/15A-40A
    Picture of 20V-90V to 12V Step Down DC Converter, 5A/10A/15A-40A

    20V-90V to 12V Step Down DC Converter, 5A/10A/15A-40A

    0 review(s) | Add your review
    SKU: PH-DCBC-209012
    $61.85
    ● Wide 20‑90V DC input converts to stable 12V DC output. ● Available in multiple current options from 5A up to 40A to match different load demands. ● Delivers up to 95% working efficiency for step‑down voltage conversion. ● Built‑in overcurrent, short‑circuit and overtemperature protection for safe operation.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    DC Voltage Buck Converter, 36V to 12V

    ● 36V to 12V DC voltage buck converter, selectable 5-60A output current with up to 95% conversion efficiency. ● Output power from 60W-120W, input voltage range of 50A buck converter is 30-50V. ● The buck converter has short circuit, over current, waterproof IP68, over temperature, and over voltage protection. ● Used to step down 36V to 12V, suitable for applications in automotive systems, LED lighting, and industrial equipment.
    $83.44

    DC-DC Buck Converter, 12V/24V to 3.3V/5V

    ● 12V/24V to 3.3V/5V DC-DC buck converter, 100% full power, high stability output. ● 1-60A current available, power from 15W-300W, conversion efficiency up to 95%. ● DC-DC step-down converter with aluminum housing, IP68 sealing, pure copper inductor, and quality SMT components. ● Suitable for a wide range of DC-DC buck converter applications including automotive, industrial, and LED power systems.
    $44.29

    24V DC to 12V DC Converter, 1.5A/5A/30A-100A

    ● Supports 18-36V input and 12V output with 96% efficiency at 24V rated voltage. Available from 1.5A-100A. ● Built-in protections include short circuit, overcurrent, overvoltage, overtemperature, and waterproof design. ● IP68 waterproofing, high-reliability NCC/NICHICON capacitors, non-isolated design, 100% burn-in testing. ● Ideal for powering 12V devices in industrial systems, vehicles, solar setups, and communication equipment using a 24V power source.
    $102.58

    DC to DC Buck Converter, 48V to 13.8V/36V

    ● DC to DC buck converter can choose output voltage 13.8V or 36V, output current 5A-60A. ● 5A converter outputs 13.8V with a maximum current of 5A and power of 69W, ±1% voltage regulation, 2% load regulation, 70mA no-load loss, and 120mV ripple and noise. ● DC step down converter has short circuit, over-current, over-temperature, and over-voltage protection, along with a waterproof design for enhanced safety and reliability. ● Ideal for use in electric vehicles, solar power systems, industrial equipment, and communication devices requiring stable low-voltage output.
    $55.39

    Step Down Buck Converter, 72VDC to 24VDC

    ● Step down buck converter 72VDC to 24VDC can choose output current 5A/10A/20A, output power 120W/240W480W, conversion efficiency in 93%-96%. ● Maximum rated current of 5A, maximum power of 120W, ±1% voltage regulation, 2% load regulation, 70mA no-load loss, and 120mV ripple and noise. ● The DC buck converter operates in temperatures from -40℃ to +80℃, with 10%–90%RH humidity, and can be stored in temperatures ranging from -40℃ to +100℃. ● Used in industrial systems, alternative energy, golf carts, cars and forklifts, electromotors, telecommunications, boats and yachts, medical devices, LED marketplaces.
    $58.59

    18V-75V to 12V DC-DC Buck Converter, 20A 240W

    ● DC‑DC converter accepts wide 18‑75VDC input and delivers stable 12V output. ● Adopts natural cooling design with working efficiency reaching above 95%. ● Rated at 240W output power and supports hole mounting for easy installation. ● Built-in fuse and multiple protection functions provide reliable operation against short circuit, over voltage and over current.
    $66.85
    Overview

    PowerHome step‑down converter performs optimally at rated input voltages of 24V, 36V, 48V, 60V and 72V, well‑suited for battery‑powered equipment. It covers a broad current selection to satisfy varied power requirements and offers solid environmental adaptability. With carefully selected internal hardware and mature manufacturing craft, this unit delivers steady output with low heat buildup. It is a dependable power‑reducing solution for your field equipment and project builds.

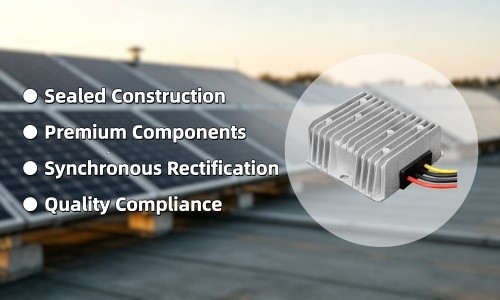

    20V-90V to 12V Step Down DC Converter Features

    Feature

    • Sealed Construction: Potting process provides IP67 rated performance against water, moisture, dust and vibration in harsh environments.
    • Premium Components: Adopts brand‑grade chips and power switches to extend overall service life of the converter.
    • Synchronous Rectification: Advanced synchronous rectification design cuts heat generation while maintaining high conversion performance.
    • Quality Compliance: Manufactured complying with CE, RoHS and ISO9001 standards for consistent reliable quality.

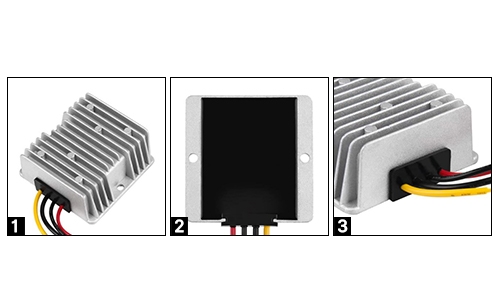

    Details

    1. Aluminum Heat‑Sink Housing: Ribbed aluminium shell optimizes heat dissipation during continuous heavy‑load operation, helping the converter maintain stable working temperature.
    2. Mounting Hole Design: Pre‑drilled mounting holes on the housing allow quick and firm installation onto equipment chassis or cabinet surfaces for fixed deployment.
    3. Integrated Wire Terminal: Encapsulated cable outlet protects internal wiring connections, reducing cable pull‑and‑wear risks for long‑term outdoor and vibration‑prone usage.
    20V-90V to 12V Step Down DC Converter Details

    Dimension (Unit: mm)

    • 5A Step Down DC Converter

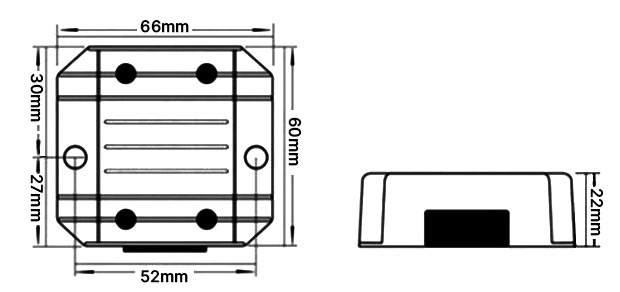

    5A Step Down DC Converter Dimension

    • 10A/15A/20A Step Down DC Converter

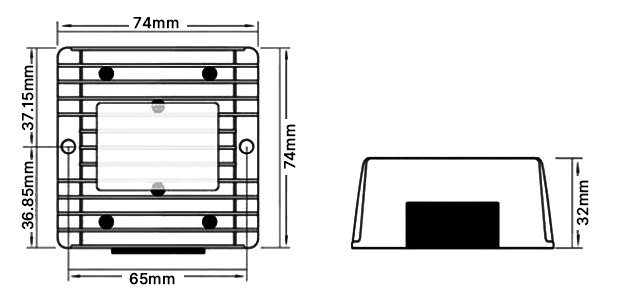

    10A/15A/20A Step Down DC Converter Dimension

    • 30A/35A/40A Step Down DC Converter

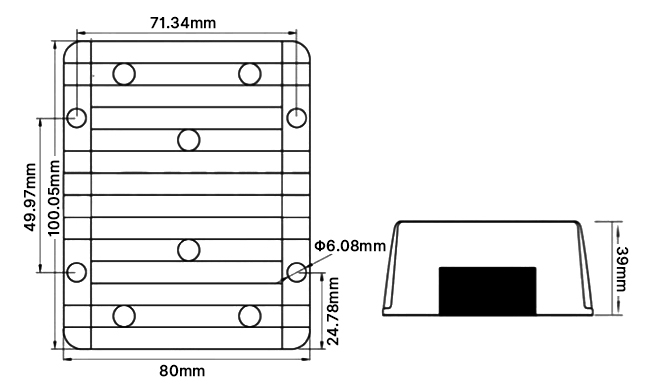

    30A/35A/40A Step Down DC Converter Dimension

    Specs
    Electrical Characteristics Output Current 5A 10A/15A/20A 30A/35A/40A
    Input Parameters Input Voltage Range 20‑90V
    Rated Input Voltage 24V/36V/48V/60V/72V
    Conversion Efficiency 95%
    Input Wire Red+ Black‑ 13‑14cm
    Output Parameters Output Voltage 12V
    Output Power 60W 120W/180W/240W 360W/420W/480W
    Static Power Consumption 20mA
    Ripple/Noise 0‑200mVp‑p
    Output Wire Yellow+, Black‑, 13‑14cm
    Environmental Parameters Operating Temperature -20‑65℃
    Storage Temperature -40‑80℃
    Operating Humidity 10%‑90% RH
    Protection Functions Ingress Protection Rating IP67
    Protection Features Overcurrent, Short Circuit, Overtemperature
    Others Weight 100g 250g 500g
    Dimensions 64*58*22mm 74*74*32mm 100*80*39mm
    Application
    DC-DC Converter for Energy Storage

    Energy Storage

    DC-DC Converter for RV

    RV

    DC-DC Converter for Industrail Equipment

    Industrail Equipment

    DC-DC Converter for Forklift

    Forklift

    FAQ

    Q1: What battery voltages can this DC‑DC step‑down converter work with?

    This converter accepts a wide 20‑90V DC input and runs optimally with 24V, 36V, 48V, 60V and 72V batteries, it is suitable for electric vehicles, forklifts, RV energy storage and off‑grid solar systems to supply stable 12V power for lights, cameras, sensors and other 12‑volt DC loads.

    Q2: Do I need to fit an extra cooling fan for this buck converter?

    This unit relies on its ribbed aluminum housing for passive heat dissipation and does not require an external cooling fan under rated load, yet you must not place it in fully sealed air‑tight enclosures and leave adequate surrounding airflow so the heat‑sink shell can dissipate heat normally to prevent over‑heating faults.
