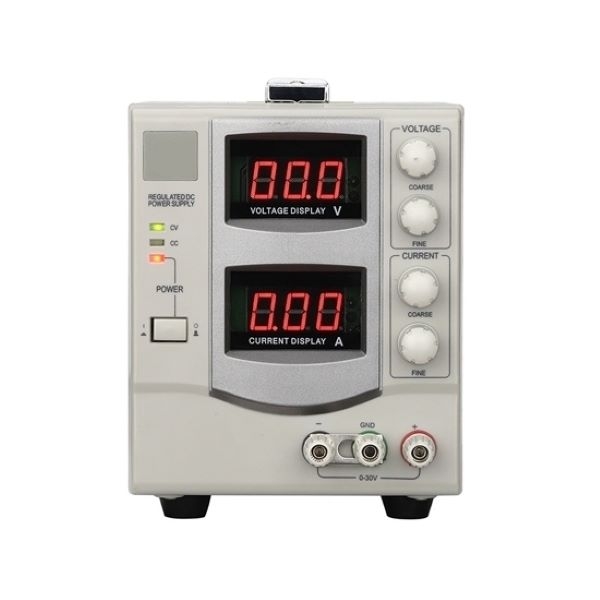

    Picture of 30V 5A Linear Adjustable DC Power Supply, 150W
    Picture of 30V 5A Linear Adjustable DC Power Supply, 150W
    Picture of 30V 5A Linear Adjustable DC Power Supply, 150W

    30V 5A Linear Adjustable DC Power Supply, 150W

    1 review(s) | Add your review
    SKU: PH-DCPS-305
    $187.99
    ● 0–30V voltage and 0–5A current are continuously adjustable, meeting the precise power supply requirements of various scenarios. ● Linear voltage regulation design, with ripple noise as low as 0.5mV, excellent load and line regulation performance. ● Excellent load/line regulation rate, stable temperature coefficient, and reliable long-term operation accuracy. ● A variety of voltage inputs are available, suitable for power grid environments in different regions around the world.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    Powerhome linear adjustable DC power supply is an essential tool for electronics work, delivering highly stable, regulated voltage and current output to ensure precise control over power delivery for your components and circuits. Supporting an adjustable output range of 0–30V DC and a maximum current of 5A, it combines high precision with excellent linear regulation performance. Whether for R&D, testing, maintenance, or production applications, this reliable and user-friendly power supply brings stable, accurate, and consistent power support to every electronic project.

    Linear Adjustable DC Power Supply Features

    Feature

    • Smart Auto-recovery: Automatically resumes normal output after fault resolution, no manual restart needed, boosting work efficiency.
    • Energy-saving & Durable: More than 65% conversion efficiency, low power consumption and heat, significantly extending service life.
    • Comprehensive Protection: Integrated short-circuit, overcurrent, overvoltage, undervoltage, over-temperature, and reverse-polarity protection for full safety of the device and DUT.


    Details

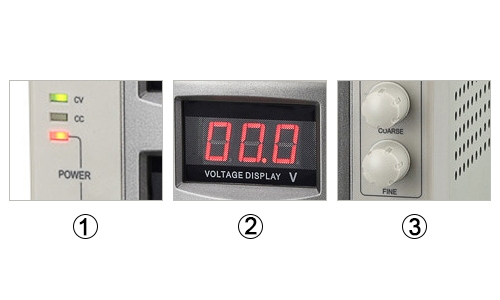

    1. Intuitive CV/CC/Power Indicator Lights
    2. Accurate Current/Voltage Display Screen
    3. Four Fine-tuning and Coarse-tuning Knobs
    30V 5A Linear Adjustable DC Power Supply Detail

    30V 5A Linear DC Power Supply Structure

    30V 5A Linear Adjustable DC Power Supply Structure

    Specs
    Model PH-JK1305P
    Input Voltage 110V or 220V AC (+/- 10%)
    Output Voltage Range DC 0-30V
    Output Current Range 0-5A
    Output Power 150W
    Frequency 50Hz/60Hz
    Output Type Dual
    Display 3 digit
    Display Accuracy ≤ ±0.1%＋2d
    Voltage Display Resolution 10mV
    Current Display Resolution 10mA
    Efficiency >65%
    Voltage Regulation
    Load Regulation (CV) 1×10-4+8mV
    Line Regulation (CV) 1×10-4+3mV
    Ripple & Noise (P-P) 0.5mV
    Temperature Coefficient 300PPｍ/℃
    Current Regulation
    Load Regulation (CC) ≤5mA
    Line Regulation (CC) 2×10-4+3mA
    Temperature Coefficient 500PPｍ/℃
    Others
    Recovery Time ≤100µs
    Operating Ambient 0℃ to + 40℃/ 85%RH
    Storage Ambient -10℃ to + 80℃/ 80%RH
    Warranty 12 Months
    Size 290 (L) x 130 (W) x 165 (H) mm
    Weight 4.5kg
    Application
    Electrochemical Experiment

    Electrochemical Experiment

    Automotive Motor

    Automotive Motor

    Electronic Component Testing

    Electronic Component Testing

    Display Screen and Electronic Device

    Display Screen and Electronic Device

    FAQ

    Q1: Can I use linear adjustable DC power supply for LED testing?

    Yes, linear adjustable DC power supply is ideal for LED testing. It delivers stable, precise DC output, which aligns perfectly with LED operation. Just ensure the supply’s voltage range matches the LED specs to avoid overload, then gradually adjust the voltage within the safe operating range while monitoring brightness, color accuracy, and function. This creates a controlled environment for accurate evaluation, though linear supplies are generally less energy-efficient than switching types.

    Q2: What should I pay attention to before turning on linear DC power supply?

    Before turning it on, please turn the voltage and current knobs to the minimum, check whether the positive and negative poles of the wiring are correct and whether there is a short circuit, confirm that the load parameters match, and ensure that the equipment is well-ventilated and there is no fault alarm before turning it on.
