    Picture of 45 kVA Three Phase Autotransformer, 230V to 400V/380V
    Picture of 45 kVA Three Phase Autotransformer, 230V to 400V/380V
    Picture of 45 kVA Three Phase Autotransformer, 230V to 400V/380V
    Picture of 45 kVA Three Phase Autotransformer, 230V to 400V/380V

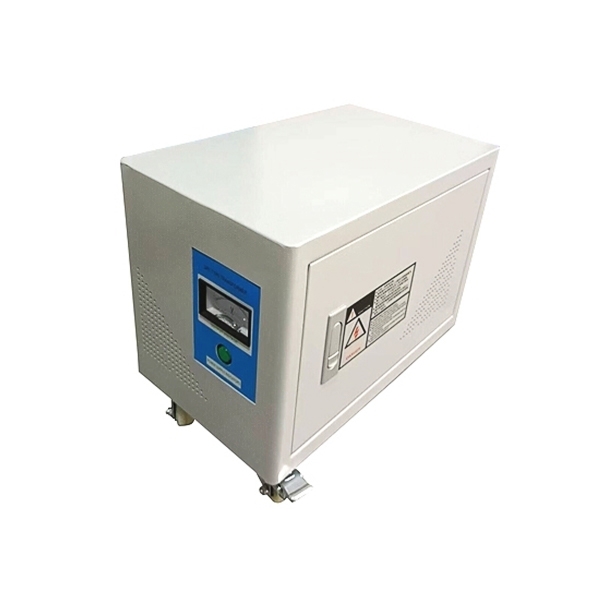

    45 kVA Three Phase Autotransformer, 230V to 400V/380V

    0 review(s) | Add your review
    SKU: PH-T-ASG45KVA
    $4,724.92
    ● Three-phase dry-type autotransformer, 45 kVA rated capacity, available at competitive market pricing. ● Standard configuration: input 380V, output 220V/200V; voltage customization available for broader application needs. ● Supports both 50Hz and 60Hz AC power supply systems. ● High-performance copper or aluminum winding is selectable for increased reliability and working efficiency. ● Dry-type autotransformer design, reliable and maintenance-friendly.
    *
    *
    *
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    1 kVA Three Phase Autotransformer, 120V to 240V/220V

    ● 1 kVA rated capacity three-phase autotransformer for industrial voltage conversion. ● Steps down input voltage from from 380V to 220V or 200V (standard); other output voltages customizable. ● Input current 1.5A; output current 2.6A (220V) / 2.8A (200V). ● Compatible with 50Hz and 60Hz AC circuits. ● Dry-type construction — primary and secondary windings insulated separately. ● Compact and lightweight; suitable for panel mounting in industrial enclosures.
    $873.69

    5 kVA Three Phase Autotransformer, 480V to 240V/230V

    ● 5 kVA three-phase step-up & down autotransformer for industrial voltage conversion. ● 480V to 240V/230V step-down configuration, suitable for international power systems. ● Standard configuration: 380V to 220V/200V, multiple voltage options available. ● Dry-type electromagnetic induction design, stable and efficient performance. ● 50/60 Hz frequency compatible, suitable for global applications.
    $1,617.54

    15 kVA Three Phase Autotransformer, 400V to 230V/220V

    ● 15 kVA three-phase autotransformer for industrial voltage conversion. ● 400V to 230V/220V step-down configuration, suitable for international power systems. ● Standard configuration: 380V to 220V/200V, multiple other voltage options supported. ● Dry-type autotransformer design using electromagnetic induction. ● 50/60 Hz compatible, adaptable to global AC power networks. ● Copper or aluminum winding available to match project specifications and budget.
    $2,333.23

    25 kVA Three Phase Autotransformer, 240V to 410V/480V

    ● 3-phase dry-type autotransformer, 25 kVA rated capacity, 98% high efficiency. ● Standard configuration: input 380V, output 220V/200V; other voltages available for customization. ● Supports multiple voltage configurations to suit diverse application requirements. ● Copper or aluminum wire winding is selectable. ● Compatible with 50Hz and 60Hz AC power supply systems.
    $2,884.31

    30 kVA Three Phase Autotransformer, 415V to 220V/200V

    ● 30 kVA three-phase autotransformer for reliable industrial voltage conversion. ● Standard configuration: 380V to 220V/200V, with multiple voltage options supported. ● 415V to 220V/200V step-down configuration, suitable for industrial power systems. ● Dry-type autotransformer design is safe and easy to maintain. ● 50/60 Hz AC frequency is compatible with global power networks. ● Copper or aluminum winding is selectable for flexible cost and performance options.
    $3,152.31

    75 kVA Three Phase Autotransformer, 380V to 190V/120V

    ● 75 kVA 3-phase autotransformer designed for industrial voltage conversion. ● Standard configuration: input 380V, output 220V/200V; other input/output voltages customizable. ● ≥98% high efficiency winding for minimal energy loss across the full load range. ● Compatible with 50/60 Hz AC power networks. ● Copper or aluminum winding is selectable for different application needs.
    $6,599.92
    Overview

    Ideally priced 45 kVA three-phase dry-type autotransformer ā€” voltage-customizable, dual-frequency compatible, with high-performance copper or aluminum winding for efficient and reliable step-down conversion across wide-ranging industrial applications. This 45 kVA three-phase autotransformer is designed to deliver stable three-phase voltage conversion for industrial power systems. The transformer can operate in configurations such as 230V to 400V/380V voltage transformation, while the standard setup remains 380V to 220V/200V, allowing it to adapt to different regional power requirements. Using a dry-type electromagnetic induction structure, the autotransformer ensures dependable performance, efficient voltage regulation, and simplified installation. It serves as a reliable industrial voltage converter for manufacturing equipment, electrical control systems, and power distribution applications.

    45 kVA three-phase autotransformer feature

    Feature

    • High-Performance Winding Options: Customers can choose between copper or aluminum windings, allowing the autotransformer to balance performance, efficiency, and cost according to specific industrial applications.
    • Dry-Type Transformer Design: This industrial dry-type autotransformer operates using electromagnetic induction and insulated windings, ensuring safe, stable, and long-term voltage conversion in three-phase systems.
    • Precision Coil Winding Structure: Coils are manufactured with H-class insulated enameled wire, arranged in tight and orderly windings that reduce no-load current, improve efficiency, and enhance operational reliability.
    • High-Quality Silicon Steel Core: The transformer includes laminated silicon steel sheets with excellent magnetic flux performance, improving heat dissipation while minimizing magnetic loss.


    Details

    1. Voltage Display Table
    2. Starting Indicator Light
    3. Wheel
    4. Handle
    5. Cooling Fan
    1 kVA three-phase autotransformer details

    45 kVA Three-phase Autotransformer Schematic Wiring Diagram

    Three-phase autotransformer schematic wiring diagram

    Specs
    Phase 3-Phase
    Capacity 45 kVA
    Input Voltage AC 380V
    Input Current 68A
    Output Voltage (Optional) AC 120V, 190V, 200V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
    Output Current 118A (220V); 130A (200V)
    Frequency 50/60 Hz
    Winding Material (Optional) Aluminum Wire / Copper Wire
    Cooling Method Self-cooling / Wind-cooling
    Working Efficiency ā‰„98%
    Protection Grade IP21
    Waveform Distortion No distortion (compared with the output wave)
    Insulation Resistance ā‰„150MĪ©
    Wiring Yn0
    Electrical Strength Power frequency sinusoidal voltage 3000V lasts for 1 minute, no breakdown or flicker
    Overload Protection Can withstand instantaneous 2 times the rated current
    Moisture-proof Type (Optional) Open Type / Sealed Type
    Ambient Temperature -20ā„ƒ ~ +45ā„ƒ
    Altitude ā‰¤ 2500m
    Relative Humidity 0-95%
    Noise ā‰¤35dB (within 1 meter)
    Design Service Life 20 years
    Use Environment No explosion, rain, or snow corrosion place, and no gas or conductive dust in the medium that can corrode metal and damage insulation
    Dimension 600Ɨ550Ɨ700 (mm)
    Weight 230 kg
    Application
    Three phase autotransformer for cnc equipment

    CNC Equipment

    Three phase autotransformer for precision instruments

    Precision Instruments

    Three phase autotransformer for medical devices

    Medical Devices

    Three phase autotransformer for automation equipment

    Automation Equipment

    FAQ

    Q1: Can the voltage configuration of this 45 kVA 3-phase autotransformer be customized?

    Yes. While the standard setup converts three-phase 380V input to 220V or 200V output on both 50Hz and 60Hz systems, custom input and output voltage configurations are available. This makes the 45 kVA autotransformer suitable for a broad range of applications beyond the standard step-down configuration.

    Q2: What winding material options are available, and how do they affect performance?

    This dry-type autotransformer is available with either copper or aluminum winding. Copper offers superior conductivity and efficiency, while aluminum provides a more cost-effective alternative. Both are wound tightly with H-class insulated enameled wire to ensure low no-load current, minimal loss, and high working reliability across the full 45 kVA capacity.
