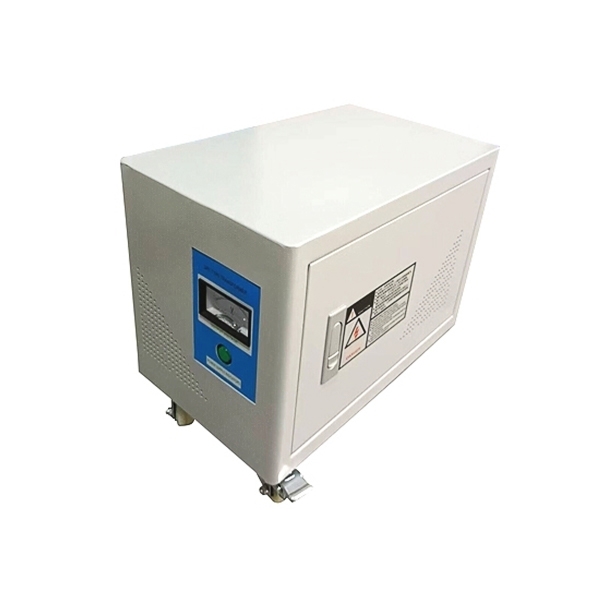

    Picture of 5 kVA Three Phase Autotransformer, 480V to 240V/230V
    Picture of 5 kVA Three Phase Autotransformer, 480V to 240V/230V
    Picture of 5 kVA Three Phase Autotransformer, 480V to 240V/230V
    Picture of 5 kVA Three Phase Autotransformer, 480V to 240V/230V

    5 kVA Three Phase Autotransformer, 480V to 240V/230V

    1 review(s) | Add your review
    SKU: PH-T-ASG5KVA
    $1,617.54
    ● 5 kVA three-phase step-up & down autotransformer for industrial voltage conversion. ● 480V to 240V/230V step-down configuration, suitable for international power systems. ● Standard configuration: 380V to 220V/200V, multiple voltage options available. ● Dry-type electromagnetic induction design, stable and efficient performance. ● 50/60 Hz frequency compatible, suitable for global applications.
    *
    *
    *
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    1 kVA Three Phase Autotransformer, 120V to 240V/220V

    ● 1 kVA rated capacity three-phase autotransformer for industrial voltage conversion. ● Steps down input voltage from from 380V to 220V or 200V (standard); other output voltages customizable. ● Input current 1.5A; output current 2.6A (220V) / 2.8A (200V). ● Compatible with 50Hz and 60Hz AC circuits. ● Dry-type construction — primary and secondary windings insulated separately. ● Compact and lightweight; suitable for panel mounting in industrial enclosures.
    $873.69

    15 kVA Three Phase Autotransformer, 400V to 230V/220V

    ● 15 kVA three-phase autotransformer for industrial voltage conversion. ● 400V to 230V/220V step-down configuration, suitable for international power systems. ● Standard configuration: 380V to 220V/200V, multiple other voltage options supported. ● Dry-type autotransformer design using electromagnetic induction. ● 50/60 Hz compatible, adaptable to global AC power networks. ● Copper or aluminum winding available to match project specifications and budget.
    $2,333.23

    25 kVA Three Phase Autotransformer, 240V to 410V/480V

    ● 3-phase dry-type autotransformer, 25 kVA rated capacity, 98% high efficiency. ● Standard configuration: input 380V, output 220V/200V; other voltages available for customization. ● Supports multiple voltage configurations to suit diverse application requirements. ● Copper or aluminum wire winding is selectable. ● Compatible with 50Hz and 60Hz AC power supply systems.
    $2,884.31

    30 kVA Three Phase Autotransformer, 415V to 220V/200V

    ● 30 kVA three-phase autotransformer for reliable industrial voltage conversion. ● Standard configuration: 380V to 220V/200V, with multiple voltage options supported. ● 415V to 220V/200V step-down configuration, suitable for industrial power systems. ● Dry-type autotransformer design is safe and easy to maintain. ● 50/60 Hz AC frequency is compatible with global power networks. ● Copper or aluminum winding is selectable for flexible cost and performance options.
    $3,152.31

    45 kVA Three Phase Autotransformer, 230V to 400V/380V

    ● Three-phase dry-type autotransformer, 45 kVA rated capacity, available at competitive market pricing. ● Standard configuration: input 380V, output 220V/200V; voltage customization available for broader application needs. ● Supports both 50Hz and 60Hz AC power supply systems. ● High-performance copper or aluminum winding is selectable for increased reliability and working efficiency. ● Dry-type autotransformer design, reliable and maintenance-friendly.
    $4,724.92

    75 kVA Three Phase Autotransformer, 380V to 190V/120V

    ● 75 kVA 3-phase autotransformer designed for industrial voltage conversion. ● Standard configuration: input 380V, output 220V/200V; other input/output voltages customizable. ● ≥98% high efficiency winding for minimal energy loss across the full load range. ● Compatible with 50/60 Hz AC power networks. ● Copper or aluminum winding is selectable for different application needs.
    $6,599.92
    Overview

    This 5 kVA dry-type three-phase autotransformer is engineered for safe and efficient step-down voltage conversion in industrial and commercial power systems. Designed to operate at 50Hz or 60Hz, the unit can support multiple voltage configurations, including 480V to 240V/230V, as well as the standard 380V to 220V/200V conversion; other voltages can also be selectable and customizable. This industrial autotransformer adopts high-quality insulated windings and laminated silicon steel cores to improve magnetic performance and reduce energy loss. Copper or aluminum winding materials can be selected depending on cost and performance requirements. Due to its compact dry-type structure, stable output characteristics, and flexible voltage options, the transformer is a practical three-phase power conversion solution for machinery, control systems, and electrical equipment.

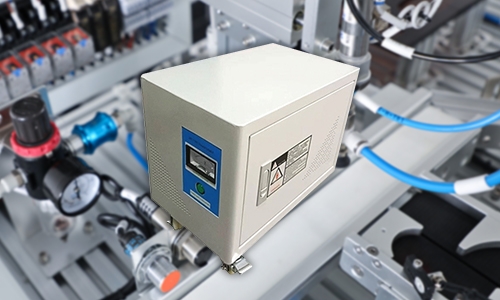

    5 kVA three-phase autotransformer feature

    Feature

    • Reliable 3-Phase Voltage Conversion: The 5 kVA three-phase autotransformer is designed to convert 480V to 240V/230V or 380V to 220V/200V, providing stable three-phase power for industrial equipment and voltage adjustment applications.
    • Flexible Voltage Configurations: Besides the standard 380V to 220V/200V setup, the transformer supports various input and output voltage combinations, making it a versatile industrial voltage converter for different regions and equipment requirements.
    • Durable Dry-Type Transformer Structure: The transformer adopts a dry-type electromagnetic induction design with separately insulated primary and secondary windings, ensuring safe operation, reliable performance, and simplified maintenance.
    • High-Quality Insulated Coil Windings: Coils are wound with H-class insulated enameled wire, featuring tight and neat wiring without skipped turns. This construction helps reduce no-load current, improve efficiency, and extend service life.


    Details

    1. Voltage Display Table
    2. Starting Indicator Light
    3. Wheel
    4. Handle
    5. Cooling Fan
    1 kVA three-phase autotransformer details

    5 kVA Three-phase Autotransformer Schematic Wiring Diagram

    Three-phase autotransformer schematic wiring diagram

    Specs
    Phase 3-Phase
    Capacity 5 kVA
    Input Voltage AC 380V
    Input Current 8A
    Output Voltage (Optional) AC 120V, 190V, 200V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
    Output Current 13A (220V); 14A (200V)
    Frequency 50/60 Hz
    Winding Material (Optional) Aluminum Wire / Copper Wire
    Cooling Method Self-cooling / Wind-cooling
    Working Efficiency ā‰„98%
    Protection Grade IP21
    Waveform Distortion No distortion (compared with the output wave)
    Insulation Resistance ā‰„150MĪ©
    Wiring Yn0
    Electrical Strength Power frequency sinusoidal voltage 3000V lasts for 1 minute, no breakdown or flicker
    Overload Protection Can withstand instantaneous 2 times the rated current
    Moisture-proof Type (Optional) Open Type / Sealed Type
    Ambient Temperature -20ā„ƒ ~ +45ā„ƒ
    Altitude ā‰¤ 2500m
    Relative Humidity 0-95%
    Noise ā‰¤35dB (within 1 meter)
    Design Service Life 20 years
    Use Environment No explosion, rain, or snow corrosion place, and no gas or conductive dust in the medium that can corrode metal and damage insulation
    Dimension 420Ɨ420Ɨ450 (mm)
    Weight 35 kg
    Application
    Three phase autotransformer for cnc equipment

    CNC Equipment

    Three phase autotransformer for precision instruments

    Precision Instruments

    Three phase autotransformer for medical devices

    Medical Devices

    Three phase autotransformer for automation equipment

    Automation Equipment

    FAQ

    Q1: What voltage configurations are available for this 5 kVA three-phase autotransformer?

    This unit supports multiple voltage configurations, including 480V to 240V/230V and 380V to 220V/200V. Other input and output voltage combinations can also be customized to meet specific project requirements.

    Q2: What is the difference between copper and aluminum winding in this 5 kVA autotransformer?

    Copper winding offers lower electrical resistance and better conductivity, resulting in slightly higher efficiency and longer service life. Aluminum winding is a cost-effective alternative suitable for budget-sensitive projects. Both options are available for this unit.

    Q3: Can this three-phase autotransformer operate on both 50Hz and 60Hz power systems?

    Yes. This 5 kVA autotransformer is fully compatible with both 50Hz and 60Hz AC circuits, making it suitable for use across different countries and for powering imported industrial equipment with varying frequency requirements.
