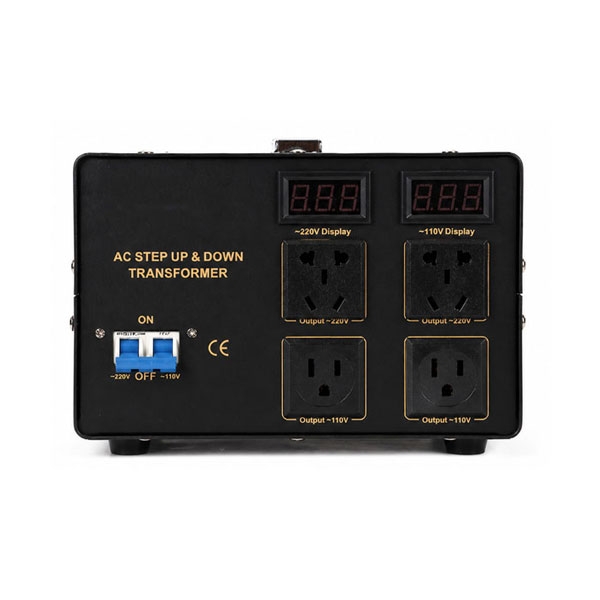

    Voltage Converter Transformer with Display, 600w-9000w

    SKU: PH-SUSD-600
    $143.23
    ● Convert 110V and 220V power seamlessly for international appliances. ● Monitor input and output voltage instantly with dual LED displays. ● Stay protected with six advanced safety features and a durable metal enclosure. ● Choose from 600W to 9000W models with multiple outlets for versatile power needs.
    *
    đźšš Free shipping
    ⏱️ Delivery: 6-12 days
    đź”™ 30-day Returns
    Overview

    The PowerHome all-in-one 110V/220V voltage converter transformer featuring a heavy-duty toroidal transformer, real-time LED voltage monitoring, and 6-layer safety protection. It provides stable, reliable power conversion for operating 110V and 220V appliances at home, in commercial environments, and during international travel.

    voltage converter transformer with display icon

    voltage converter transformer with display feature

    Feature

    • High Capacity & Multiple Outlets: Supports high-power appliances with multiple output sockets, allowing several devices to operate simultaneously.
    • Flexible Home & Office Installation: Designed for home, office, and commercial applications with flexible wiring options for different power requirements.
    • Real-Time LED Voltage Display: Dual LED displays show input and output voltage in real time for easy monitoring and safer operation.
    • Heavy-Duty Transformer Core: Built with a high-quality toroidal transformer core to deliver stable, efficient, and continuous power conversion.
    • 6-Layer Safety Protection: Integrated protection against overload, overheating, overcurrent, and short circuits for reliable operation.
    • Durable Metal Enclosure: A rugged metal housing provides excellent heat dissipation, impact resistance, and long-lasting durability.

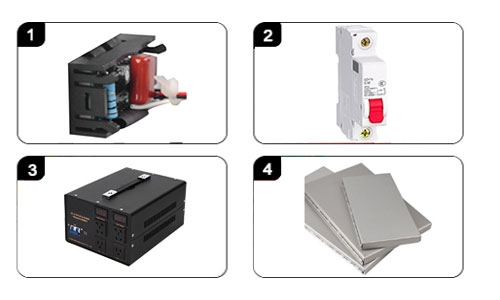

    Details

    1. Soft Start Current Device: Suppresses high startup inrush currents to prevent air switches and circuit breakers from tripping.
    2. Premium Circuit Breaker & Surge Protection: High-quality circuit breaker provides rapid tripping during short circuits or power surges for ultimate safety.
    3. 120°C Overheat Thermal Shutdown: Built-in temperature sensor automatically cuts off power if temperatures reach 120°C to prevent overheating risks.
    4. Thickened Metal Casing with Frosted Finish: Constructed with heavy-duty sheet metal and a durable frosted coating for enhanced impact resistance and longevity.
    voltage converter transformer with display details

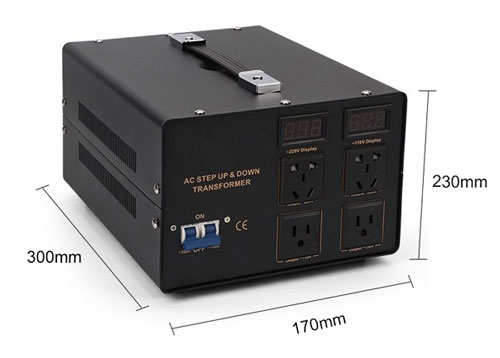

    Dimension (unit: mm)

    voltage converter transformer with display dimension

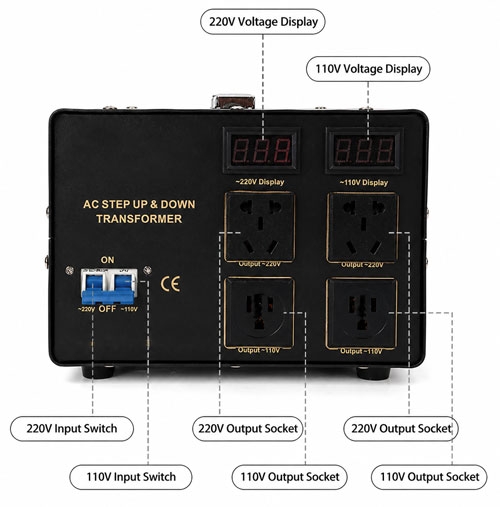

    Structure

    voltage converter transformer with display structure

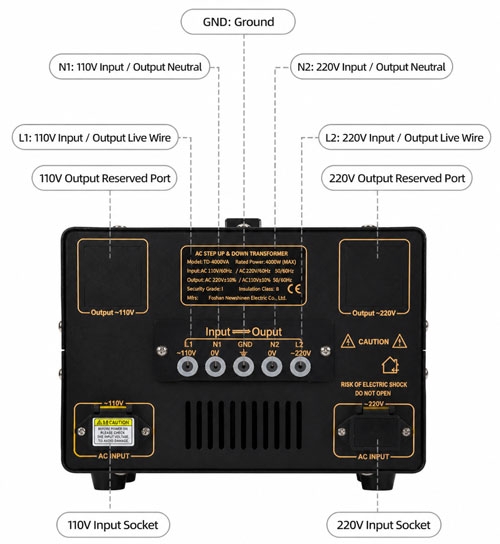

    Wiring Diagram

    voltage converter transformer with display wiring diagram

    Note:

    • For 220V to 110V conversion, connect the live wire, neutral wire, and ground wire of the 220V power supply line to L2 (220V), N2 (0V), and GND respectively. At this point, the corresponding L1 (110V), N1 (0V), and GND are connected to the live wire, neutral wire, and ground wire of the110V device.
    • For 110V to 220V conversion, connect the live wire, neutral wire, and ground wire of the 110V power supply line to L1 (110V), N1 (0V), and GND respectively. At this point, the corresponding L2 (220V), N2 (0V), and GND are connected to the live wire, neutral wire, and ground wire of the 220V device.
    Specs
    Voltage Conversion Ratio 2:1 / 1:2
    Phase Type Single phase
    Transformer Type Autotransformer
    Core Design Toroidal core
    Cooling Method Dry type
    Moisture Protection Open type
    Frequency Low frequency
    Installation Structure Vertical

    Note: 110V input cannot be plugged into 220V. If you plug in 220V by mistake, it can burn out the transformer, and even your expensive appliances.

    Application
    voltage converter transformer with display for home appliances

    Home Appliances

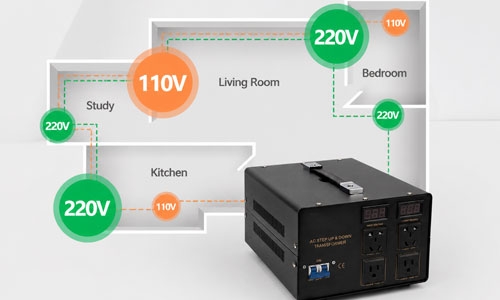

    voltage converter transformer with display for whole house power wiring

    Whole House Power Wiring

    voltage converter transformer with display for office equipment

    Office Equipment

    voltage converter transformer with display for shopping mall

    Shopping Mall

    FAQ

    Q1: The specifications for the voltage converter transformer range from 600W to 9000W. How should I choose the right power?

    The key principle for selection is to leave enough power margin. For resistive loads (no motors, no heating elements), like small speakers, desk lamps, shavers, etc., it’s recommended to choose a transformer that’s 1.5 to 2 times the actual power. For inductive/heating loads (with motors, compressors, or high-power heating elements), like rice cookers, hair dryers, coffee machines, blenders, refrigerators, air conditioners, etc., the startup current is very high, so it’s recommended to choose a transformer that’s 3 to 5 times the actual power.

    Q2: Is it safe to keep the voltage converter transformer plugged in for a long time? Does it save a lot of power or consume a lot?

    Safety guarantee: The product has multiple safety protections (overload protection, short circuit protection, etc.) and a toroidal core design, making it very stable. Power consumption: The transformer itself will have a small standby power draw when idle (plugged in but not connected to any device), usually a few watts to a dozen watts. If you're not using it for a long time, it's recommended to turn off the switch or unplug it safer and more eco-friendly.
