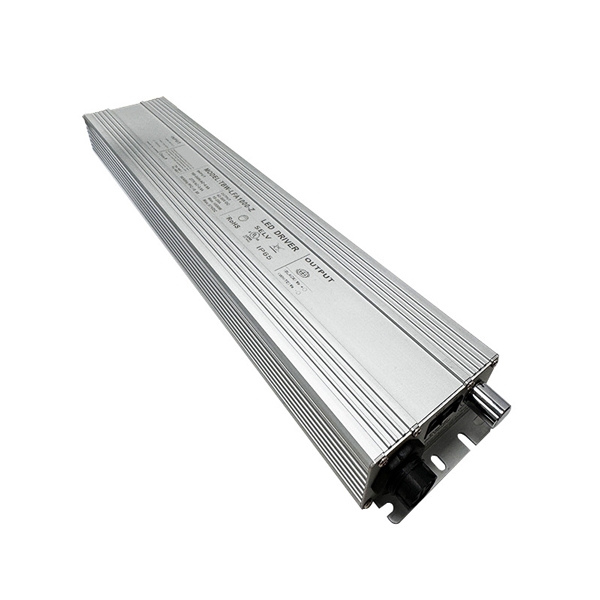

1000W Constant Current LED Driver

SKU: PH-CCLD-1000

$216.62

● 1000 watt dimmable constant current LED driver with an efficiency of up to 96%. ● UL/CE/CCC/FCC certified & IP65/IP67 waterproof. 3 dimming modes are available. ● Supports adjustable output current, allowing for flexible matching with various LED lighting fixtures. ● Suitable for plant lights, street lights, stadium lights, fish-attracting lights, and therapeutic lights.

Dimming Method *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

1000W high power LED power supply manufacturer direct sale, available with output voltage 42~56V, input voltage 100~277V AC, and output current 14A~20A. This constant current LED driver is suitable for agricultural or plant growth horticulture lighting.

Feature

3 in 1 Dimming (0–10V / PWM / Resistor): High power 1000W LED power supply is compatible with multiple mainstream dimming methods, offering strong adaptability and stable and reliable dimming.
3 in 1 Dimming + 12V / 300mA Auxiliary Power Supply: Built-in 12V auxiliary power supply can power external control or dimming devices, simplifying system configuration.
Knob Dimming + (RJ11 Ethernet Port): Supports local knob dimming and can be connected to an external control system via the RJ11 interface.

Details

1000 watt waterproof LED driver provides a stable current, ensuring uniform brightness of the LED chips and extending their lifespan.
It features multiple protections against overload, short circuit, overvoltage, overtemperature, and overcurrent, effectively ensuring the safe and stable operation of both the power supply and the LEDs.
Efficiency 96%, flicker-free output, effectively reducing energy consumption and providing a stable and comfortable lighting experience.
Dimmable LED driver transformer offers UL/CE/CCC/FCC certifications and an IP65/67 waterproof rating, suitable for long-term outdoor and humid environments.

1000W Constant Current LED Driver Size (Unit: mm)

100W constant current LED driver size

L1	L2	L3	W1	W2	H
450	435	410	89	40	45

Specs

Output Voltage	42-56V
Output Current	14-20A
Output Power	1000W
Effciency	96%
Power Factor	0.95
Input Voltage	100-277V AC
Lightning Protection	6kV/10kV
Function Options	Aux Power 12V/0.3A
Dimming Method	(Default) Knob Dimming + (RJ11 Ethernet Port)
	3-in-1 Dimming (0-10V/PWM/Resistor)
	3-in-1 Dimming + 12V/300mA Auxiliary Source
Output Frequency	50/60Hz
Certificated	UL/CE/CCC/FCC
Application	LED Lighting (Especially for Plant Grow Lights)
Waterproof Grade	IP65/IP67
Protection	Over-Heat, Over-Load, Short-Circuit & Open-Circuit
Test	100% Full Load Burn-in Test Over 4 Hours
Work Temperature	-40℃~+50℃
Storage Temperature	-40℃~+90℃
Relative Operation Humidity	10%RH~90%RH
Relative Operation Humidity	10%RH~90%RH
Shell Material	Aluminum

Application

Plant Lighting

Horticulture Lighting

LED Stadium Lighting

Fishing Lamp

FAQ

Q1: How to select the output current of a constant current LED driver?

The output current of a constant current LED driver should be strictly selected according to the rated current specified by the LED chip or luminaire. Excessive current will cause the LED to heat up and accelerate aging, while insufficient current will affect brightness and luminous efficacy. In practical applications, correctly matching the output current is one of the key factors in ensuring LED performance and lifespan.

Q2: What are the power system requirements for a 1000W constant current driver?

Due to its high power, a 1000W constant current LED driver has high requirements for input power stability and wiring quality. It typically requires an independent power supply circuit to avoid interference with other devices.
