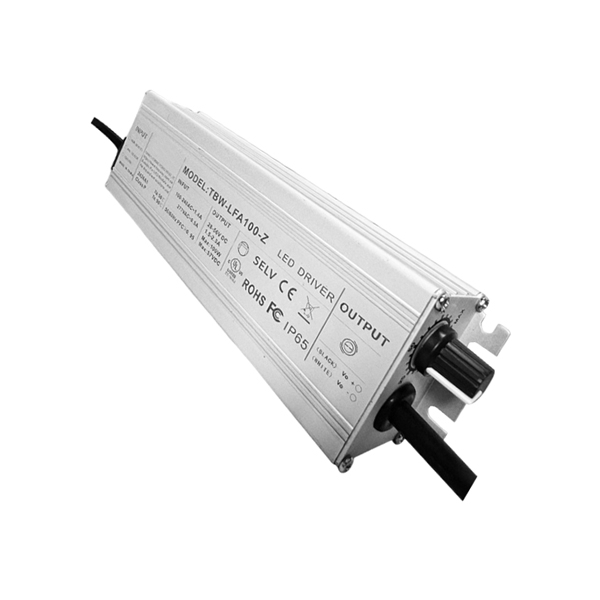

    100W Constant Current LED Driver

    1 review(s) | Add your review
    SKU: PH-CCLD-100
    $76.01
    ● 100W dimmable constant current LED driver with an efficiency of up to 90%. ● UL/CE/CCC/FCC certified & IP65/IP67 waterproof. 3 dimming modes are available. ● Supports adjustable output current, allowing for flexible matching with various LED lighting fixtures. ● Suitable for plant lights, street lights, stadium lights, fish-attracting lights, and therapeutic lights.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    πŸ”™ 30-day Returns
    Related products

    150W Constant Current LED Driver

    ● 150 watt dimmable constant current LED power supply with an efficiency of up to 91.5%. ● UL/CE/CCC/FCC certified & IP65/IP67 waterproof. 3 dimming modes are available. ● Suitable for plant lights, street lights, stadium lights, fish-attracting lights, and therapeutic lights.
    $83.08

    200W Constant Current LED Driver

    ● 200W constant current LED driver with dimming capability and efficiency reaching up to 92%. ● Certified by UL, CE, CCC, and FCC, with IP65/IP67 waterproof protection and three optional dimming modes. ● Features adjustable output current for easy compatibility with different LED lighting fixtures.
    $92.31

    240W Constant Current LED Driver

    ● 240 watt dimmable constant current LED driver with efficiency of up to 92.5%. ● UL, CE, CCC, and FCC standards, with IP65/IP67 waterproof rating and 3 dimming options. ● Suitable for applications including plant grow lights, street lights, stadium lights, fish-attracting lights, and therapeutic lighting.
    $103.08

    320W Constant Current LED Driver

    ● 320W dimming constant current LED power supply, efficiency up to 92.5%. ● Compliant with UL, CE, CCC, and FCC standards, IP65/IP67 waterproof protection and 3 dimming modes. ● Designed with adjustable output current for easy adaptation to different LED lighting fixtures.
    $121.54
    Overview

    Get a 100 watt constant current LED driver online. Dimmable LED power supply comes with output voltage 28~56V, input voltage 100~277V AC, and output current 0.8~1.5A, widely used for lighting in commercial and residential, outdoor and landscape, indoor agriculture or plant growth horticulture.

    Constant current LED drive details

    Feature

    • 3 in 1 Dimming (0–10V / PWM / Resistor): 100W LED lighting driver is compatible with multiple mainstream dimming methods, offering strong adaptability and stable and reliable dimming.
    • 3 in 1 Dimming + 12V / 300mA Auxiliary Power Supply: Built-in 12V auxiliary power supply can power external control or dimming devices, simplifying system configuration.
    • Knob Dimming + (RJ11 Ethernet Port): Supports local knob dimming and can be connected to an external control system via the RJ11 interface.


    Details

    1. 100W constant current LED power supply provides a stable current, ensuring uniform brightness of the LED chips and extending their lifespan.
    2. It features multiple protections against overload, short circuit, overvoltage, overtemperature, and overcurrent, effectively ensuring the safe and stable operation of both the power supply and the LEDs.
    3. Efficiency 90%, flicker-free output, effectively reducing energy consumption and providing a stable and comfortable lighting experience.
    4. Dimmable LED driver offers UL/CE/CCC/FCC certifications and an IP65/67 waterproof rating, suitable for long-term outdoor and humid environments.
    Constant current LED drive efficiency

    100W Constant Current LED Driver Size (Unit: mm)



    100W constant current LED driver size

    L1 L2 L3 W1 W2 H
    170 157.5 148 67 34 40
    Specs
    Output Voltage 28-56V
    Output Current 0.8-1.5A
    Output Power 100W
    Effciency 90.0%
    Power Factor 0.95
    Input Voltage 100-277V AC
    Lightning Protection 6kV/10kV
    Function Options Aux Power 12V/0.3A
    Dimming Method (Default) Knob Dimming + (RJ11 Ethernet Port)
    3-in-1 Dimming (0-10V/PWM/Resistor)
    3-in-1 Dimming + 12V/300mA Auxiliary Source
    Output Frequency 50/60Hz
    Certificated UL/CE/CCC/FCC
    Application LED Lighting（Especially for Plant Grow Lights)
    Waterproof Grade IP65/IP67
    Protection Over-Heat, Over-Load, Short-Circuit & Open-Circuit
    Test 100% Full Load Burn-in Test Over 4 Hours
    Work Temperature -40℃~+50℃
    Storage Temperature -40℃~+90℃
    Relative Operation Humidity 10%RH~90%RH
    10%RH~90%RH
    Shell Material Aluminum
    Application
    Constant current LED driver for plant lighting

    Plant Lighting

    Constant current LED driver for horticulture lighting

    Horticulture Lighting

    Constant current LED driver for led stadium lighting

    LED Stadium Lighting

    Constant current LED driver for fishing lamp

    Fishing Lamp

    FAQ

    Q1: What is an LED driver?

    An LED driver is a power supply designed specifically for LED lighting. Its main function is to convert AC power or unstable DC power into a stable current or voltage suitable for LEDs, ensuring safe operation, consistent brightness, and longer LED lifespan.

    Q2: Types of LED Drivers

    • Constant current LED driver: Provides a fixed output current and automatically adjusts the voltage to match the LED load. It protects LED chips from overcurrent and is commonly used for high-power LED lighting.
    • Constant voltage LED driver: Provides a fixed output voltage (such as 12V or 24V) and is typically used for LED strips or LED modules with built-in current-limiting components. It is easy to install and suitable for parallel connections.
    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Finn | 7/24/2026 9:47 AM
    Outstanding 100W Waterproof Power Supply for DIY Lighting!
    Picked up this 100W constant current LED driver for my indoor plant setup. The stepless knob dimming and RJ11 port make light control effortless. It’s IP67 waterproof, runs cool, and delivers reliable, flicker-free power. Heavy-duty build and great value!
