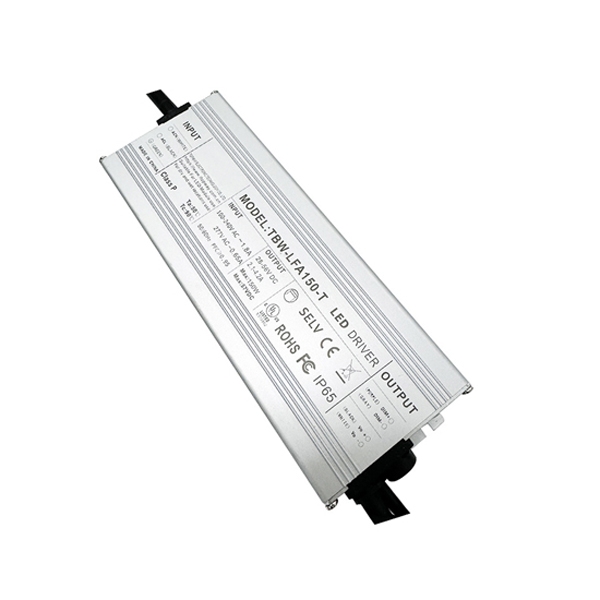

150W Constant Current LED Driver

SKU: PH-CCLD-150

$83.08

● 150 watt dimmable constant current LED power supply with an efficiency of up to 91.5%. ● UL/CE/CCC/FCC certified & IP65/IP67 waterproof. 3 dimming modes are available. ● Suitable for plant lights, street lights, stadium lights, fish-attracting lights, and therapeutic lights.

Dimming Method *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Waterproof 150W LED driver power supply for plant grow lights. With output voltage 28~56V, input voltage 100~277V AC, and output current 2.1-4.2A, this dimmable constant current LED driver is widely used for commercial and residential lighting installations, outdoor and landscape lighting, indoor agriculture or plant growth horticultural lighting.

Feature

3 in 1 Dimming (0–10V / PWM / Resistor): 150W LED power supply is compatible with multiple mainstream dimming methods, offering strong adaptability and stable and reliable dimming.
3 in 1 Dimming + 12V / 300mA Auxiliary Power Supply: Built-in 12V auxiliary power supply can power external control or dimming devices, simplifying system configuration.
Knob Dimming + (RJ11 Ethernet Port): Supports local knob dimming and can be connected to an external control system via the RJ11 interface.

Details

150W constant current LED driver provides a stable current, ensuring uniform brightness of the LED chips and extending their lifespan.
It features multiple protections against overload, short circuit, overvoltage, overtemperature, and overcurrent, effectively ensuring the safe and stable operation of both the power supply and the LEDs.
Efficiency 91.5%, flicker-free output, effectively reducing energy consumption and providing a stable and comfortable lighting experience.
Dimmable LED driver offers UL/CE/CCC/FCC certifications and an IP65/67 waterproof rating, suitable for long-term outdoor and humid environments.

150W Constant Current LED Driver Size (Unit: mm)

100W constant current LED driver size

L1	L2	L3	W1	W2	H
211	195	188	67	34	40

Specs

Output Voltage	28-56V
Output Current	2.1-4.2A
Output Power	150W
Effciency	91.5%
Power Factor	0.95
Input Voltage	100-277V AC
Lightning Protection	6kV/10kV
Function Options	Aux Power 12V/0.3A
Dimming Method	(Default) Knob Dimming + (RJ11 Ethernet Port)
	3-in-1 Dimming (0-10V/PWM/Resistor)
	3-in-1 Dimming + 12V/300mA Auxiliary Source
Output Frequency	50/60Hz
Certificated	UL/CE/CCC/FCC
Application	LED Lighting (Especially for Plant Grow Lights)
Waterproof Grade	IP65/IP67
Protection	Over-Heat, Over-Load, Short-Circuit & Open-Circuit
Test	100% Full Load Burn-in Test Over 4 Hours
Work Temperature	-40℃~+50℃
Storage Temperature	-40℃~+90℃
Relative Operation Humidity	10%RH~90%RH
Relative Operation Humidity	10%RH~90%RH
Shell Material	Aluminum

Application

Plant Lighting

Horticulture Lighting

LED Stadium Lighting

Fishing Lamp

FAQ

Q1: Is 150W driver suitable for continuous operation?

Under reasonable heat dissipation and rated load conditions, a 150W constant current LED driver is very suitable for long-term continuous operation. High-quality drivers typically have built-in over-temperature, over-voltage, and short-circuit protection, maintaining stable output under 24/7 operating conditions, and are widely used in commercial lighting and industrial auxiliary lighting scenarios.

Q2: Can a 150W driver work in high temperatures?

A well-designed 150W constant current LED driver typically uses high-temperature resistant components and optimized heat dissipation structures, maintaining stable output even at high ambient temperatures. When the temperature rises abnormally, the driver will prevent damage through power reduction or protection mechanisms, ensuring safe system operation.
