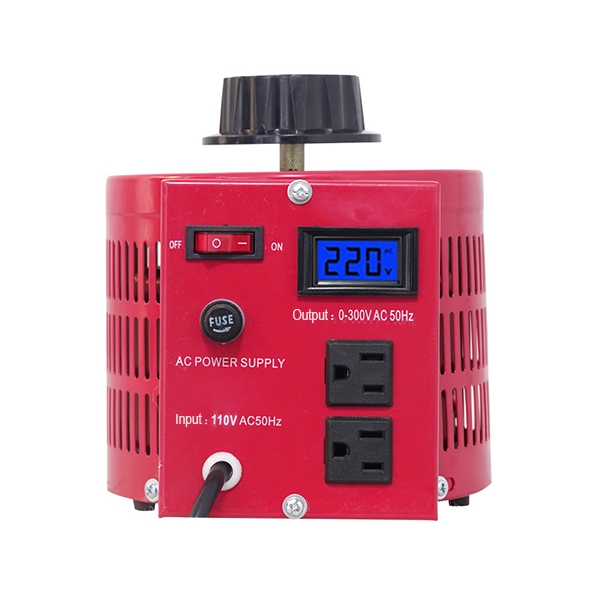

    2 kVA Variac Transformer, Single Phase

    1 review(s) | Add your review
    SKU: PH-VT-2K
    $2,156.79
    ● Robust 2000VA maximum rated power. Max output current 6.4A. ● Built-in LCD for real-time voltage monitoring. ● Factory-integrated overload protection system. ● Wider voltage regulation range than standard 0-250V models. Output continuously variable from 0~300V AC. ● Engineered for heavy-duty industrial testing, scientific research, and high-draw commercial equipment.
    *
    đźšš Free shipping
    ⏱️ Delivery: 6-12 days
    đź”™ 30-day Returns
    Related products

    0.5 kVA Variac Transformer, Single Phase

    ● 0-250V continuously adjustable output from a 110V or 220V input. ● High-grade silicon steel core and pure copper windings ensure minimal loss and quiet operation. ● Supports both 110V and 220V input voltages (field selectable). ● Max output current of 1.6A/3.2A, compatible with 50/60Hz frequencies. ● Robust construction with flame-retardant insulation and corrosion-resistant casing.
    $169.58

    1 kVA Variac Transformer, Single Phase

    ● Delivers 1000VA of continuous clean power. ● Engineered for high-inrush loads like motors and compressors. ● Field-selectable 110V or 220V AC input. Output continuously adjustable from 0-250V AC. ● Universal compatibility with global 50/60Hz power grids. ● Perfect for juicers, commercial TV displays, large refrigerators, and CNC printing systems.
    $256.32

    3 kVA Variac Transformer, Single Phase

    ● 3kVA variac variable transformer, industrial AC voltage regulator. ● Supports both 50Hz and 60Hz working frequencies. ● Input voltage selectable between 110V and 220V. ● Protective metal shell construction enhances durability and dissipates heat efficiently. ● Designed for high efficiency, long operational life, and excellent electrical conductivity.
    $446.38

    5 kVA Variac Transformer, Single Phase

    ● 5,000VA rated capacity with a maximum output current of 16A. ● Built with all-copper coils throughout. ● Specifically configured for 220V rated input voltage and 50Hz working frequency. ● Ideal for regulating output from standby generators, providing stable, adjustable AC to connected equipment. ● Maximizes electrical conductivity, minimizes energy losses, and ensures cooler operation under sustained 5kVA continuous load.
    $758.65

    10 kVA Variac Transformer, Single Phase

    ● Substantial 10000VA rated capacity with 32A max output current. ● Delivers 32A rated output current across the 0~250V adjustment range. ● Features a porous heat dissipation shell design for superior airflow. ● Integrated an accurate scale meter for direct voltage readout. ● Engineered for heavy industrial infrastructure, large-scale motor control, and whole-facility AC voltage testing.
    $1,485.36

    15 kVA Variac Transformer, Single Phase

    ● Substantial 15 kVA rated capacity with a maximum output current of 48A. ● Specifically configured for 220V rated input voltage and 50Hz working frequency. ● Delivers 48A rated output current across the 0-250V adjustment range. ● Direct sale by the factory eliminates intermediaries. ● Good performance at accessible pricing with streamlined ordering and support.
    $2,079.09
    Overview

    Our 2 kVA variac voltage regulator with LCD is a high-performance adjustable AC voltage control solution designed for precision regulation and digital monitoring. With a wide output adjustment range of 0 to 300V AC, this single-phase variable transformer provides greater flexibility than standard 0–250V models. Equipped with a clear digital LCD, users can monitor output voltage in real time, improving operational accuracy and safety during electrical testing, equipment calibration, and industrial voltage adjustment. This 2000VA variac transformer is widely applied in industrial production lines, scientific laboratories, public utilities, appliance testing, and generator voltage control systems.

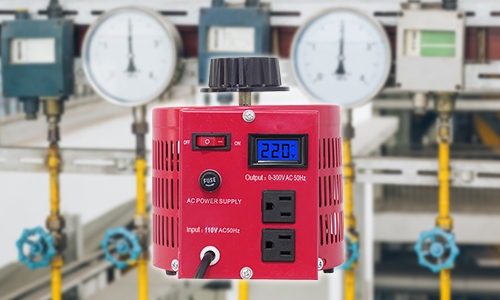

    2 kVA single-phase variac voltage regulator feature

    Feature

    • Real-Time LCD Monitoring Interface: Front-panel integrated LCD digital display provides instantaneous, accurate output voltage visualization. Enables precise adjustments without external test equipment.
    • Extended 0-300V Regulation Envelope: Suitable for testing equipment rated for 240V international standards, simulating high-line conditions, and accommodating legacy 220-277V industrial controls.
    • Integrated Overload Protection System: Built-in overload protection mechanism enhances operational safety. Automatically responds to excessive current draw, reducing the risk of winding degradation and downstream equipment damage.
    • Industrial-Grade Construction: Robust core and winding assembly supports the thermal and electrical demands of 2kVA continuous operation.

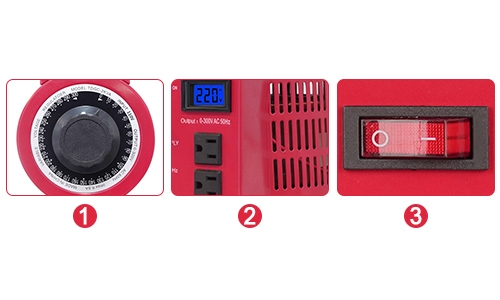

    Details

    1. Voltage Adjustment Knob: Convenient, simple, and durable; the dial adjusts the voltage.
    2. Flame-Retardant Housing: High-strength flame-retardant iron housing with ventilation holes on both sides to effectively dissipate internal heat.
    3. Independent Switch: One-button start switch for quick and easy operation.
    2 kVA single-phase variac voltage regulator details

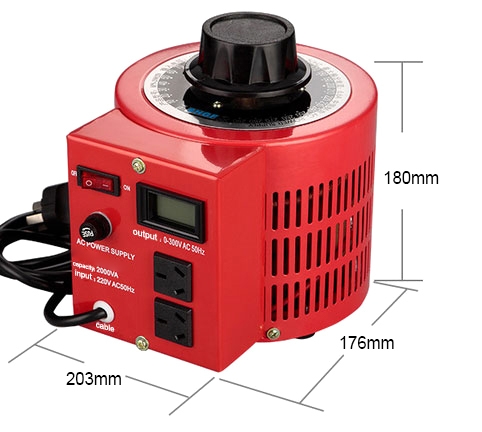

    2 kVA Single-phase Variac Transformer Dimensions (Unit: mm)

    2 kVA single-phase variac voltage regulator dimensions

    Specs
    Phase 1-Phase
    Rated Power 2 kVA
    Input Voltage 110V/220V
    Frequency 50/60Hz
    Max Output Current 14.5A/6.4A
    Output Adjustable Voltage 0~300V
    Actual Output Current (Actual output voltage * rated current) / maximum output voltage
    Dimension (203*176*180) mm
    Certificate CE
    Weight 8 kg
    Application
    Variac voltage regulator for machine speed control

    Machine Speed Control

    Variac voltage regulator for mechanical voltage boost

    Mechanical Voltage Boost

    Variac voltage regulator for current control

    Current Control

    Variac voltage regulator for withstand voltage test

    Withstand Voltage Test

    FAQ

    Q. What are typical "public utilities" applications for this 2 kVA variac transformer?

    In public utility contexts, 2kVA variacs with extended range serve: Water treatment facilities—calibrating variable-speed pump controllers; Wastewater plants—testing actuator and valve control circuits; Transit authorities—bench-testing signaling and communication gear; Municipal workshops—repairing voltage-sensitive public safety equipment. The 0-300V range accommodates both North American and European-derived utility equipment within a single instrument.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Charles | 6/30/2026 6:41 AM
    This Thing Has Made Bench Work So Much Easier
    Been using this variac for a few months now on various projects – testing old power supplies, bringing up vintage gear slowly, and just having a adjustable AC source on hand whenever I need one. The LCD screen is a nice touch, lets you see the voltage at a glance without having to keep a separate multimeter hooked up all the time. The knob turns smooth and the whole thing feels well built. Handles everything I throw at it without breaking a sweat. If you do any kind of electrical work or repair, you'll wonder how you got by without one. Solid piece of kit.
