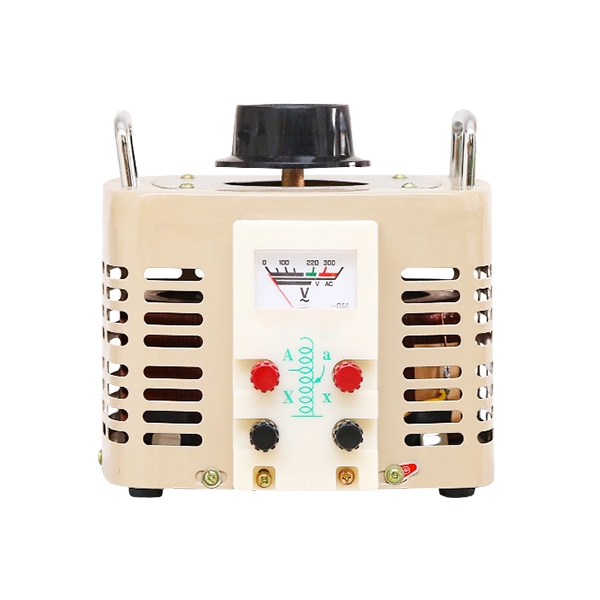

    Picture of 5 kVA Variac Transformer, Single Phase
    Picture of 5 kVA Variac Transformer, Single Phase
    Picture of 5 kVA Variac Transformer, Single Phase

    5 kVA Variac Transformer, Single Phase

    0 review(s) | Add your review
    SKU: PH-VT-5K
    $758.65
    ● Substantial 5000VA rated capacity with 16A rated output current. ● Built with all-copper coils throughout. ● Specifically configured for 220V rated input voltage and 50Hz working frequency. ● Ideal for regulating output from standby generators, providing stable, adjustable AC to connected equipment. ● Maximizes electrical conductivity, minimizes energy losses, and ensures cooler operation under sustained 5kVA continuous load.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    0.5 kVA Variac Transformer, Single Phase

    ● 0-250V continuously adjustable output from a 110V or 220V input. ● High-grade silicon steel core and pure copper windings ensure minimal loss and quiet operation. ● Supports both 110V and 220V input voltages (field selectable). ● Rated output current of 1.6A, compatible with 50/60Hz frequencies. ● Robust construction with flame-retardant insulation and corrosion-resistant casing.
    $169.58

    1 kVA Variac Transformer, Single Phase

    ● Delivers 1000VA of continuous clean power. ● Engineered for high-inrush loads like motors and compressors. ● Field-selectable 110V or 220V AC input. Output continuously adjustable from 0-250V AC. ● Universal compatibility with global 50/60Hz power grids. ● Perfect for juicers, commercial TV displays, large refrigerators, and CNC printing systems.
    $256.32

    2 kVA Variac Transformer, Single Phase

    ● Robust 2000VA maximum rated power. Rated output current 6.4A. ● Built-in LCD for real-time voltage monitoring. ● Factory-integrated overload protection system. ● Wider voltage regulation range than standard 0-250V models. Output continuously variable from 0~300V AC. ● Engineered for heavy-duty industrial testing, scientific research, and high-draw commercial equipment.
    $2,156.79

    3 kVA Variac Transformer, Single Phase

    ● 3kVA variac variable transformer, industrial AC voltage regulator. ● Supports both 50Hz and 60Hz working frequencies. ● Input voltage selectable between 110V and 220V. ● Protective metal shell construction enhances durability and dissipates heat efficiently. ● Designed for high efficiency, long operational life, and excellent electrical conductivity.
    $446.38

    10 kVA Variac Transformer, Single Phase

    ● Substantial 10000VA rated capacity with 32A rated output current. ● Delivers 32A rated output current across the 0~250V adjustment range. ● Features a porous heat dissipation shell design for superior airflow. ● Integrated an accurate scale meter for direct voltage readout. ● Engineered for heavy industrial infrastructure, large-scale motor control, and whole-facility AC voltage testing.
    $1,485.36

    15 kVA Variac Transformer, Single Phase

    ● Substantial 15kVA-rated capacity with 48A output current. ● Specifically configured for 220V rated input voltage and 50Hz working frequency. ● Delivers 48A rated output current across the 0-250V adjustment range. ● Direct sale by the factory eliminates intermediaries. ● Good performance at accessible pricing with streamlined ordering and support.
    $2,079.09
    Overview

    Powerhome's 5 kVA single-phase variac voltage regulator is a high-capacity adjustable AC voltage control solution designed for generator systems and industrial load applications. With a stable 16A-rated output current, this variac transformer delivers reliable voltage regulation for medium to large electrical equipment. Built with 100% copper coils and imported carbon brushes, the internal structure ensures excellent electrical conductivity, reduced energy loss, and extended service life. Its robust construction and high-quality workmanship make it suitable for continuous operation in demanding environments.

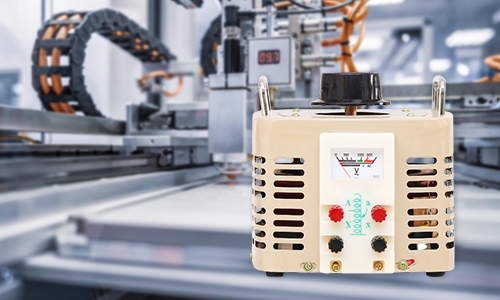

    5 kVA single-phase variac transformer feature

    Feature

    • 16A High-Current Continuous Capacity: Delivers 16A rated output current across the 0-250V adjustment range. Provides substantial headroom for starting large motors, powering multiple devices simultaneously, or driving high-current experimental apparatus.
    • Generator-Ready Voltage Regulation: Purpose-suited for 220V 50/60Hz generator outputs. Enables precise voltage control of generator power before distribution to sensitive equipment or variable-speed machinery.
    • Industrial-Grade All-Copper Winding: 100% copper coil construction throughout the magnetic circuit, directly contributing to longer service life and better protection for connected devices.
    • Extended-Lifespan Carbon Brush System: Premium carbon brush technology ensures consistent, low-sparking contact with the commutator. Maintains smooth 0-250V adjustment and excellent electrical conductivity over thousands of operating cycles.

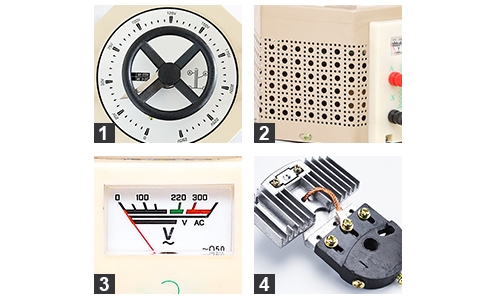

    Details

    1. Axle Design: Enhanced axle precision with optimized calibration, featuring an ergonomic design for effortless operation.
    2. Multi-Ventilation Cooling: Effectively prevents damage caused by excessive temperature during regulator operation.
    3. Analog Pointer Meter: Clearer, more intuitive scale markings for simplified usage.
    4. Premium Carbon Brush: Utilizes high-quality carbon brushes for extended service life.
    5 kVA single-phase variac transformer details

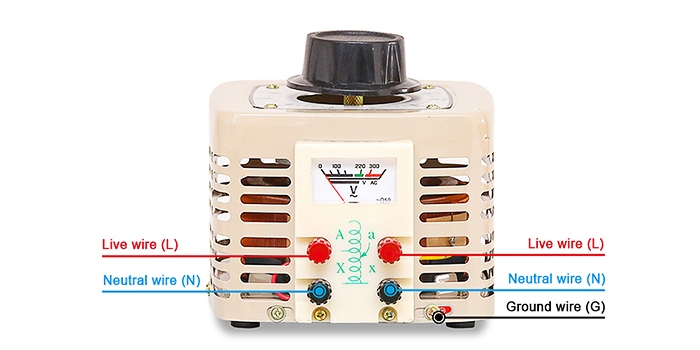

    5 kVA Single-phase Variac Transformer Wiring Diagram

    5 kVA single-phase variac transformer wiring diagram

    Specs
    Phase 1-Phase
    Rated Capacity 5 kVA
    Rated Input Voltage 220V
    Rated Output Voltage 0~250V
    Frequency 50/60Hz
    Max Output Current 16A
    Usage SVC
    Current Type AC
    Type Contact Type Regulators
    Actual Output Current (Actual output voltage * rated current) / maximum output voltage
    Dimension (L×W×H) (330*270*310) mm
    Weight 15.6 kg



    Note: Support the split phase (L1, L2+N, G). Please contact us.

    Application
    Variac voltage regulator for machine speed control

    Machine Speed Control

    Variac voltage regulator for mechanical voltage boost

    Mechanical Voltage Boost

    Variac voltage regulator for current control

    Current Control

    Variac voltage regulator for withstand voltage test

    Withstand Voltage Test

    FAQ

    Q1: Can this 5 kVA variac voltage regulator be used with a generator?

    Yes. This single-phase variac transformer is specifically suitable for adjusting and stabilizing generator voltage within its rated capacity.

    Q2: What makes the 5 kVA model different from lower-capacity units?

    The 5 kVA variac provides a higher 16A output current and greater load-handling capability, making it more suitable for industrial and medium-duty applications.

    Q3: Is the output voltage continuously adjustable?

    Yes. The 0–250V output range allows smooth and stepless voltage regulation for precise AC power control.
