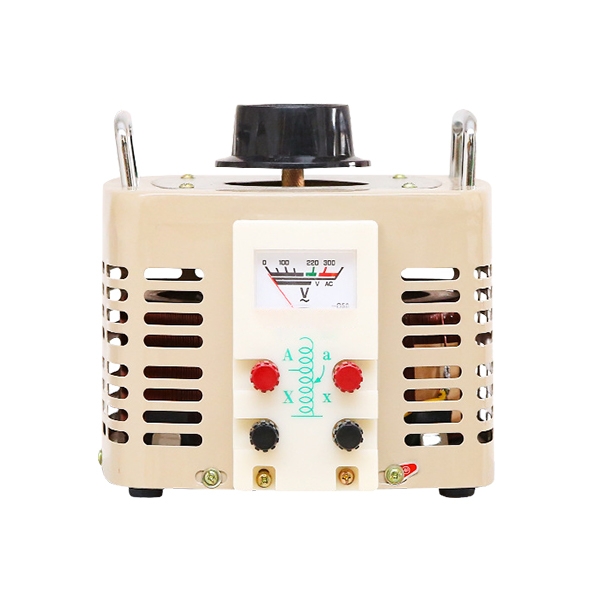

    3 kVA Variac Transformer, Single Phase

    1 review(s) | Add your review
    SKU: PH-VT-3K
    $446.38
    ● 3kVA variac variable transformer, industrial AC voltage regulator. ● Supports both 50Hz and 60Hz working frequencies. ● Input voltage selectable between 110V and 220V. ● Protective metal shell construction enhances durability and dissipates heat efficiently. ● Designed for high efficiency, long operational life, and excellent electrical conductivity.
    *
    đźšš Free shipping
    ⏱️ Delivery: 6-12 days
    đź”™ 30-day Returns
    Related products

    0.5 kVA Variac Transformer, Single Phase

    ● 0-250V continuously adjustable output from a 110V or 220V input. ● High-grade silicon steel core and pure copper windings ensure minimal loss and quiet operation. ● Supports both 110V and 220V input voltages (field selectable). ● Rated output current of 1.6A, compatible with 50/60Hz frequencies. ● Robust construction with flame-retardant insulation and corrosion-resistant casing.
    $169.58

    1 kVA Variac Transformer, Single Phase

    ● Delivers 1000VA of continuous clean power. ● Engineered for high-inrush loads like motors and compressors. ● Field-selectable 110V or 220V AC input. Output continuously adjustable from 0-250V AC. ● Universal compatibility with global 50/60Hz power grids. ● Perfect for juicers, commercial TV displays, large refrigerators, and CNC printing systems.
    $256.32

    2 kVA Variac Transformer, Single Phase

    ● Robust 2000VA maximum rated power. Rated output current 6.4A. ● Built-in LCD for real-time voltage monitoring. ● Factory-integrated overload protection system. ● Wider voltage regulation range than standard 0-250V models. Output continuously variable from 0~300V AC. ● Engineered for heavy-duty industrial testing, scientific research, and high-draw commercial equipment.
    $2,156.79

    5 kVA Variac Transformer, Single Phase

    ● Substantial 5000VA rated capacity with 16A rated output current. ● Built with all-copper coils throughout. ● Specifically configured for 220V rated input voltage and 50Hz working frequency. ● Ideal for regulating output from standby generators, providing stable, adjustable AC to connected equipment. ● Maximizes electrical conductivity, minimizes energy losses, and ensures cooler operation under sustained 5kVA continuous load.
    $758.65

    10 kVA Variac Transformer, Single Phase

    ● Substantial 10000VA rated capacity with 32A rated output current. ● Delivers 32A rated output current across the 0~250V adjustment range. ● Features a porous heat dissipation shell design for superior airflow. ● Integrated an accurate scale meter for direct voltage readout. ● Engineered for heavy industrial infrastructure, large-scale motor control, and whole-facility AC voltage testing.
    $1,485.36

    15 kVA Variac Transformer, Single Phase

    ● Substantial 15kVA-rated capacity with 48A output current. ● Specifically configured for 220V rated input voltage and 50Hz working frequency. ● Delivers 48A rated output current across the 0-250V adjustment range. ● Direct sale by the factory eliminates intermediaries. ● Good performance at accessible pricing with streamlined ordering and support.
    $2,079.09
    Overview

    This robust 3000VA variable autotransformer delivers reliable and continuous voltage adjustment from 0 to 250V. Engineered with a flame-retardant metal housing, this industrial variac transformer ensures enhanced safety and mechanical durability in demanding environments. The internal all-copper winding and imported carbon brush system provide superior electrical conductivity, smooth voltage regulation, and long service life. The adjustable AC voltage regulator is widely used in power supply stations, industrial workshops, generator testing sites, laboratory equipment calibration, and maintenance applications operating at 50Hz or 60Hz.

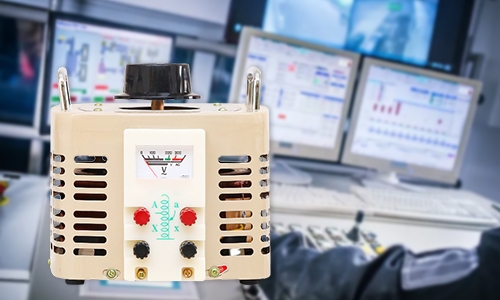

    3 kva single-phase variac transformer feature

    Feature

    • Industrial-Grade Metal Safety Enclosure: Full metal shell construction provides robust physical protection and effective heat dissipation. The flame-retardant housing significantly enhances workplace safety, particularly in continuous-duty or high-ambient-temperature industrial settings.
    • High-Purity All-Copper Winding System: Employs all-copper coil throughout the core assembly. Copper's superior electrical conductivity minimizes energy loss, reduces operating temperatures, and extends the operational lifespan compared to aluminum-wound alternatives.
    • Imported Carbon Brush Assembly: Precision-engineered carbon brush ensures consistent, arcing-free contact with the commutator. Delivers smooth voltage transitions and maintains excellent electrical conductivity throughout the 0-250V adjustment range. Rated output current 9.6A.
    • High-Efficiency Toroidal Core Design: Optimized core geometry reduces magnetic flux leakage and idle power consumption. Contributes to cooler running, higher efficiency, and compact form factor relative to 3kVA capacity.

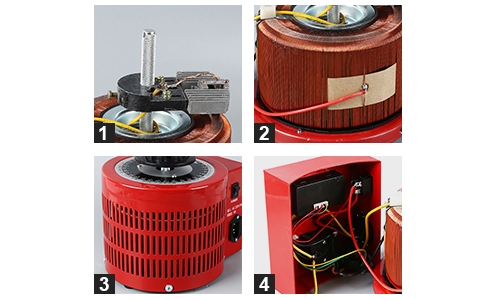

    Details

    1. Imported Carbon Brushes: More precise adjustment, no power tripping, and longer service life.
    2. All-copper Coils: The full-power voltage regulator uses a sufficient amount of pure copper coils for more stable operation.
    3. Ventilation and Heat Dissipation Holes: The entire product is equipped with heat dissipation holes, ensuring stable operation and heat resistance.
    4. Standard Electronic Wire: High-temperature resistant electronic wire, multi-strand copper wire with an outer tin-plated layer, not easily oxidized.
    3 kva single-phase variac transformer details
    Specs
    Phase 1-Phase
    Frequency 50Hz 60Hz
    Rated Input Voltage 220V 110V
    Rated Output Voltage 0~250V 0~130V
    Rated Capacity 3 kVA 3 kVA
    Max Output Current 9.6A 18A
    Usage SVC
    Current Type AC
    Actual Output Current (Actual output voltage * rated current) / maximum output voltage
    Type Contact Type Regulators
    Dimension (495*285*270) mm
    Weight 10.4 kg



    Note: Support the split phase (L1, L2+N, G). Please contact us.

    Application
    Variac voltage regulator for machine speed control

    Machine Speed Control

    Variac voltage regulator for mechanical voltage boost

    Mechanical Voltage Boost

    Variac voltage regulator for current control

    Current Control

    Variac voltage regulator for withstand voltage test

    Withstand Voltage Test

    FAQ

    Q1. What specific advantages does the metal housing provide over plastic or open-frame variacs?

    The flame-retardant metal shell offers three critical benefits for industrial users.

    • Enhanced safety: contains internal faults and resists ignition in high-dust or combustible environments.
    • Superior heat dissipation: metal acts as a heat sink, extending component life during continuous 3kVA operation.
    • Physical durability: withstands impacts, tool drops, and rough handling common in active workshops compared to plastic or exposed-core units.

    Q2. What are typical "power supply sites" where this 3kVA variac transformer is used?

    Based on industrial applications, common sites include:

    • Manufacturing floors—regulating power for conveyor systems and automated assembly tools.
    • Commercial HVAC shops—testing compressor and blower motor performance.
    • University engineering labs—powering multi-station experiment benches.
    • Utility maintenance depots—repairing high-power grid components.
    • Theatre/stage production—dimming large lighting arrays and powering sound systems.

    The 3kVA capacity handles multiple devices simultaneously.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Michael Lee | 5/26/2026 6:17 AM
    A Real Workhorse for the Bench
    This thing is built like a tank. The metal case feels solid, and the knob turns smooth as butter. I'm mainly using it to power up old tube gear and test questionable electronics without just slamming full mains into them and hoping for the best. Being able to slowly crank the voltage up from zero has saved me from letting the magic smoke out more than a few times. The 3kVA size is overkill for most little hobby projects, but I'd rather have extra headroom than be wishing for more later. Honestly, if you do any kind of repair work on older stuff, you need one of these on your bench. Zero complaints."
