    Picture of 2000A Electroplating Rectifier, 0-12V/36V/48V Output
    Picture of 2000A Electroplating Rectifier, 0-12V/36V/48V Output
    Picture of 2000A Electroplating Rectifier, 0-12V/36V/48V Output
    Picture of 2000A Electroplating Rectifier, 0-12V/36V/48V Output
    Picture of 2000A Electroplating Rectifier, 0-12V/36V/48V Output

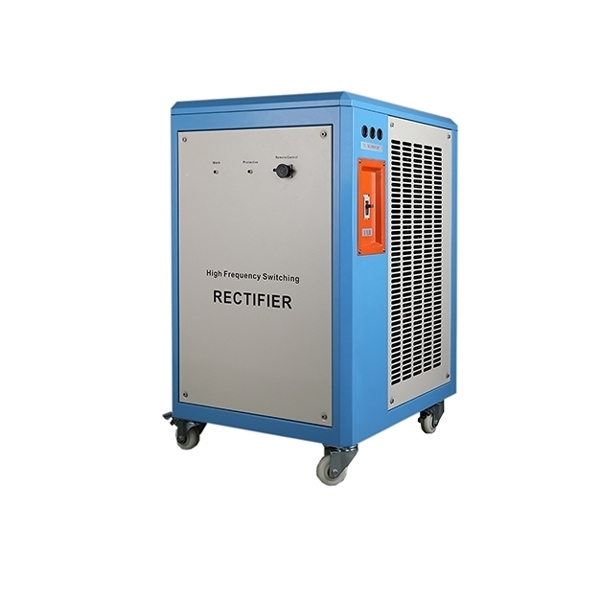

    2000A Electroplating Rectifier, 0-12V/36V/48V Output

    0 review(s) | Add your review
    SKU: PH-EPR-2000A
    $5,702.99
    ● Electroplating Rectifier, AC 380-480V input, DC 0-48V output, 0-2000A adjustable current for stable plating power. ● IGBT 15kHz PWM control, ≥92% efficiency and ≤1% voltage/current stability for precise output. ● Supports manual or remote control, compatible with RS485, 0-10V, and 4-20mA interfaces. ● CE & ISO certified, with overcurrent, overvoltage, overheating, short circuit, and phase loss protection.
    *
    *
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    3000 Amp Electroplating Rectifier, 400V/440V to 12/18/24V

    ● Electroplating rectifier AC 380-480V to DC 0-48V, with 0-3000A adjustable output current for industrial plating tanks. ● IGBT PWM control (15kHz) with ≥92% efficiency and ≤1% voltage/current stability. ● Remote control or manual operation, supporting RS485, 4-20mA, and PLC 0-10V interfaces. ● Comprehensive protection system including overcurrent, overvoltage, phase loss, and overheating protection.
    $7,545.99

    4000A Electroplating Rectifier, 415V/460V to 36V/48V

    ● Industrial IGBT electroplating rectifier, AC 380-480V input, DC 0-48V output, 0-4000A adjustable current. ● 15kHz PWM modulation ensures ≥92% efficiency and power factor ≥0.9 for energy-efficient plating. ● Supports manual and remote control, compatible with RS485, PLC 0-10V, and 4-20mA communication. ● Soft start 0-200s and ≤1% control accuracy provide stable output for electroplating processes.
    $8,903.99

    5000A Electroplating Rectifier, 12/18/24V Output

    ● Three-phase AC 380-480V electroplating rectifier with DC 0-48V output and 0-5000A continuously adjustable current. ● IGBT PWM rectification at 15kHz, providing ≥92% efficiency and ≤1% voltage/current stability. ● RS485, 0-10V, and 4-20mA control signals, supporting remote monitoring and PLC automation systems. ● Industrial protection with full safety features including phase loss, short circuit, and overheat protection.
    $10,380.99

    6000A Electroplating Rectifier, 480VAC to 24VDC, PWM

    ● Electroplating Rectifier supports three-phase AC 380–480V input and DC 0–48V output, with 0-6000A current adjustable by 1A for precise plating control. ● Built with IGBT module and 15kHz PWM control, delivering ≥92% efficiency and power factor ≥0.9 for stable industrial operation. ● Supports manual or remote control, compatible with RS485, PLC 0-10V, and 4-20mA interfaces for automated production lines. ● Includes overcurrent, overvoltage, short circuit, and overheat protection, with voltage/current stability ≤1%.
    $12,219.99

    500A Electroplating Rectifier, 380V-480V to 0-48V

    ● The electroplating rectifier features three-phase 380-480V input with 0–100A continuously adjustable output and DC voltage options up to 48V. ● IGBT 15kHz PWM technology with ≥92% efficiency, power factor ≥0.9, and ≤1% voltage/current stability. ● Supports RS485, PLC 0–10V and 4–20mA interfaces for remote monitoring, control, and start/stop operation. ● Integrated protection against overcurrent, overvoltage, overheating, short circuit, phase loss, and diode faults for safe industrial use.
    $2,789.99

    1000A Electroplating Rectifier, Three Phase

    ● Electroplating rectifier with IGBT PWM control provides DC 0-48V and 0-1000A adjustable output with ≤±1% stability. ● Pulse plating rectifier supports one-way and two-way pulse output with adjustable frequency 1000–8000Hz. ● Industrial plating power supply supports three-phase AC 380-480V input with efficiency ≥92% and power factor ≥0.9. ● Supports RS485, PLC 0-10V, and 4-20mA interfaces for remote control and automated electroplating systems.
    $3,849.99
    Overview

    The industrial IGBT electroplating rectifier is engineered to deliver stable high-current DC power for electroplating tanks, anodizing systems, and metal finishing processes. It features AC 380-480V input and DC 0-48V output with up to 2000A adjustable current, providing precise power control for industrial plating applications. Advanced PWM control technology, combined with high efficiency and intelligent protection functions, ensures reliable performance in demanding production environments while supporting integration with automated plating systems.

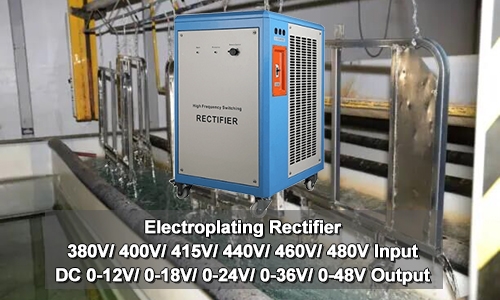

    Electroplating rectifier feature

    Feature

    • Industrial Electroplating Power Supply: Industrial IGBT electroplating rectifier designed for large plating tanks requiring high-current DC output up to 2000A.
    • High Control Accuracy: Control accuracy ≤ ±1% ensures stable plating thickness and uniform coating quality.
    • Advanced Digital Regulation: PWM pulse width adjustment and phase shift control ≤1μs resolution improve current precision.
    • Multi-Process Compatibility: Suitable for electroplating, anodizing, oxidation, and metal surface treatment.
    • Reliable Industrial Operation: Stable performance in -10℃ to 50℃ environments with humidity ≤80%.
    • Certified Manufacturing Quality: Produced under CE and ISO certified standards for industrial reliability.


    Details

    1. Industrial IGBT Rectifier Module: Provides efficient high-power DC conversion.
    2. Digital Control Core: High-speed DSP control architecture ensures accurate system regulation.
    3. Touch Screen HMI System: Intuitive interface for monitoring and process configuration.
    4. High-Power Busbar Structure: Copper busbar design ensures reliable high-current conduction.
    5. Comprehensive Protection Circuit: Includes overvoltage, overcurrent, short circuit, and thermal protection.
    6. Integrated Monitoring System: Supports real-time display of operating parameters.

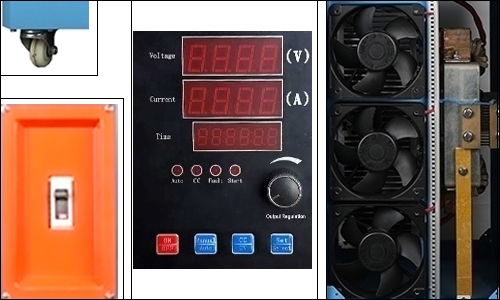

    Three phase plating rectifier detail

    Dimension

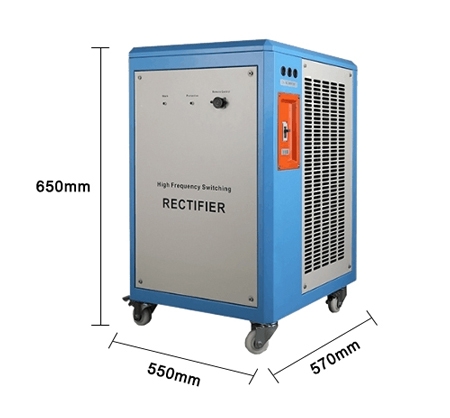

    Electroplating rectifier 2000a size

    Specs
    Input Voltage (Optional)* Three phase AC 380V/ 400V/ 415V/ 440V/ 460V/ 480V (220-1000V voltages are customizable)
    Input Frequency 50Hz/60Hz
    Output Current 0-2000A (continuously adjustable by 1A)
    Output Voltage (Optional)* DC 0-12V/ 0-18V/ 0-24V/ 0-36V/ 0-48V (8-500V voltages are customizable)
    Note: Output voltage is adjustable by 0.1V.
    Output Frequency 15kHz
    Output Current Stability ≤1%
    Output Voltage Stability ≤1%
    Efficiency ≥92%
    Power Factor ≥0.9
    Operation Mode Remote control or manual control
    Module IGBT module
    Cooling Method Air cooling
    Start-up Postponing Time ≤10s
    Limiting Current Value Io±5A (Io is the rated current)
    Limiting Voltage Value Vo±5A (Vo is the rated current)
    Signal Interface (Optional)* RS485, PLC 0-10V, 4-20mA
    RS485 Interface Function Can be used to monitor parameters, control voltage & current values, and remotely start/stop the rectifier.
    Control Box (Included) Can adjust the output voltage, current and time, with standard 0-30m remote connection cable. Longer cables can be customized!
    PLC Touch Screen (Optional)* Plating rectifier connects with PLC touch screen by RS485 interface to display/adjust the voltage, current and time.
    Modulation Mode PWM control
    Complete Protection Functions Over current, over voltage, over heat, short circuit, phase lack, input undercurrent protection, over temperature, diode defect...
    Protection Grade IP20
    Ambient Temperature -10℃-50℃
    Relative Humidity ≤80%
    Size 570*550*650mm
    Net Weight 125kg
    Certification CE, ISO
    Warranty 12 months
    Packing Included 1 x Three Phase Plating Rectifier
    1 x Remote Control Box
    1 x 0-5m Cable

    PDF computingElectroplating Eectifier User Manual.PDF

    PDF computingElectroplating Eectifier Modbus RTU Protocol V6.5.PDF

    Application

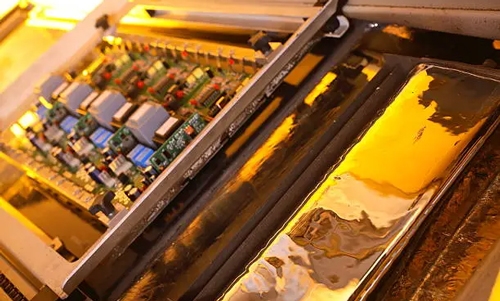

    PCB electroplating

    PCB Electroplating Manufacturing

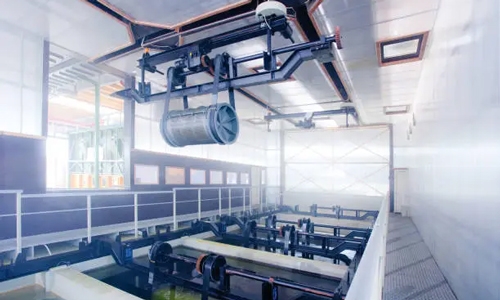

    Anodizing production system

    Anodizing Production System

    Automotive parts plating

    Automotive Parts Plating

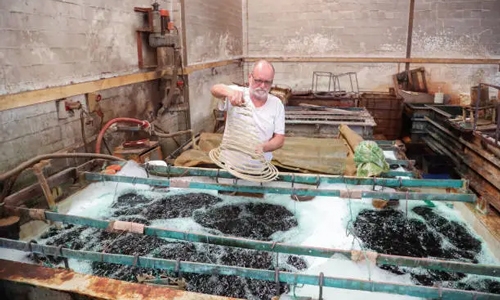

    Hardware electroplating

    Hardware Electroplating

    FAQ

    Q1: How is a 2000A electroplating rectifier installed in a plating workshop?

    A 2000A electroplating rectifier is typically installed near the plating tanks and connected through copper busbars or heavy-duty cables to deliver stable DC current to the electroplating bath.

    Q2: What plating tank size is commonly paired with a 2000A rectifier?

    A 2000A plating rectifier is often paired with medium-capacity plating tanks used in component plating, hardware plating, or anodizing processes.

    Q3: Can a 2000A electroplating rectifier be used for decorative plating?

    Yes, a 2000A electroplating rectifier can be used in decorative plating processes such as nickel or chrome finishing when plating medium-sized parts.
