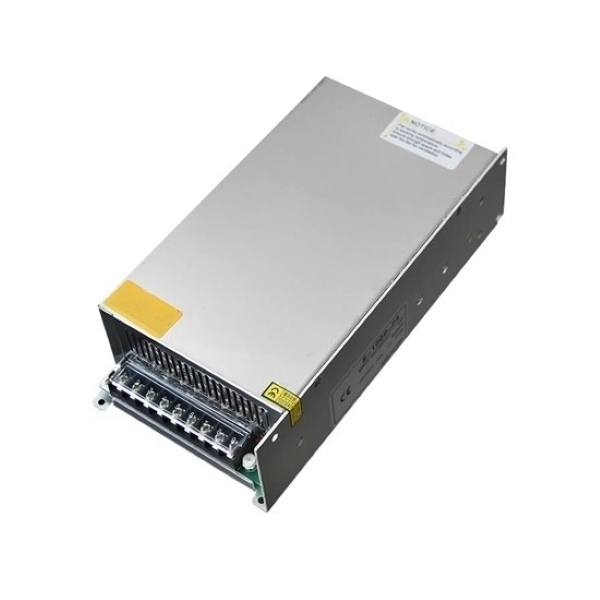

24V 40A 1000W SMPS Switching Power Supply

Q1: What are the common failures of an SMPS and the basic repair steps?

If the switching power supply does not start oscillating, check the switching frequency, protection circuit, voltage and current feedback circuits, and whether the switching tube is broken down. Transformer overheating or sizzling noise is usually due to incorrect switching frequency, and a flickering output indicator often means a secondary-side short circuit. When repairing, first use a multimeter to check for breakdown or short circuits in power components like the rectifier bridge, switching tube, high-frequency rectifier, and whether the inrush current limiting resistor is blown, then check each output voltage port for abnormalities.

Q2: What applications is this power supply suitable for?

This switching power supply is widely used in industrial control, LED lighting, security equipment, communication devices, factory automation, electrical machinery, and various electronic instruments that require stable DC power supply.
