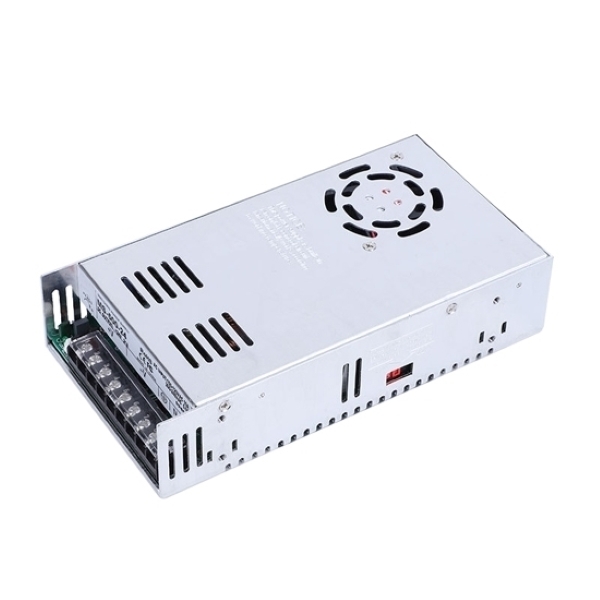

24V 20A 500W SMPS Switching Power Supply

SKU: PH-SMPS-500-24

$85.65

● Serves up a robust 24V 20.8A 500W power stream, guaranteeing devices operate with consistent reliability. ● Integrated short-circuit, overvoltage, and overload protections prevent electrical risks. ● 100% full-load burn-in testing eliminates defects and guarantees stable long-term performance.

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Our budget-friendly, high-quality 24V 500W switching power supply features 220V AC input, delivering consistent, stable DC output while integrating essential safety protections—including short-circuit, overvoltage, and overload safeguards—to protect both the power supply and your connected devices, making it a dependable choice for a wide range of applications from LED lighting to industrial controls.

Feature

Broad Application Range: Perfectly suited for LED strips, computers, industrial equipment, and more, fitting diverse use cases.
Triple Safety Guard: Integrated safeguards against short circuits, overvoltage, and overloads protect your devices from electrical hazards.
Cost-effective Reliability: Durable performance at an affordable price delivers long-term value for all your projects.

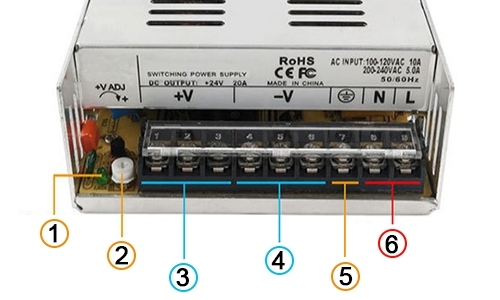

Details

Indicator Light: Shows whether the power supply is active.
Voltage Regulation: Allows adjustment of the output voltage level.
Output Positive Terminal: The positive connection for regulated DC power.
Output Negative Terminal: The negative connection for DC power.
Ground Wire: Provides safety grounding for the device.
Input: Connects to the AC power input.

Dimension (Unit: mm)

24V 20A 500W SMPS Dimension

Specs

Model		PH-MS-500-24
Output	DC Voltage	0~24V
	Rated Current	20.8A
	Rated Power	500W
	Ripple and Noise ①	≤150mV
	Voltage Accuracy	±1%
	Output Voltage Adjustment Range	0~100%
	Load Regulation	＜±0.5
	Linear Adjustment Rate	＜±0.5%
Input	Voltage Range	180~264V AC 47Hz~63Hz; 254V DC~370V DC
	Efficiency (Typical) ②	＞85%
	Working Current	220V AC, 4A
	Electric Shock	60A 230V AC
	Start, Rise, Hold Time	200ms, 50ms, 20ms; 230V AC
Protection	Overload Protection	105%~135% Type: constant current output +VO drops to the undervoltage point and cuts off the output; Reset: power on again
Protection	Over Temperature Protection	RTH3: The fan rotates continuously, and the output is turned off when >90℃.
Environment	Temperature & Humidity	-10C~+50℃; 20%~90RH
Environment	Storage Humidity	-20C~+85℃; 10%~95RH
Safety & EMC	Withstand Voltage	Input-Output: 1.5kV AC; Input-Enclosure: 1.5kV AC; Output-Enclosure: 0.5kV AC
	Leakage Current	Input-Output: <6mA at 1.5kV AC
	Leakage Current	Input-Output: <1.5mA at 220V AC
	Isolation Resistor	Input-Output, Input-Enclosure, Output Enclosure: 500V DC/100MΩ
Size	215x115x50mm
Net Weight	0.9kg

Application

Household Appliances

Factory Equipment

Monitoring Equipment

Power Tools

FAQ

Q1: How to choose the right power supply for my device?

First confirm your device’s required voltage and current. Select a power supply with the same voltage and rated current greater than or equal to your device’s needs for stable and safe operation.

Q2: How to troubleshoot interrupted or unstable DC output from a switching power supply?

If the fuse is intact but no DC output occurs under load, check for open/short circuits, protection triggers, or component failures in the high-frequency rectification/smoothing circuit. Use a multimeter to test secondary components: total output loss points to a control circuit issue, while partial output or instability points to failed rectifier diodes or leaking filter capacitors.
