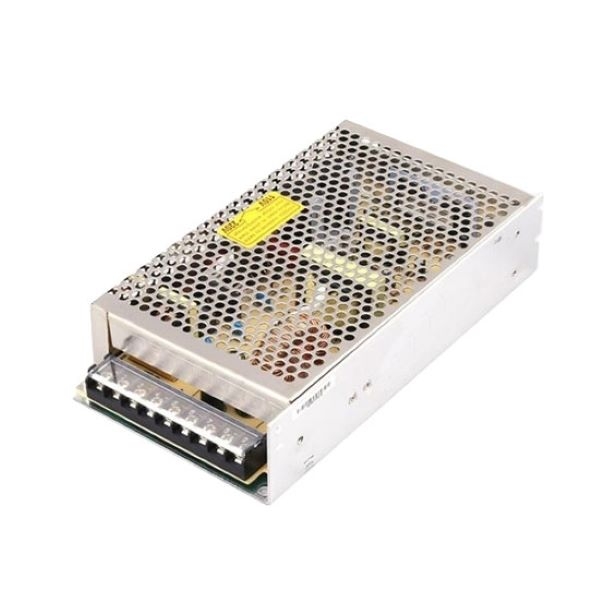

24V 8A 200W SMPS Switching Power Supply

SKU: PH-SMPS-200-24

$67.58

● 24V 8A 200W SMPS designed to support demanding equipment with steady power delivery. ● 100% full load burn-in test ensures long-term stability and reliability. ● Efficient heat dissipation via free air convection, no fan required. ● Compliant with CE, FCC, and RoHS standards, ensuring safe operation.

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Compact 200W 24V 8.3A low-cost switching power supply offers universal AC input compatibility and robust protections against short circuits, overloads, and overvoltages. With high efficiency, fanless cooling, and 100% burn-in testing, it provides reliable, stable DC power for LED lighting, industrial equipment, and security systems, delivering exceptional value without compromising performance.

Feature

Power Indication: Clear LED power-on indicator for instant operational status check.
Comprehensive Protection: Built-in short circuit, overload, and overvoltage safeguards for device safety.
Universal Input: Switch-selectable universal AC input range for global compatibility.

Details

220V AC Input: Dedicated terminals for 220V live wire connection, ensuring standard power access.
Ground Wire Terminal: Separate terminal for ground wire connection to enhance electrical safety.
Output Negative Terminal: Clearly marked terminal for reliable DC negative power connection.
Output Positive Terminal: Clearly marked terminal for stable DC positive power output.
Voltage Regulation: Precision potentiometer allows fine-tuning of output voltage for device compatibility.
Power Indicator Light: Built-in LED visually confirms the power supply is in working status.

Dimension (Unit: mm)

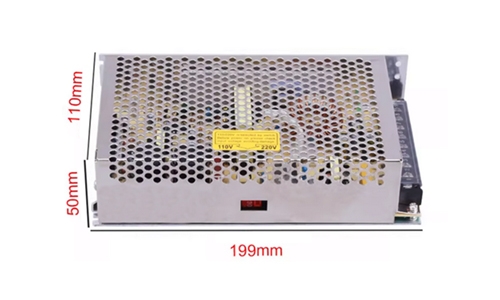

24V 8A 200W SMPS Switching Power Supply Dimensions

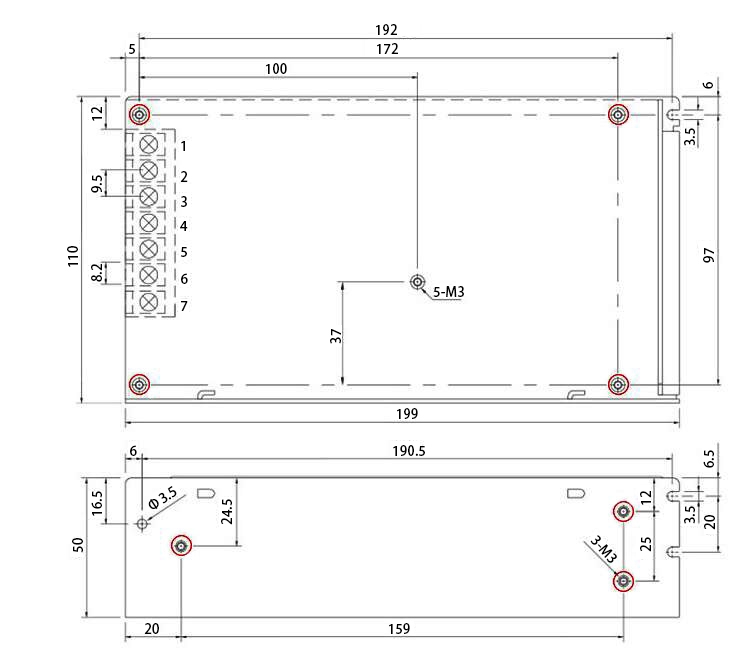

24V 8A 200W SMPS Switching Power Supply Dimension

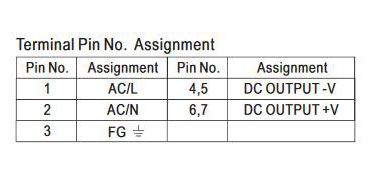

24V 8A 200W SMPS Switching Power Supply Terminal Assignment

Specs

Model		PH-S-200-24
Output	DC Voltage	24V
	Rated Current	8.3A
	Current Range	0 ~ 8.3A
	Rated Power	200W
	Ripple & Noise (Max.)(Note 2)	100mVp-p
	Voltage Adjust Range	21 ~ 28V
	Voltage Tolerance (Note 3)	±1.0%
	Line Regulation	±0.5%
	Load Regulation	±0.5%
	Setup, Rise, Holdup Time	100ms, 50ms, 20ms at full load
Input	Voltage Range	88 ~ 132VAC/176V~264VAC (selected by a switch) or 255 ~ 370VDC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	85%
	AC Current (Typ.)	3.2A/115V AC 1.6A/230V AC
	Inrush Current (Typ.)	Cold start: 35A
	Leakage Current	<3.5mA/240V AC
Protection	Overload	105~150% rated output power Protection type: Shut down output voltage, re-power on to recover.
Protection	Overvoltage	30~34.8V Protection type: Shut down output voltage, re-power on to recover.
Environment	Working Temperature	-10 ~ +60℃
	Working Humidity	20~90% RH non-condensing
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH non-condensing
	Temperature Coefficient	±0.03%/℃ (0~50℃)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Safety & EMC (Note 4)	Safety Standards	UL1012 Approved
	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
	EMC Emission	Compliance to FCC Part 15 J conduction Class B
	EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industry level, criteria A
Others	MTBF	≥286.7K hrs MIN. MIL-HDBK-217F (25℃)
	Dimension	19911050mm (LWH)
	Weight	0.8kg
Note	1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

Application

Household Appliances

Factory Equipment

Monitoring Equipment

Power Tools

FAQ

Q1: What equipment is this SMPS suitable for?

This SMPS is suitable for a wide range of equipment including LED lighting, industrial control devices, security surveillance cameras, 3D printers, CNC machines, communication equipment, audio and video devices, instruments, and various electronic DIY projects, providing stable and reliable DC power for long‑term continuous operation.

Q2: Does this SMPS have certification?

Yes, this SMPS has CE, FCC and RoHS certifications, ensuring safety, electromagnetic compatibility and environmental protection compliance for industrial and commercial use.
