3-Wire 3 Phase SCR Power Controller, 380VAC

Q1: What is 3 phase power controller?

Three-phase power controller is a power regulation device used in three-phase AC circuits. It typically uses a thyristor (SCR) as its core component. By controlling the conduction angle of the thyristor, it can precisely regulate the output voltage, current, or power, thereby achieving control functions such as soft start, speed regulation, and temperature regulation for 3 phase loads (such as motors, heaters, etc.). At the same time, it is equipped with protection mechanisms against overcurrent and short circuits, and is widely used in scenarios requiring stable three-phase power regulation, such as industrial heating and motor control.

Q2: What precautions should be followed when using 3-wire power controller?

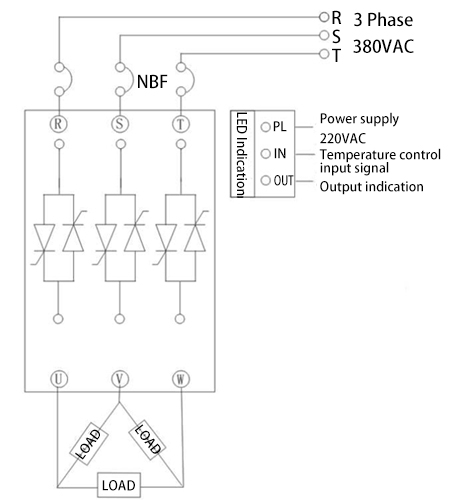

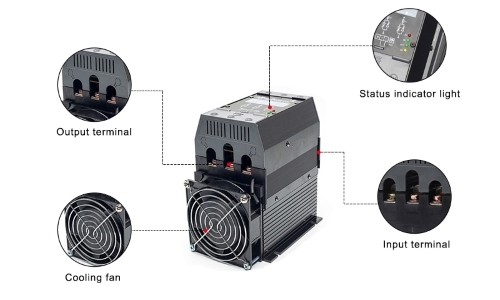

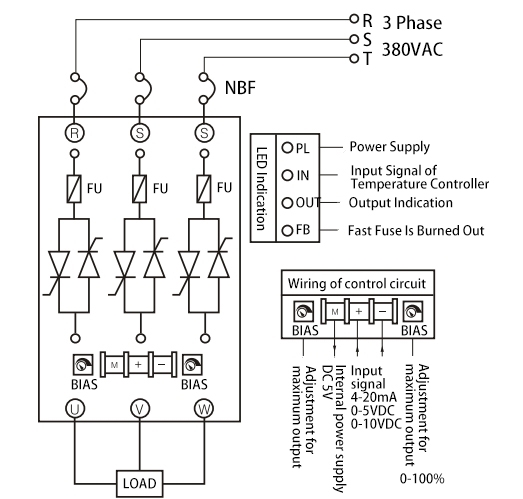

When using this three-phase power controller, you need to observe the following key precautions: the main circuit uses a 3-phase 3-wire input with no phase sequence required; since the SCR is a high-current component, be sure to securely lock the (R.S.T) and (U.V.W) terminals, otherwise the terminals will overheat and even burn out the SCR; the device has a built-in fast fuse for overcurrent and short-circuit protection—if the fuse blows due to overcurrent, first check the load for faults such as short circuits or partial discharges, then open the panel to replace it with a fuse of the same specification after troubleshooting, and never arbitrarily increase the fuse's rated current; when using the Y-type wiring method, the neutral point must not be connected to the neutral line, otherwise the SCR will lose control, but if the three-phase load is unbalanced, the neutral point must be connected to the neutral line.
