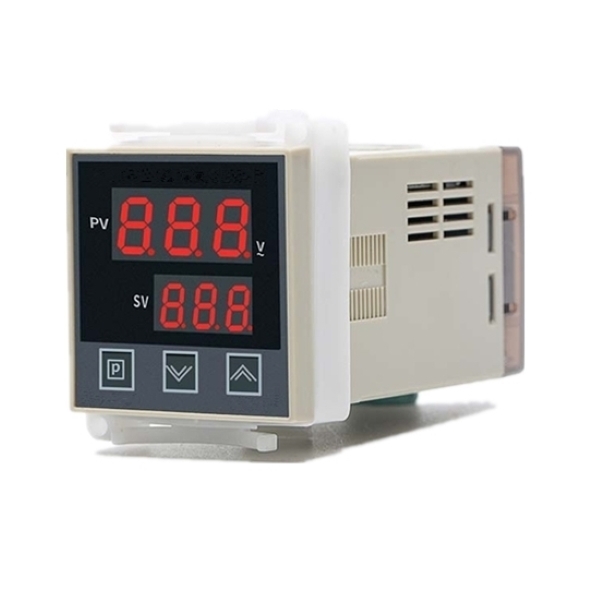

Digital SCR Voltage Regulator, 220VAC

0 review(s) | Add your review

SKU: PH-VRG-220

$82.81

● Supports wide range adjustment of 0–220VAC, and achieves precise continuous voltage regulation through advanced phase-shift triggering. ● Adopting voltage negative feedback technology, provides precision and high anti-interference ability. ● 3 types of control output, can be selected to adapt to different loads. ● ABS shell and anti-oxidation tinned circuit board are sturdy and durable.

Control Output Type *
Model *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Digital voltage regulator delivers precise, continuous load voltage adjustment via advanced phase-shift triggering, with a 0–220VAC range and three selectable control output types. Engineered for stabilized voltage output, it boasts compact size, high precision, robust seismic resistance, and cost-effective performance—ideal for industrial heating, lighting control, and power distribution applications.

Feature

Voltage Stability: Adopting voltage negative feedback to achieve stable AC output.
Robust Construction: The durable outer casing and reliable components ensure stable operation in harsh industrial environments, with strong resistance to vibration and electromagnetic interference.
Compact Design: Fits standard openings, can be seamlessly integrated into the control panel, and saves valuable cabinet space.

Details

Dual-line LED Display: Real-time monitoring of process value (PV) and set value (SV), using clear, high-brightness red numbers for easy instant status checking and precise operation.
Intuitive Control Interface: Equipped with three dedicated buttons, it allows for easy parameter adjustment and mode switching, reducing operational complexity.
Standardized Terminal Blocks: The terminals are clearly marked to ensure safe and error-free installation and support quick integration into industrial control systems.

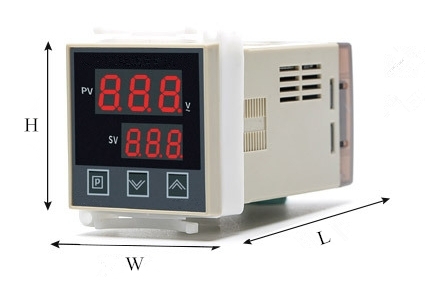

Digital Voltage Regulator Dimension Drawing Example (Unit: mm)

Digital SCR Voltage Regulator Dimension Drawing Example

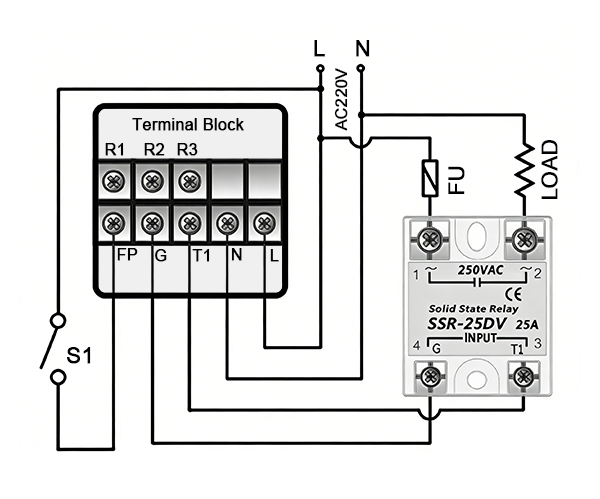

Digital Voltage Regulator Wiring Diagram

Digital SCR Voltage Regulator Wiring Diagram

Specs

Model	PH-ZKG-2000-1	PH-ZKG-3000-2B	PH-ZKG-300-3B	PH-ZKG-2000A-2A	PH-ZKG-2000A-3A	PH-ZKD-6000-2A	PH-ZKD-6000-3A
Control Output Type	Control SSR-DV Module	Control 1 pc of Two-Way controlled Silicon	Control 2 pc of Antiparallel SCR or 1 pc of SKKT	Control 1 pc of Two-Way controlled Silicon	Control 2 pc of Antiparallel SCR or 1 pc of SKKT	Control 1 pc of Two-Way controlled Silicon	Control 2 pc of Antiparallel SCR or 1 pc of SKKT
Overall Dimension (LWH)	48mm48mm90mm	48mm48mm107mm		48mm48mm75mm		72mm72mm120mm
Opening Dimension (L*W)	45mm*45mm	45mm*45mm		45mm*45mm		67mm*67mm
Working Voltage	AC 220V 50Hz (Other voltages can customize)
Adjustment Range	0-220VAC
Ambient Temperature	-5℃~40℃
Relative Humidity	≤85% in non corrosive gas occasion
Main Output Characteristic	Stabilized Voltage Output
Certification	CE
Installation Mode	Panel Type
Power Consumption	3W

Application

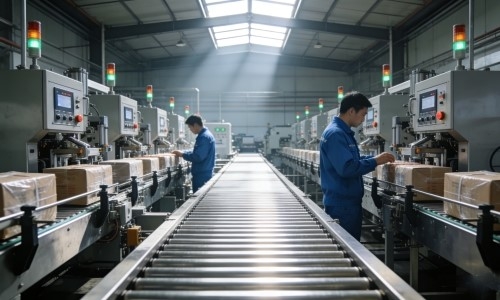

Packaging Machinery

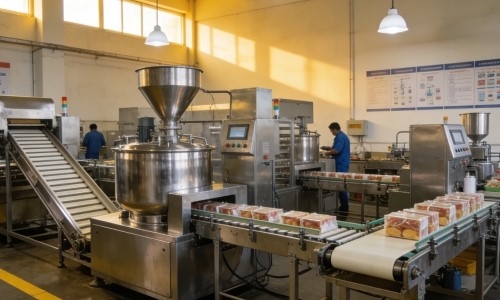

Food Machinery

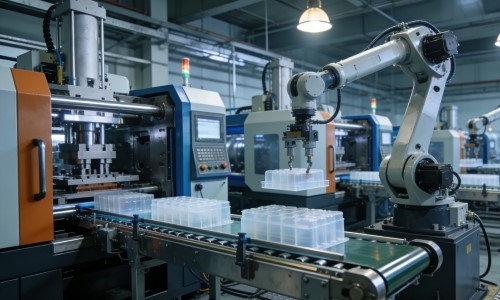

Plastic Machinery

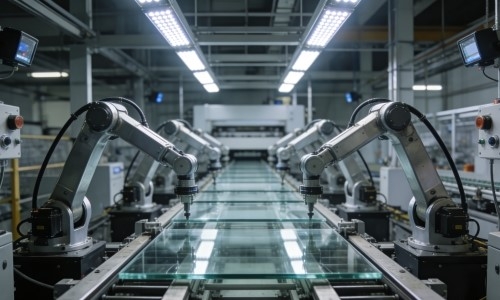

Glass Machinery

FAQ

Q1: Does digital voltage regulator require additional heat dissipation device?

When operating normally within the rated power range, there is no need to install additional heat dissipation devices; when used under long-term full load, high load, or in a closed and high-temperature environment, it is recommended to use it with a heat sink or a small cooling fan, which can further improve stability and service life.

Q2: What should I do when the digital voltage regulator displays abnormally?

When a display abnormality occurs, first check whether the power input is stable and whether the terminal blocks are secure. Focus on checking whether the trigger signal line is reversely connected or loose. If the wiring is normal, you can try to restore the factory settings. If the problem is still not solved, please contact our technical support.
