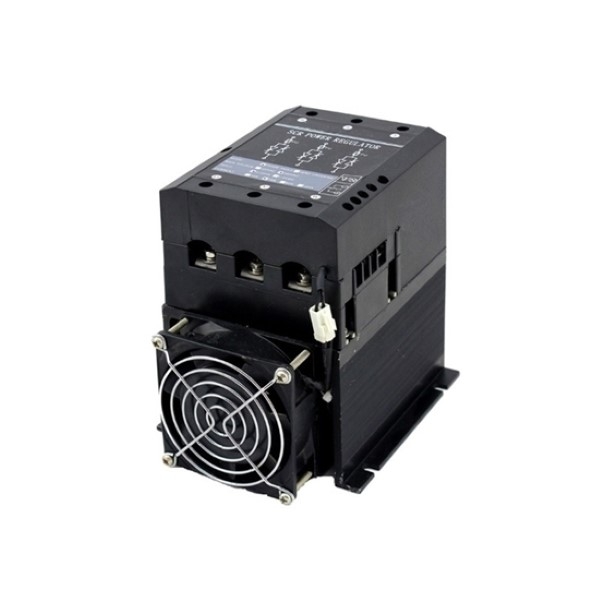

    4-Wire 3 Phase SCR Power Controller, 380VAC

    0 review(s) | Add your review
    SKU: PH-PRG-4340
    $192.62
    ● Supports 3 phase 4-wire 380VAC input, with multiple current specifications available. ● Built-in dual control modes of phase and zero-crossing, meeting the needs of industrial electricity usage in various scenarios. ● Compatible with constant impedance, variable impedance loads, and infrared lamps. ● Equipped with a fan for efficient heat dissipation, ensuring long-term stable operation.
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    3-Wire 3 Phase SCR Power Controller, 380VAC

    ● Linear phase-shifting temperature and voltage control, supporting multi-signal/mode switching, suitable for 380V three-phase industrial scenarios. ● Built-in quick-acting fuses, combined with anti-overheating and anti-short-circuit terminals, ensuring safety and reliability. ● High-airflow fans optimize heat dissipation, ensuring durability and long service life, significantly extending the lifespan of components. ● Multi-functional LED provides real-time status feedback.
    $187.46

    3-Wire 3 Phase Thyristor Power Regulator, 75-250A

    ● 380V thyristor power regulator offers rated current options ranging from 75A to 250A. ● Supports 4-20mA/0-5V/0-10V, compatible with mainstream automation systems. ● Built-in cooling fan, dual protection against overcurrent and overtemperature. ● Linear phase-shifting for precise temperature control, offering high cost performance for the whole machine.
    $332.69

    4 Wires 3 Phase AC Power Regulator, 6kW to 24kW

    ● Three-phase 380V input, compatible with 6/9/12/24kW power, it is a professional SCR power regulating device for industrial scenarios. ● Supports 4-20mA/0-5VDC/0-10VDC multi-signal control. ● SMD process PCB board with separate control, resistant to high voltage and interference. ● Compact size with high-efficiency cooling fan, ensuring continuous and stable operation under high load.
    $142.38

    Digital SCR Voltage Regulator, 220VAC

    ● Supports wide range adjustment of 0–220VAC, and achieves precise continuous voltage regulation through advanced phase-shift triggering. ● Adopting voltage negative feedback technology, provides precision and high anti-interference ability. ● 3 types of control output, can be selected to adapt to different loads. ● ABS shell and anti-oxidation tinned circuit board are sturdy and durable.
    $82.81

    Mini Single-Phase Power Regulator, AC 220V

    ● Applied to resistive or inductive loads. ● Small size combined with strong anti-interference function, with remarkable effect. ● Maximum support for 40A current, with integrated overheat protection function. ● Support 4-20mA/0-10V potentiometer undisturbed switching.
    $154.65

    SCR Power Regulator, 1-Phase, 0-5V/0-10V/4-20mA

    ● Universally adapt to 220V and 380V voltages, simplifying the installation process. ● Supports 4–20mA, 0–5VDC, 0–10VDC signals as well as manual potentiometer signals, facilitating flexible integration. ● Linear phase-shift control circuit is adopted to ensure high stability and precise temperature regulation. ● Equipped with a quick-acting fuse to provide overcurrent protection, featuring safety and durability.
    $130.89
    Overview

    4-wire SCR power controller is an efficient choice for precise temperature and voltage control in industrial scenarios. It supports three-phase 4-wire 380VAC input, offers multiple current specifications for selection. It has built-in dual modes of phase control and zero-crossing control, which can not only ensure stable output but also achieve no harmonic interference. Equipped with built-in fuse protection and an ultra-simple wiring design, it has strong durability and convenient maintenance. It can safely adapt to various scenarios such as constant impedance, variable impedance loads, and infrared lamps, providing protection for the operation of your equipment.

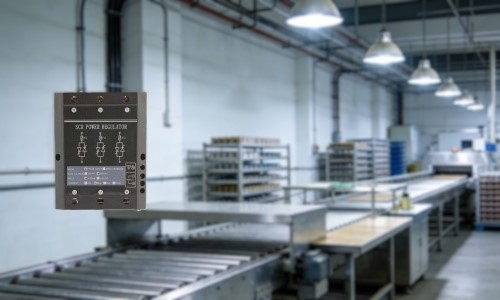

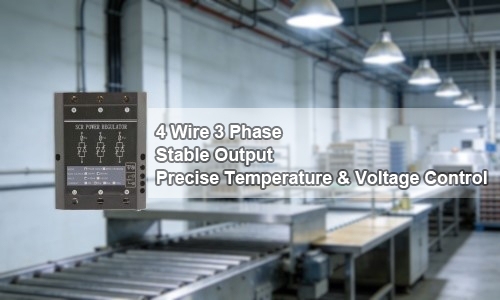

    4-Wire 3 Phase SCR Power Controller Feature

    Feature

    • Stable Output: Adopting continuous cross-regulation, the ammeter has no jitter throughout the process.
    • Phase Control Adaptability: Constant impedance loads, variable impedance loads, and infrared lamps can all be driven stably.
    • Zero-crossing Control: Using distributed precise regulation, the minimum resolution can reach 1Hz, with no harmonic interference throughout the process.

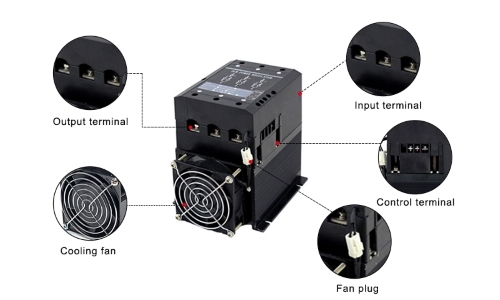

    Details

    1. Clear Partition Terminals: Input, output and control terminals are independently separated with clear markings, reducing wiring errors.

    2. Efficient Heat Dissipation: Integrated cooling fan quickly dissipates heat, boosting long-term stability and extending service life.

    3. Compact Integrated Structure: All-in-one design combines power control, heat dissipation and wiring, saving space for easy cabinet installation.

    4-Wire 3 Phase SCR Power Controller Details

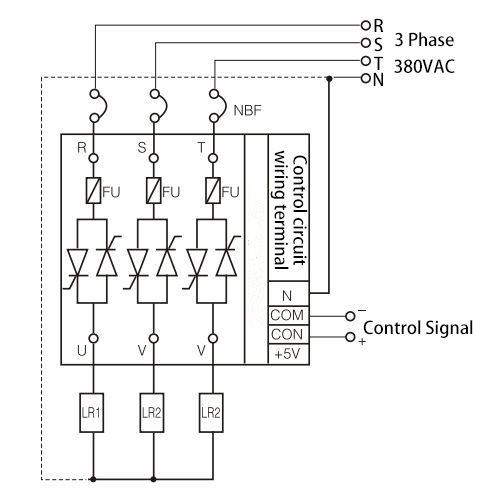

    Wiring Diagram of 4-Wire SCR Power Controller

    4-Wire 3 Phase SCR Power Controller Wiring Diagram

    Phase Output of SCR Power Controller

    Specs
    Model PH-PRSCR-LA
    Rated Voltage 3 Phase 380VAC, Fan 220VAC
    Wiring 3-Phase 4-Wire
    Rated Current (Should be at least twice the actual current) 40A, 75A, 90A, 120A
    Control Signal 4-20mA, 0-5VDC, 0-10VDC
    Protection Function Fast fuse
    Operation Frequency 50Hz/60Hz
    Certification CE
    Outline Dimension (L*W*H) 130mm*126mm*152mm
    Installation Dimension (L*W) 90mm*116mm
    Output Mode Phase output
    Use Environment Temperature<45℃, humidity<90%RH
    Application
    Solar Energy Storage Battery

    Solar Energy Storage Battery

    Precision Medical Equipment

    Precision Medical Equipment

    Household Appliances

    Household Appliances

    Industrial Equipment

    Industrial Equipment

    FAQ

    Q1: What is a 4-wire power controller?

    4-wire power controller is a three-phase power regulating device, mainly used for precise control of voltage and power in industrial loads. It supports stable voltage regulation and reliable driving, features standardized wiring and high safety, and can be adapted to various industrial heating, lighting, and resistive load scenarios.

    Q2: What is the difference between phase control and zero-crossing control?

    Phase control can continuously adjust the output, operates stably without jitter, but generates a small amount of harmonics; zero-crossing control turns on at the zero-crossing point of the voltage, has no harmonic interference, is more environmentally friendly, but has slightly lower adjustment accuracy and slight fluctuations in output. Users can choose the corresponding mode according to the load type and usage requirements.
