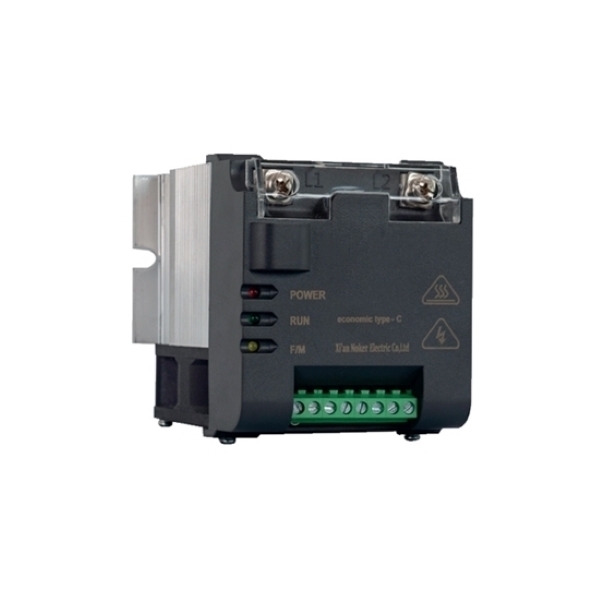

    Mini Single-Phase Power Regulator, AC 220V

    1 review(s) | Add your review
    SKU: PH-PRG-GS40
    $154.65
    ● Applied to resistive or inductive loads. ● Small size combined with strong anti-interference function, with remarkable effect. ● Maximum support for 40A current, with integrated overheat protection function. ● Support 4-20mA/0-10V potentiometer undisturbed switching.
    đźšš Free shipping
    ⏱️ Delivery: 6-12 days
    đź”™ 30-day Returns
    Related products

    SCR Power Regulator, 1-Phase, 0-5V/0-10V/4-20mA

    ● Universally adapt to 220V and 380V voltages, simplifying the installation process. ● Supports 4–20mA, 0–5VDC, 0–10VDC signals as well as manual potentiometer signals, facilitating flexible integration. ● Linear phase-shift control circuit is adopted to ensure high stability and precise temperature regulation. ● Equipped with a quick-acting fuse to provide overcurrent protection, featuring safety and durability.
    $130.89

    3-Wire 3 Phase SCR Power Controller, 380VAC

    ● Linear phase-shifting temperature and voltage control, supporting multi-signal/mode switching, suitable for 380V three-phase industrial scenarios. ● Built-in quick-acting fuses, combined with anti-overheating and anti-short-circuit terminals, ensuring safety and reliability. ● High-airflow fans optimize heat dissipation, ensuring durability and long service life, significantly extending the lifespan of components. ● Multi-functional LED provides real-time status feedback.
    $187.46

    4-Wire 3 Phase SCR Power Controller, 380VAC

    ● Supports 3 phase 4-wire 380VAC input, with multiple current specifications available. ● Built-in dual control modes of phase and zero-crossing, meeting the needs of industrial electricity usage in various scenarios. ● Compatible with constant impedance, variable impedance loads, and infrared lamps. ● Equipped with a fan for efficient heat dissipation, ensuring long-term stable operation.
    $192.62

    3-Wire 3 Phase Thyristor Power Regulator, 75-250A

    ● 380V thyristor power regulator offers rated current options ranging from 75A to 250A. ● Supports 4-20mA/0-5V/0-10V, compatible with mainstream automation systems. ● Built-in cooling fan, dual protection against overcurrent and overtemperature. ● Linear phase-shifting for precise temperature control, offering high cost performance for the whole machine.
    $332.69

    4 Wires 3 Phase AC Power Regulator, 6kW to 24kW

    ● Three-phase 380V input, compatible with 6/9/12/24kW power, it is a professional SCR power regulating device for industrial scenarios. ● Supports 4-20mA/0-5VDC/0-10VDC multi-signal control. ● SMD process PCB board with separate control, resistant to high voltage and interference. ● Compact size with high-efficiency cooling fan, ensuring continuous and stable operation under high load.
    $142.38

    Digital SCR Voltage Regulator, 220VAC

    ● Supports wide range adjustment of 0–220VAC, and achieves precise continuous voltage regulation through advanced phase-shift triggering. ● Adopting voltage negative feedback technology, provides precision and high anti-interference ability. ● 3 types of control output, can be selected to adapt to different loads. ● ABS shell and anti-oxidation tinned circuit board are sturdy and durable.
    $82.81
    Overview

    Mini 1-phase power regulator is a high-performance compact 40A unit expertly engineered for resistive & inductive loads, boasting ultra-mini size and industrial-grade super anti-interference as core selling points. The perfect professional solution for industrial heating, motor soft start and more application scenarios, this voltage regulator supports linear phase-shifting voltage regulation and fixed/variable cycle output, with full compatibility for 4-20mA/0-10V signal input and potentiometer control—delivering seamless, precise operation for diverse industrial control needs.

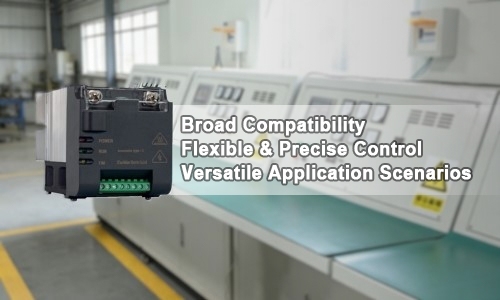

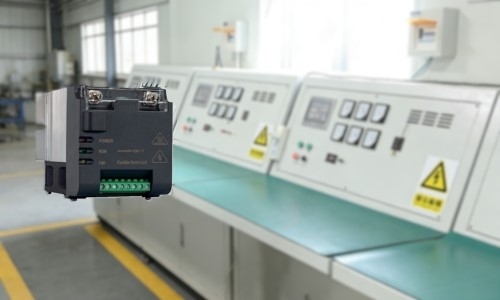

    Mini Single-Phase Power Regulator Feature

    Feature

    • Broad Compatibility: 40A single-phase mini design, perfectly adapts to resistive and inductive loads with strong versatility for diverse industrial application scenarios.
    • Flexible & Precise Control: Supports phase-shift voltage regulation and fixed/variable cycle output; enables seamless, interference-free switching between local and remote control, and is fully compatible with 4-20mA/0-10V signals.
    • Versatile Application Scenarios: Ideal for industrial heating, motor soft start, small industrial equipment regulation and other single-phase power control scenarios, meeting the diverse power regulation needs of light and medium industrial production.

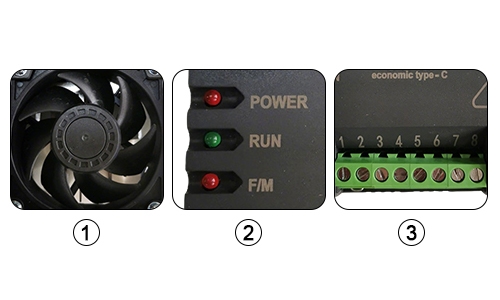

    Details

    1. Cooling fan is equipped with a built-in integrated overheat protection function, ensuring safe use without overheating.
    2. Operation indicator lights allow you to check the device status at any time.
    3. Clear wiring instructions enable quick and error-free setup.
    Mini Single-Phase Power Regulator Details

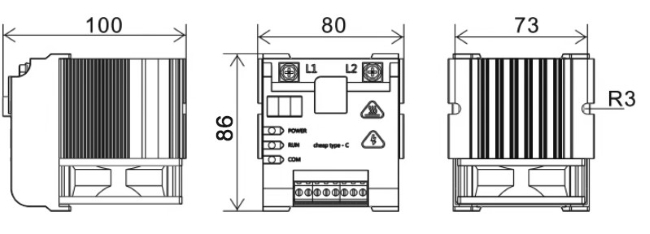

    Mini Power Regulator Dimension (Unit: mm)

    Mini Single-Phase Power Regulator Dimension

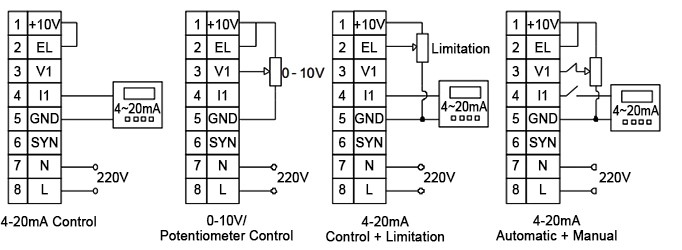

    Mini Power Regulator Wiring Diagram

    Mini Single-Phase Power Regulator Wiring Diagram

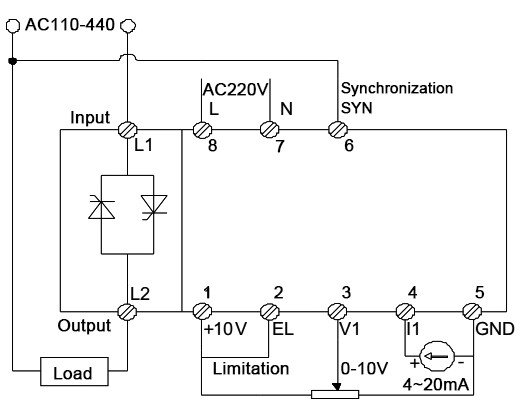

    Mini Power Regulator Wiring Principle

    Mini Single-Phase Power Regulator Wiring Principle

    1 +10V +10V power supply, with an external 10K potentiometer
    2 EL Signal limit terminal, short-circuit allowed at any time
    3 V1 Analog voltage input: 0-10V
    4 l1 Analog current input: 4-20mA
    5 GND Analog input common terminal
    6 SYN Synchronous signal line (Must be connected correctly)
    7 N Control power input: AC220V, Pmax5W
    8 L ---
    Specs
    Model PH-GS40
    Control Signal Input (Voltage) Analog voltage: 0~10V
    Control Signal Input (Current) Analog current: 4~20mA
    Control Signal Input (Accessory) External potentiometer: 10KΩ (external connection required)
    Power Supply AC220V, Pmax≤5W
    Maximum Current 40A
    Protection Function Overcurrent protection
    Dimension 100*80*73mm
    Weight 200g
    Indicator Light POWER (Red): Power indicator
    Run (Green): Steady on=stopped; Blinking=running(faster blink with larger input)
    F/M (Yellow): Overheat protection
    Application
    Solar Energy Storage Battery

    Solar Energy Storage Battery

    Precision Medical Equipment

    Precision Medical Equipment

    Household Appliances

    Household Appliances

    Industrial Equipment

    Industrial Equipment

    FAQ

    Q1: How does a voltage power regulator work?

    A voltage regulator maintains a stable output voltage despite fluctuations in input voltage or load changes; linear regulators dissipate extra voltage as heat through a resistive path, while switching regulators rapidly switch power transistors on and off and use inductors and capacitors to transfer energy efficiently without wasting large amounts of power as heat.

    Q2: How to check power regulator for loose connections?

    To check for loose connections on your power regulator, first disconnect it from the mains supply and wait 5–10 minutes to discharge residual electricity for safety; then use a screwdriver to gently tighten main circuit, control signal, and grounding terminals one by one, paying extra attention to discolored or scorched spots that signal potential loose or overheated connections; finally, confirm input/output cables are firmly plugged in and free of fraying or loose strands, re-securing any wobbly connectors right away.
