3 Phase AC Line Reactor, 3 HP Input

SKU: PH-ILR-2d2

$244.54

● 3HP/2.2 kW/7A line reactor offers wide 220V–480V voltage compatibility for global systems. ● Class H enameled wire ensures stable performance under high thermal loads. ● 1.5x rated current overload safeguards against transient load spikes and surges. ● Vacuum impregnation and epoxy casting deliver superior moisture resistance, vibration damping, and heat dissipation.

Voltage *
Material *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Powerhome 3HP AC input line reactor offers versatile voltage compatibility (220V–480V) to fit global industrial setups. Featuring robust construction, low noise, and superior thermal resistance, it safeguards your VFD from current spikes and harmonic interference while ensuring stable, long-lasting performance. With factory-direct pricing, this high-quality reactor delivers unbeatable value for industrial applications, combining durability, efficiency, and peace of mind in one compact solution.

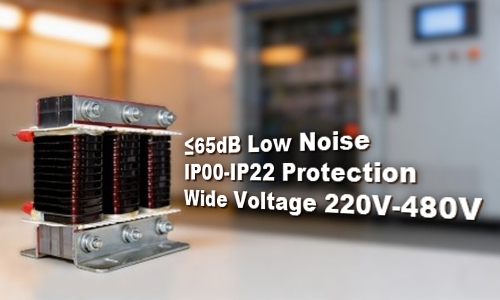

Feature

Stress Resistant Design: Built to withstand industrial vibration and temperature swings, minimizing downtime and maintenance needs.
Flexible Voltage Options: Supports optional 220V-480V to match global power grids.
Wide Temperature Resilience: Operates from -25°C to +45°C (running ambient) with ≤85K temperature rise, resisting extreme thermal stress.

Details

Full insulation penetration for maximum moisture resistance and long-term reliability.
Unmatched mechanical strength, vibration resistance, and heat dissipation to withstand stress and temperature swings.
180°C heat resistance keeps the reactor stable under high thermal loads for extended service life.

3 HP Input Line Reactor Dimension

3 HP Input AC Line Reactor Dimension

Dimension (±5mm)
L	D	W	W1	H	A×B
115mm	90mm	95mm	68mm	135mm	6×11

3 HP Input Line Reactor Circuit Diagram

3 HP Input AC Line Reactor Circuit Diagram

Specs

Model		PH-ACR-0007-2M00-0.4SC
Basic	Phase	3 Phase
	Power	3 hp (2.2 kW)
	Weight	2.6 kg
Technical Parameters	Work Voltage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	7A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	2 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altitude	≤2000m

Application

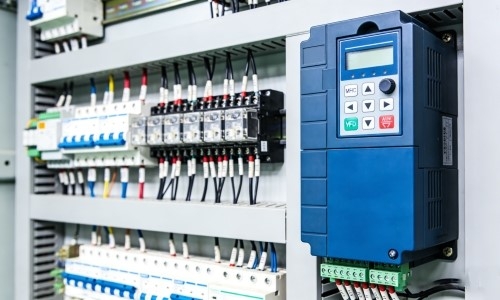

AC Reactor for VFD

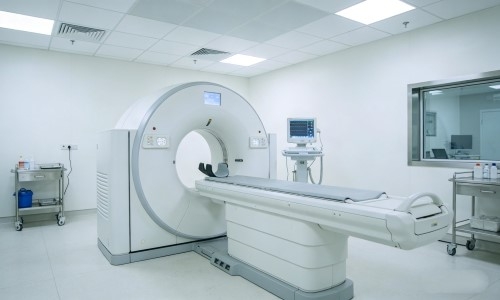

AC Reactor for Medical Imaging Equipment

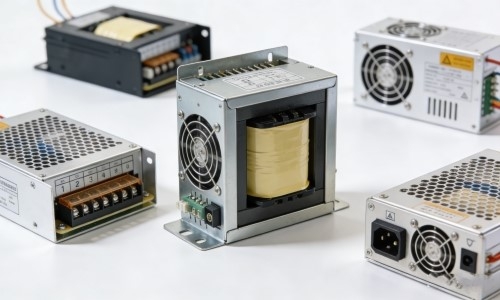

AC Reactor for Switching Power Supply

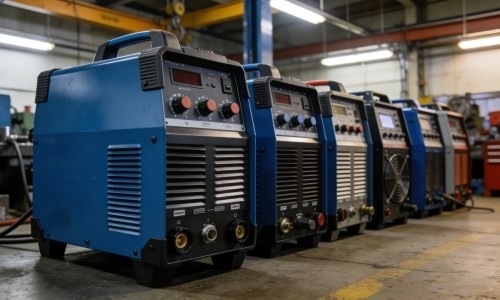

AC Reactor for Inverter Welding Power Supply

FAQ

Q1: Can I use one AC input reactor for multiple VFDs on the same bus?

Yes, you can use a single AC input reactor for multiple VFDs on the same bus, but its current rating must be sized for the sum of the rated input currents of all drives. You should also consider system coordination, harmonic distribution, and potential mutual interference between the drives.

Q2: Will an AC input reactor help reduce EMI from my power supply?

Sure, an AC input reactor effectively suppresses high-frequency harmonics and surge currents, which significantly reduces conducted EMI generated by rectifiers and switching power supplies, improving electromagnetic compatibility of the entire system.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Rocco | Date: 9/3/2026 1:50 AM

3 Phase Line Reactor for Industrial VFD Applications

I installed this 3 HP 3-phase line reactor on my industrial VFD setup and it has been working well. It helps smooth out current spikes and reduce harmonic noise. The H-class enameled wire and vacuum-impregnated construction feel solid, with low vibration and quiet operation. It works with 220–480V systems and was straightforward to install.
