3 Phase AC Line Reactor, 5 HP Output

Feature

• Wide operating temperature range and high altitude tolerance.
• Ultra-compact and lightweight (only 2.8kg) design.
• Less than 65dB ultra-quiet operation for smooth running.
• Flexible voltage customization to fit your unique project needs.

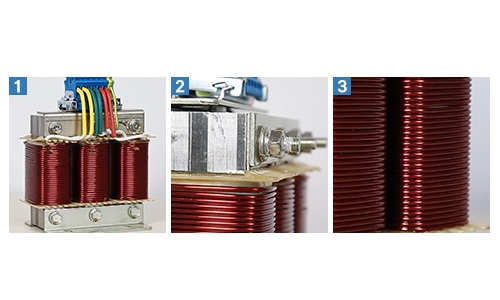

1. Vacuum Impregnation: Enhanced insulation, moisture & vibration resistance for long-term stability.
2. Epoxy Resin Casting: Sealed, impact-resistant encapsulation for maximum durability.
3. Class H Winding Wire: Superior high-temperature performance for heavy-duty operation.

5 HP Output Line Reactor Dimension

5 HP Output Line Reactor Circuit Diagram

Application

Servo Drive System

High-power LED Drive

UPS

Variable Frequency Drive

Q1: Will an AC input reactor help reduce EMI from my power supply?

Yes, an AC input reactor effectively suppresses high-frequency harmonics and surge currents generated by switching power supplies and rectifier circuits. It limits conducted interference on the power line, reduces electromagnetic radiation, improves system EMC performance, and helps the equipment meet relevant electromagnetic compatibility standards.

Q2: What happens if I don’t use an AC input reactor with a high-power VFD?

Without an AC input reactor, high-power VFDs may produce severe harmonic pollution, cause grid voltage distortion, and increase the risk of overheating or damage to the internal rectifier bridge. It can also lead to higher EMI, unstable operation, interference with nearby electrical equipment, and potential non-compliance with power quality regulations.
