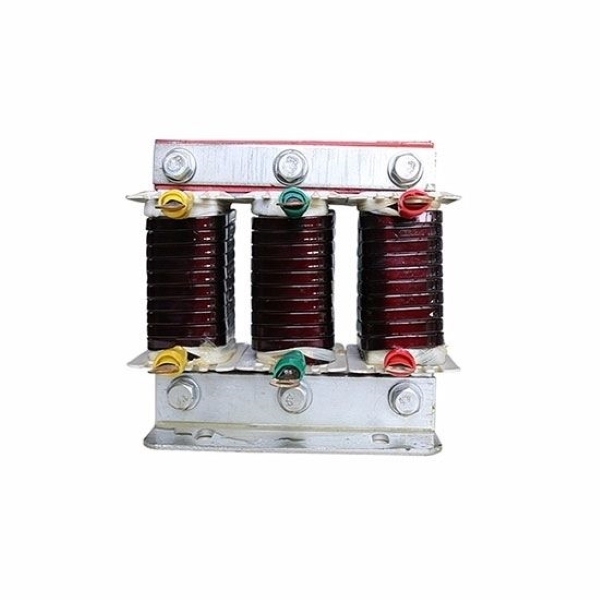

3 Phase AC Line Reactor, 5 HP Input

Feature

• Robust Current Capacity: Boasts a 10A rated current with 150% overload capacity (60s duration), delivering stable performance under peak load conditions.
• Minimal Voltage Loss: Maintains a low 2% voltage drop, ensuring efficient power transmission and minimal energy waste during operation.
• High Compatibility: Designed for 5 hp (3.7 kW) VFDs, ensuring seamless integration with variable frequency drive systems.

1. Advanced Vacuum Impregnation: Achieves full insulation saturation, boosting moisture resilience and long-term operational stability in harsh industrial conditions.
2. Premium Epoxy Resin Molding: Provides superior mechanical strength, anti-vibration performance, and efficient heat dissipation, protecting against mechanical stress and temperature fluctuations.
3. High-Grade Class H Enameled Wire: Features 180°C heat resistance, ensuring reliable reactor operation under high thermal stress and extending service life effectively.

5 HP Input Line Reactor Dimension

5 HP Input Line Reactor Circuit Diagram

Application

AC Reactor for VFD

AC Reactor for Medical Imaging Equipment

AC Reactor for Switching Power Supply

AC Reactor for Inverter Welding Power Supply

Q1: Does an AC input reactor affect the output voltage of my drive?

An AC input reactor causes a small voltage drop on the input side, which may slightly reduce the DC bus voltage and thus the maximum output voltage of the drive. Under normal operating conditions, this voltage drop is negligible and will not affect the regular operation of your motor or load.

Q2: What are the benefits of using an AC input reactor in a solar inverter system?

An AC input reactor stabilizes grid voltage fluctuations, suppresses harmonic distortion generated by the inverter, and improves overall power factor. It also enhances electromagnetic compatibility, reduces interference with other equipment, and helps the solar system meet grid connection standards for safer and more reliable operation.
