    Picture of 40 kVA Variac Transformer, Three Phase
    Picture of 40 kVA Variac Transformer, Three Phase
    Picture of 40 kVA Variac Transformer, Three Phase
    Picture of 40 kVA Variac Transformer, Three Phase

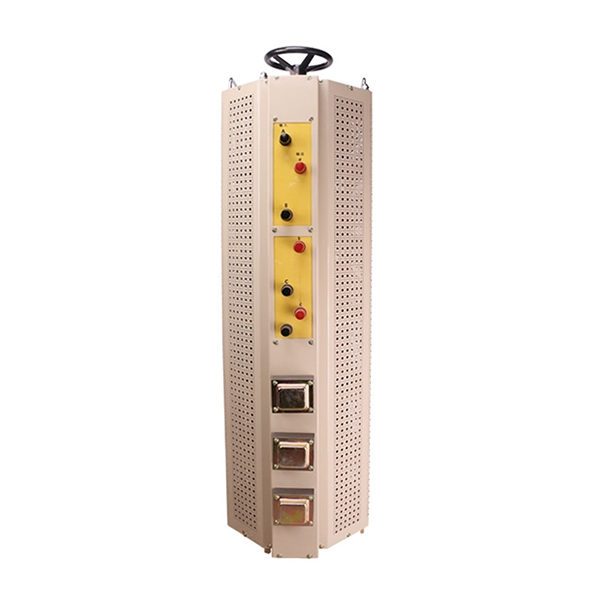

    40 kVA Variac Transformer, Three Phase

    0 review(s) | Add your review
    SKU: PH-VT-TH40K
    $3,989.59
    ● 40kVA rated power, 52 Amp rated current. ● 380V input, output selectable 0-430V AC or 0-500V AC, adjust from 0 to high. ● Built-in copper wires are densely arranged for enhanced performance and reliability. ● Protective painted enclosure extends service life and provides corrosion resistance. ● Low price intelligent 3-phase variac with voltage regulation function.
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    9 kVA Variac Transformer, Three Phase

    ● 3-phase variac transformer, 9 kVA rated capacity. ● Rated input voltage 380V; output voltage selectable from 0–430V or 0–500V to suit different application needs. ● Metal dashboard with adjustable voltage control. ● Built-in purple copper coil for superior conductivity and enhanced operational safety. ● Reliable variable transformer designed for stable, long-term use across diverse power supply environments.
    $1,123.68

    15 kVA Variac Transformer, Three Phase

    ● 15kVA rated capacity, and 20A rated output current. ● Output selectable 0-430V AC or 0-500V AC. 380V rated input voltage. ● Widely used in laboratories, railroad switch testing, packaging machinery, and aviation power supply. ● Supports voltage regulation, temperature control, speed control, dimming, and power control.
    $1,729.86

    20 kVA Variac Transformer, Three Phase

    ● 20kVA rated capacity. 27A rated full bias current. ● Output selectable 0-430V AC or 0-500V AC. 380V rated input voltage. ● Integrated heat sink holes for improved internal heat dissipation, increasing service life. ● High-quality copper transformer coil. Sturdy and durable build. ● Suitable for laboratories, factory equipment, foam cutting, and household electricity.
    $2,156.79

    30 kVA Variac Transformer, Three Phase

    ● Three-phase variac transformer, 30 kVA rated capacity, 40A rated current for heavy-load environments. ● Rated input voltage 380V; output voltage selectable from 0–430V or 0–500V. ● Metal shell construction with flame-retardant properties for enhanced safety and durability. ● Built-in copper wire for reliable conductivity and long-term operational stability. ● Supports voltage regulation, temperature control, speed regulation, dimming, and power control.
    $3,254.89

    50 kVA Variac Transformer, Three Phase

    ● 50 kilowatt rated power, 65A rated current. ● 380V input voltage, 0~430/500V output voltage selectable. ● Durable metal enclosure, strong heat dissipation capacity. ● Responsive and accurate voltage output meter with pointer display. ● Strong electrical conductivity, low resistivity, and strong thermal conductivity. ● Easy to install and suitable for laboratories and a wide variety of application environments.
    $5,462.78

    60 kVA Variac Transformer, Three Phase

    ● 3-phase variac transformer, 60 kVA rated capacity for high-demand power supply environments. ● Adjustable output voltage from 0 to 430V for flexible, precise voltage regulation. ● Built-in copper coil for high efficiency, strong conductivity, and long-term durability. ● Clear metal instrument panel with high design precision and compact structure. ● Widely applicable in laboratories, factory equipment, foam cutting, and household electricity.
    $6,389.89
    Overview

    Powerhome's 40 kVA 3-phase variac transformer delivers a powerful 52A-rated output current. Engineered with densely arranged copper windings, this industrial variable autotransformer ensures superior conductivity, reduced energy loss, and enhanced thermal stability under continuous heavy load. The stepless voltage adjustment mechanism allows smooth output increase from 0 up to 430V or optional 500V, meeting diverse industrial power requirements. The durable painted metal enclosure protects internal components and extends operational lifespan, making this variac ideal for harsh factory environments.

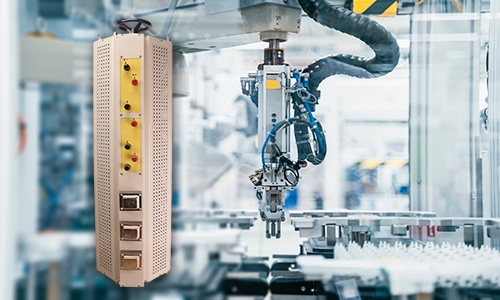

    40 kVA three-phase variac transformer feature

    Feature

    • 52A Maximum Industrial Capacity: The 52 Amp rated current delivers the highest capacity in the series, suitable for large-scale industrial infrastructure, major manufacturing facilities, and heavy-duty commercial power control.
    • Dense Copper Wire Arrangement: Built-in copper windings feature a dense, precision-wound configuration. This optimized arrangement enhances electrical conductivity and reduces hot spots.
    • Painted Shell: A protective painted enclosure provides corrosion resistance and durability in industrial environments.
    • Voltage Regulation Function: Core voltage regulation capability for precise control of three-phase AC power across diverse industrial applications.

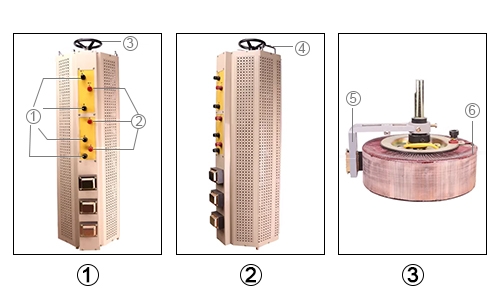

    Details

    1. Input Terminal Port
    2. Output Terminal Port
    3. Rotary Handle
    4. Carrying Handle
    5. Premium Carbon Brush
    6. Pure Copper Coil
    40 kVA three-phase variac transformer details
    Specs
    Phase 3-Phase
    Rated Power 40 kVA
    Input Voltage 380V
    Output Voltage 0~430V; 0~500V
    Frequency 50/60 Hz
    Rated Full Offset Current 52A
    Insulation Resistance ā‰„5 MĪ©
    Pressure Resistance 2000 V/1min
    Certificate CE
    Dimension (345Ɨ450Ɨ1100) mm
    Weight 160 kg
    Application
    Variac voltage regulator for machine speed control

    Machine Speed Control

    Variac voltage regulator for mechanical voltage boost

    Mechanical Voltage Boost

    Variac voltage regulator for current control

    Current Control

    Variac voltage regulator for withstand voltage test

    Withstand Voltage Test

    FAQ

    Q1: How is the output voltage adjusted on this 40 kVA three-phase variac transformer?

    The output voltage on this three-phase variable transformer is adjusted starting from 0 and increasing to the desired level, with a selectable maximum of either 430V or 500V from a 380V-rated input. This smooth, graduated adjustment capability gives operators precise control over power delivery across the full output range.

    Q2: What is the significance of the densely arranged copper wiring in this variac transformer?

    The densely arranged copper wires inside this 40 kVA three-phase variac voltage regulator are designed to maximize electrical conductivity and minimize internal resistance. This results in more efficient power transmission, lower heat buildup during operation, and a more stable, reliable output ā€” contributing directly to the unit's long-term performance and service life.
