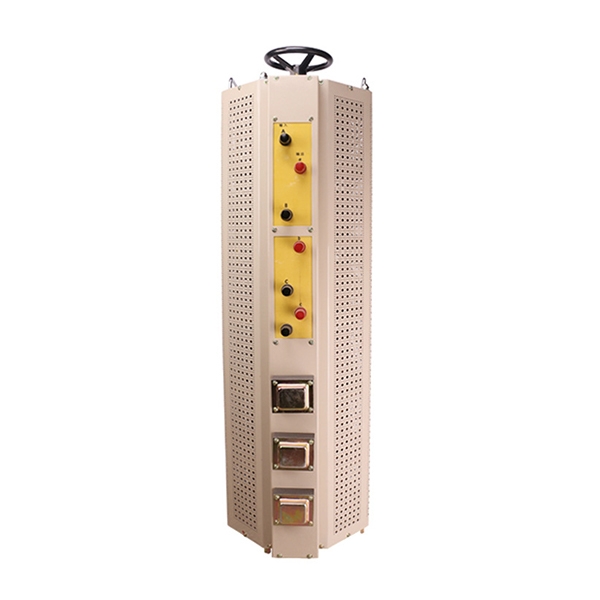

    Picture of 60 kVA Variac Transformer, Three Phase
    Picture of 60 kVA Variac Transformer, Three Phase
    Picture of 60 kVA Variac Transformer, Three Phase
    Picture of 60 kVA Variac Transformer, Three Phase

    60 kVA Variac Transformer, Three Phase

    0 review(s) | Add your review
    SKU: PH-VT-TH60K
    $6,389.89
    ● 3-phase variac transformer, 60 kVA rated capacity for high-demand power supply environments. ● Adjustable output voltage from 0 to 430V for flexible, precise voltage regulation. ● Built-in copper coil for high efficiency, strong conductivity, and long-term durability. ● Clear metal instrument panel with high design precision and compact structure. ● Widely applicable in laboratories, factory equipment, foam cutting, and household electricity.
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    9 kVA Variac Transformer, Three Phase

    ● 3-phase variac transformer, 9 kVA rated capacity. ● Rated input voltage 380V; output voltage selectable from 0–430V or 0–500V to suit different application needs. ● Metal dashboard with adjustable voltage control. ● Built-in purple copper coil for superior conductivity and enhanced operational safety. ● Reliable variable transformer designed for stable, long-term use across diverse power supply environments.
    $1,123.68

    15 kVA Variac Transformer, Three Phase

    ● 15kVA rated capacity, and 20A rated output current. ● Output selectable 0-430V AC or 0-500V AC. 380V rated input voltage. ● Widely used in laboratories, railroad switch testing, packaging machinery, and aviation power supply. ● Supports voltage regulation, temperature control, speed control, dimming, and power control.
    $1,729.86

    20 kVA Variac Transformer, Three Phase

    ● 20kVA rated capacity. 27A rated full bias current. ● Output selectable 0-430V AC or 0-500V AC. 380V rated input voltage. ● Integrated heat sink holes for improved internal heat dissipation, increasing service life. ● High-quality copper transformer coil. Sturdy and durable build. ● Suitable for laboratories, factory equipment, foam cutting, and household electricity.
    $2,156.79

    30 kVA Variac Transformer, Three Phase

    ● Three-phase variac transformer, 30 kVA rated capacity, 40A rated current for heavy-load environments. ● Rated input voltage 380V; output voltage selectable from 0–430V or 0–500V. ● Metal shell construction with flame-retardant properties for enhanced safety and durability. ● Built-in copper wire for reliable conductivity and long-term operational stability. ● Supports voltage regulation, temperature control, speed regulation, dimming, and power control.
    $3,254.89

    40 kVA Variac Transformer, Three Phase

    ● 40kVA rated power, 52 Amp rated current. ● 380V input, output selectable 0-430V AC or 0-500V AC, adjust from 0 to high. ● Built-in copper wires are densely arranged for enhanced performance and reliability. ● Protective painted enclosure extends service life and provides corrosion resistance. ● Low price intelligent 3-phase variac with voltage regulation function.
    $3,989.59

    50 kVA Variac Transformer, Three Phase

    ● 50 kilowatt rated power, 65A rated current. ● 380V input voltage, 0~430/500V output voltage selectable. ● Durable metal enclosure, strong heat dissipation capacity. ● Responsive and accurate voltage output meter with pointer display. ● Strong electrical conductivity, low resistivity, and strong thermal conductivity. ● Easy to install and suitable for laboratories and a wide variety of application environments.
    $5,462.78
    Overview

    High-capacity 60 kVA three-phase variac transformer with copper coil construction and precision metal instrument panel ā€” built for efficient, reliable voltage regulation in laboratories, factories, foam cutting, and household electricity. With a rated power of 60 kVA, this heavy-duty three-phase autotransformer delivers reliable performance for demanding 380V industrial power systems. The internal winding structure is optimized to reduce energy loss while maintaining stable output voltage from 0 to 430V AC.

    60 kVA three-phase variac transformer feature

    Feature

    • Copper Coil Construction: The built-in copper coil delivers superior electrical conductivity and efficient power transmission, minimizing energy loss and heat buildup.
    • Precision Instrument Panel: The clear, high-precision instrument panel provides intuitive, real-time voltage monitoring and adjustment.
    • 0ā€“430V Adjustable Output Range: With a continuously adjustable output from 0 to 430V, this three-phase variable transformer accommodates a broad spectrum of voltage regulation requirements.
    • Broad Application Versatility: Despite its 60 kVA capacity, the compact structural design makes this three-phase variac voltage regulator practical to deploy across diverse settings.

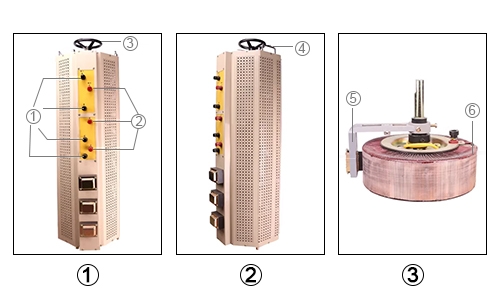

    Details

    1. Input Terminal Port
    2. Output Terminal Port
    3. Rotary Handle
    4. Carrying Handle
    5. Premium Carbon Brush
    6. Pure Copper Coil
    60 kVA three-phase variac transformer details
    Specs
    Phase 3-Phase
    Rated Power 60 kVA
    Input Voltage 380V
    Output Voltage 0~430V; 0~500V
    Frequency 50/60 Hz
    Rated Full Offset Current 80A
    Insulation Resistance ā‰„5 MĪ©
    Pressure Resistance 2000 V/1min
    Certificate CE
    Dimension (345Ɨ450Ɨ1100) mm
    Weight 300 kg
    Application
    Variac voltage regulator for machine speed control

    Machine Speed Control

    Variac voltage regulator for mechanical voltage boost

    Mechanical Voltage Boost

    Variac voltage regulator for current control

    Current Control

    Variac voltage regulator for withstand voltage test

    Withstand Voltage Test

    FAQ

    Q1: What makes the copper coil in this 60 kVA variac transformer beneficial?

    The built-in copper coil provides excellent electrical conductivity and energy efficiency, reducing heat generation and power loss during operation. This contributes directly to the transformer's durability and stable long-term performance under continuous load.

    Q2: What applications is this 60 kVA three-phase variable transformer suitable for?

    This variac transformer is widely used in laboratories, factory equipment, foam cutting systems, and household electricity environments. Its 0ā€“430V adjustable output and high 60 kVA capacity make it adaptable to a broad range of industrial and commercial voltage regulation needs.
