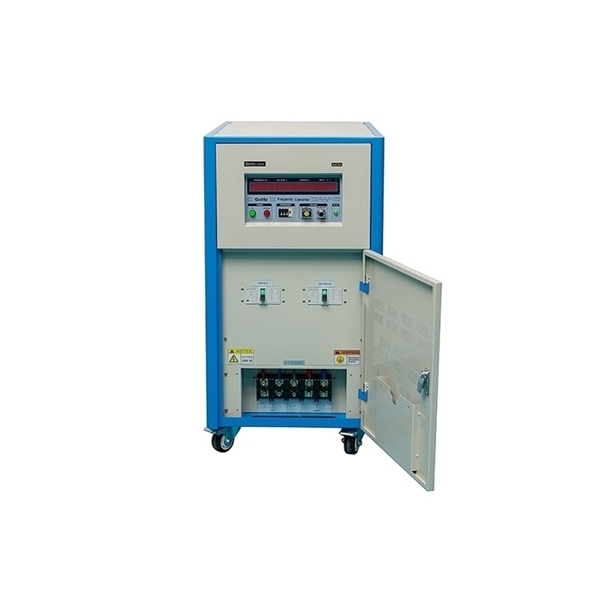

3kVA/10kVA Three Phase Frequency Converter, 208V 60Hz to 420V 50Hz

The 3 phase frequency converter provides adjustable three-phase voltage and frequency with stable pure sine wave output for reliable operation. It supports multiple input configurations and features real-time monitoring of voltage, current, power, and frequency via integrated digital displays. Widely used in laboratories, production lines, automotive and electronic testing, and 400Hz aerospace power systems, the AC frequency converter handles high inrush loads and includes comprehensive protection for safe operation.

Feature

• Static frequency converter supports 380VAC three-phase input with 50Hz/60Hz frequency and 0-520VAC three-phase output adjustable from 40-400Hz.
• Measures and displays voltage, frequency, current, and power simultaneously, with no switching required.
• Delivers clean, stable pure sine wave output, suitable for precision and sensitive equipment testing.
• Simulates global standard voltages and frequencies for testing a wide range of electrical products.
• Handles high inrush loads, with instantaneous current capacity up to 3× rated current.
• Equipped with over-current, over-temperature, short-circuit, and power-failure protection with alarm.
• Compatible with resistive, capacitive, inductive, and non-linear loads.

Details

1. 4-digit LED display shows voltage, frequency, current, and power simultaneously, no switching required.
2. High-resolution readout ensures clear visibility and accurate monitoring.
3. Adjustable output settings enable quick configuration for different applications.
4. Intuitive controls allow simple and convenient operation.
5. Built-in fault protection with error code display supports fast troubleshooting.

Dimension

Function Key Description

1. Output Frequency Display: Shows the current output frequency (Hz) for real-time monitoring.
2. Output Voltage Display: Indicates the current output voltage (V) to ensure it remains within the set range.
3. Output Current Display: Displays the output current (A) to monitor load conditions.
4. Output Power Display: Shows the output power (W) for quick evaluation of operating status.
5. Start Button: Press to start the unit and enable power output.
6. Stop / Reset Button: Press to stop the output immediately; after a fault or overload, press to reset once the issue is cleared.
7. Frequency Adjustment Button: Used to adjust the output frequency, typically within the 40Hz–400Hz range.
8. High / Low Voltage Range Switch: Press to switch voltage ranges; high range 150V–300V, low range 0–150V.
9. Voltage Adjustment Knob: Turn clockwise to increase output voltage and counterclockwise to decrease it.
10. Power Factor Selection: Used to switch or display the power factor mode for different load characteristics.
