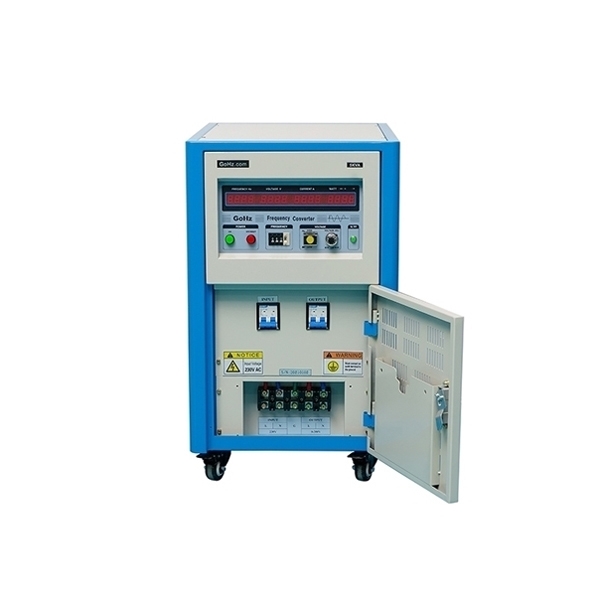

220v 60Hz to 220v 50Hz Frequency Converter, Single Phase, 5kVA

SKU: PH-SFC-5000

$3,207.99

● AC AC frequency converter with 5kVA power capacity supports high-load and continuous operation. ● High frequency stability ≤±0.01% with pure sine wave output and ≤2% harmonic distortion. ● Single-phase 110–240V input with selectable 50Hz, 60Hz, or 400Hz frequency. ● Adjustable 0–300V output with high current capability for flexible power applications.

Input Voltage *
Output Frequency *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The AC AC frequency converter 400Hz to 60Hz provides stable and accurate power conversion for professional and industrial use. It accepts single-phase 220VAC input and delivers adjustable 0-300VAC output with flexible frequency control from 40Hz to 400Hz, ensuring pure sine wave performance for sensitive equipment. Real-time voltage, current, power, and frequency monitoring is clearly displayed for convenient operation. Featuring high overload tolerance, multi-level adjustable settings, and comprehensive protection with fault alarms, this 1 phase frequency converter is well suited for aviation power systems, laboratory testing, electronics manufacturing, and international power compatibility applications.

Feature

Wide Input & Output Range: Single-phase 220VAC input with 50Hz/60Hz frequency, and adjustable single-phase 0–300VAC output with a wide frequency range of 40–400Hz.
Multi-Parameter Measurement Display: AC frequency converter simultaneously measures and displays voltage (V), frequency (Hz), current (A), and power (W) without manual switching.
Global Power Standard Simulation: Supports worldwide voltage and frequency standards for testing and simulation of various electrical and electronic products.
Pure Sine Wave Output: Provides clean, stable sine wave output for reliable operation of sensitive equipment.
High Overload Capability: Designed to handle instantaneous currents up to three times the rated current for demanding loads.
Comprehensive Protection & Alarm: Equipped with over-current, over-temperature, short-circuit, and instant power-off protection with alarm indication.
Wide Load Compatibility: Suitable for resistive, capacitive, inductive, and other non-linear loads.

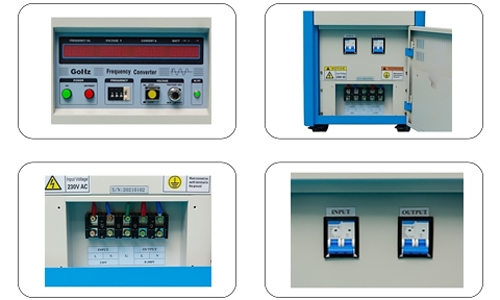

Details

Abnormal Protection Function: 5kVA frequency converter provides power anomaly protection with fault codes displayed for quick diagnosis and troubleshooting.
Multiple Safety Protections: Equipped with over-current, over-temperature, overload, short-circuit, and current-limiting protection for stable operation.
Multi-Level Adjustable Settings: Supports multiple adjustable levels for flexible configuration, with simple and user-friendly operation.

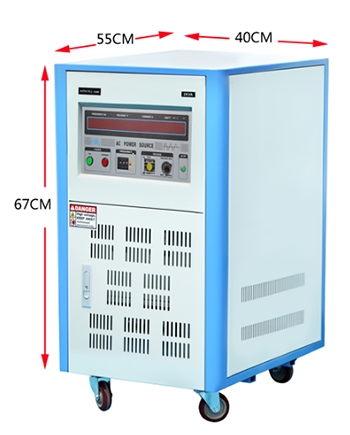

Dimension

Specs

Capacity	5kVA
Dimension	550 (D)400 (W)670 (H) mm
Weight	75kg
Input
Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output
Voltage, current	120V Setting (Low grade): 0-150V, 41.6A
Voltage, current	240V Setting 0-300V (High grade): 0-300V, 20.8A
Load stabilization Rate	≤±1%
Frequency	50Hz, 60Hz up to 400Hz adjustable
	Note:
	-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
	-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
	-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability	≤±0.01%
Harmonic Distortion	Pure Sine Wave ≤2%
Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter	4 digit, digital voltage meter, resolution 0.1V
Ammeter	4 digit, digital ammeter, resolution 0.1A
Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment
Temperature	0~40℃
Humidity	0~90% (Non condensation)
Warranty	18 months

Application

Electrical Engineering

Export Product Validation

Control Systems/Instruments

Equipment Repair Center

FAQ

Q1: Is this converter suitable for motor applications?

It can power single-phase motors within its rated capacity. For motor startup currents, it is recommended to select sufficient power margin to ensure reliable operation.

Q2: Does the converter display fault information?

Yes. In case of abnormal conditions, the unit displays fault codes and triggers alarms, helping users quickly identify and resolve issues.

Q3: Is special installation or wiring required?

No special installation is required. The converter is designed for standard single-phase AC power connections. Proper grounding and adequate ventilation space are recommended.
