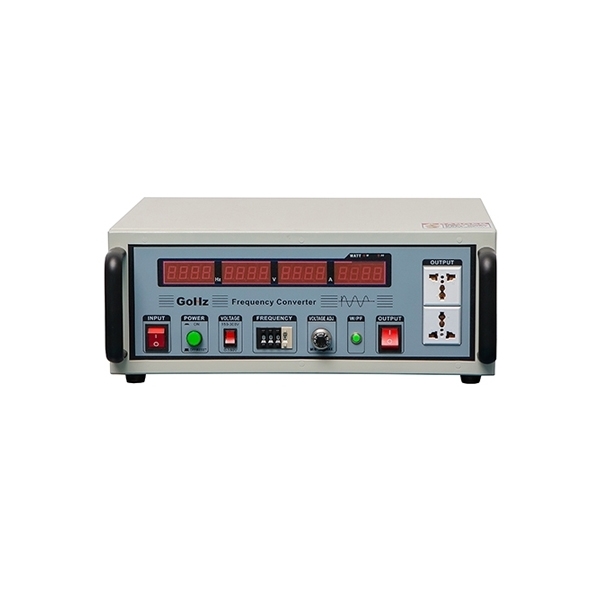

220V 50Hz to 110V 60Hz Frequency Converter, Single Phase, 500VA/1000VA

SKU: HZ-60-500W

$1,319.99

● 500VA/1000VA single-phase AC frequency converter, supports 110V/120V/220V/230V/240V input (±10%), with selectable 50Hz, 60Hz, or 400Hz input frequency. ● High output stability, load regulation within ±1%, ensuring stable and reliable power delivery for precision applications. ● 0-150V/0-300V adjustable output voltage and frequency. ● Overload, short circuit, and over-temperature protection, with instantaneous power failure protection and alarm function.

Power Capacity *
Input Voltage *
Output Frequency *

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Single phase converter provides precise voltage and frequency conversion for powering and testing equipment designed for different regional power standards. It supports a wide single-phase input voltage range with stable, adjustable output voltage and frequency, delivering a clean, low-distortion sine wave for reliable operation. With high output stability (±1% load regulation), fast response control, and a clear multi-parameter display, this AC frequency converter ensures accurate real-time monitoring and easy operation. Comprehensive protection functions, including overload, short circuit, over-temperature protection, and alarm indication, combined with a durable metal enclosure and efficient heat dissipation, make it an ideal solution for laboratories, maintenance, product testing, and export validation applications.

Feature

High-Precision Voltage and Frequency Stabilization: Frequency converter delivers stable and accurate voltage and frequency output with strong load adaptability.

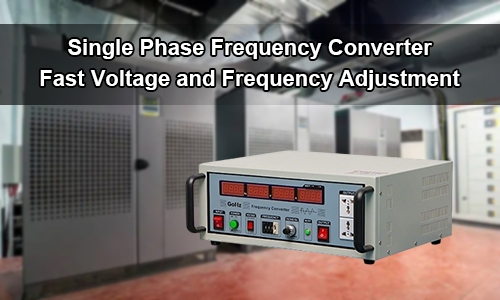

Fast Voltage and Frequency Adjustment: Supports rapid and precise adjustment of output voltage and frequency, providing quick response and simple operation for flexible testing and power supply applications.
High-Quality Output Waveform: Generates a clean, low-distortion sine wave output, minimizing interference and ensuring safe and accurate power delivery to connected equipment.

Details

Robust Metal Enclosure with Efficient Heat Dissipation: Single phase converter features a durable metal housing with corrosion resistance and deformation protection, combined with multi-directional ventilation design to enhance heat dissipation and ensure long-term stable operation.
High-Precision Voltage & Frequency Control: Ensures stable voltage and frequency output with fast adjustment, meeting the demands of precision power and testing applications.
Comprehensive Protection with Alarm Function: Built-in protection against over-temperature, over-current, and overload, with alarm indication to enhance operational safety and reliability.
High-Accuracy 4-Window Display: Features four independent display windows for simultaneous monitoring of key electrical parameters, providing clear and accurate real-time readings.

Function Buttons

Dimension

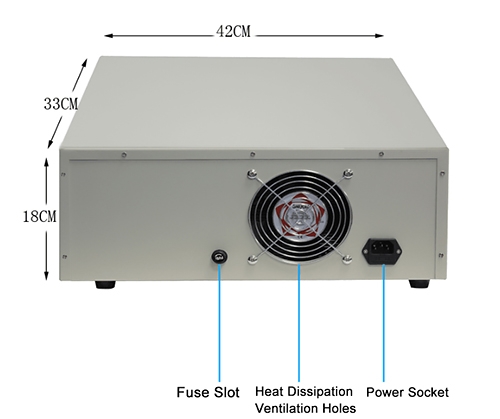

Frequency converter size

Specs

Capacity	500VA/1000VA
Dimension	420 (D)330 (W)180 (H) mm
Weight	40kg/45kg
Input
Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output
Voltage, current	120V Setting (Low grade): 0-150V, 4.2A/8.4A
Voltage, current	240V Setting 0-300V (High grade): 0-300V, 2.1A/4.2A
Load stabilization Rate	≤±1%
Frequency	50Hz, 60Hz up to 400Hz adjustable
	Note:
	-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
	-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
	-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability	≤±0.01%
Harmonic Distortion	Pure Sine Wave ≤2%
Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter	4 digit, digital voltage meter, resolution 0.1V
Ammeter	4 digit, digital ammeter, resolution 0.1A
Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment
Temperature	0~40℃
Humidity	0~90% (Non condensation)
Warranty	12 months

Application

Imported Equipment Power Conversion

Export Product Validation

Control Systems/Instruments

Equipment Repair Center

FAQ

Q1: What is a Single Phase Converter?

A Single Phase Converter is a power conversion device designed to convert single-phase AC voltage and frequency from one standard to another, such as 120V/60Hz to 220V/50Hz, while providing a stable and controlled AC output.

Q2: Can AC frequency converter be used for motors?

It is not recommended for motors, especially inductive loads with high starting current. This converter is designed for testing, precision power supply, and electronic loads rather than motor-driven applications.

Q3: Does the converter change both voltage and frequency?

Yes. The converter can adjust both output voltage and frequency, making it suitable for applications requiring conversion between different regional power standards, such as 50Hz and 60Hz systems.
