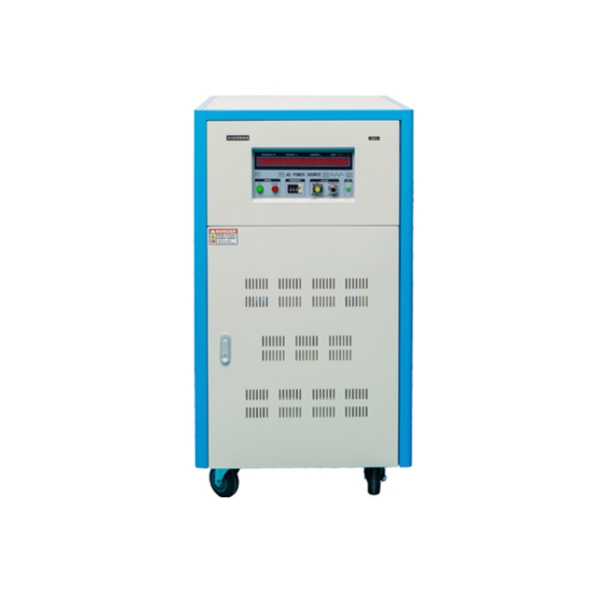

240v 50Hz to 120v 60Hz Frequency Converter, 1 Phase, 30kVA

SKU: PH-SFC-30000

$8,858.99

● 30kVA single phase converter supports up to 30kVA, converting 240V 60Hz input to 120V 50Hz output with wide voltage and frequency compatibility. ● Delivers pure sine wave power with load regulation ≤±1% and frequency stability ≤±0.01% for sensitive equipment. ● Output voltage adjustable up to 0-150V/0-300V and frequency adjustable from 50Hz/60Hz up to 400Hz for flexible applications. ● Built-in digital meters for voltage, current, power, and frequency, with comprehensive protection against overload, short circuit, over-temperature, and power failure.

Input Voltage *
Output Frequency *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This 30kVA single phase frequency converter converts 240V 60Hz input to 120V 50Hz output, providing stable and precise power for industrial, testing, and global equipment applications. It delivers a pure sine wave output with low harmonic distortion, load regulation ≤±1%, and frequency stability ≤±0.01%, ensuring reliable operation for sensitive devices. The AC frequency converter supports adjustable output voltage and frequency up to 400Hz, handles instantaneous overload up to 3× rated current, and is compatible with resistive, capacitive, inductive, and non-linear loads. A built-in 4-digit LED display shows voltage, current, power, and frequency simultaneously, while comprehensive protection functions and fault alarms ensure safe and efficient operation.

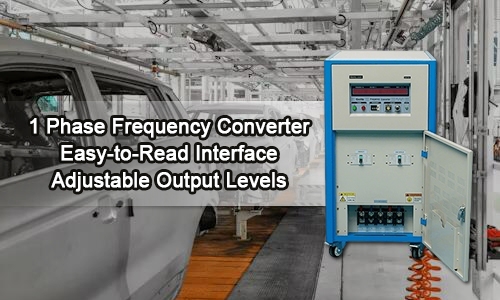

Feature

Simultaneous Measurement: Voltage (V), frequency (Hz), current (A), and power (W) are measured and displayed at the same time, with no mode switching required.
Low Interference Design: Specially processed circuitry minimizes harmonic content and eliminates electromagnetic interference.
Pure Sine Wave Output: 1 phase frequency converter provides clean and stable sine wave power for reliable operation of connected equipment.
High Capacity & Efficiency: Designed for high power output with efficient performance, low noise operation, and high reliability.
Global Voltage & Frequency Simulation: Supports worldwide standard voltages and frequencies for testing and evaluation of various electrical products.
High Overload Capability: Capable of handling instantaneous current up to 3× rated current, suitable for high inrush loads.
Comprehensive Protection: Equipped with over-current, over-temperature, short-circuit, and instantaneous power-failure protection with alarm indication.
Wide Load Compatibility: Suitable for resistive, capacitive, inductive, and other non-linear loads.

Details

Integrated Digital Display: 4-digit LED indicators show voltage, frequency, current, and power at the same time, with no mode switching needed.
Clear Readability: High-resolution numeric display enables fast and accurate status monitoring.
Flexible Output Adjustment: Multiple output settings allow quick configuration for different operating requirements.
Simple Operation: Intuitive controls provide easy adjustment and user-friendly operation.
Fault Alert Function: Built-in protection with error code indication allows rapid fault identification and troubleshooting.

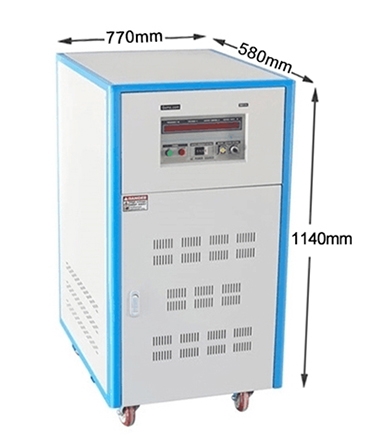

Dimension

Specs

Capacity	30kVA
Dimension	7705801140mm
Weight	270kg
Input
Voltage	1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output
Voltage, current	110V Setting (Low grade): 0-150V, 250A
Voltage, current	220V Setting 0-300V (High grade): 0-300V, 125A
Load stabilization Rate	≤±1%
Frequency	50Hz, 60Hz up to 400Hz adjustable
	Note:
	-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
	-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
	-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability	≤±0.01%
Harmonic Distortion	Pure Sine Wave ≤2%
Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter	4 digit, digital voltage meter, resolution 0.1V
Ammeter	4 digit, digital ammeter, resolution 0.1A
Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment
Temperature	0~40℃
Humidity	0~90% (Non condensation)
Warranty	18 months

Application

Electrical Engineering

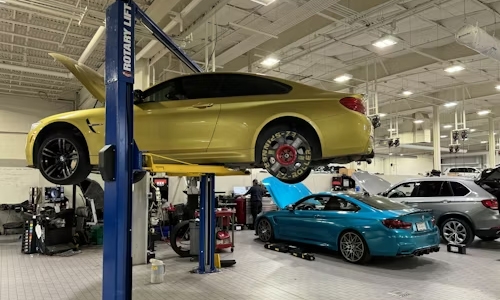

Automotive Industry Testing

Control Systems/Instruments

Equipment Repair Center

FAQ

Q1: What does "Single phase" mean for this converter?

"Single phase" means both the input and output power are single-phase AC, consisting of one live line and one neutral (plus ground). This converter does not support three-phase power.

Q2: Can this 30kVA converter power three-phase equipment?

No. The output is single-phase 120V 50Hz and cannot drive three-phase motors or three-phase loads.

Q3: Is single-phase output suitable for industrial applications?

Yes. Many industrial instruments, test systems, control panels, and electronic equipment operate on single-phase power, making this converter suitable for industrial and laboratory environments.
