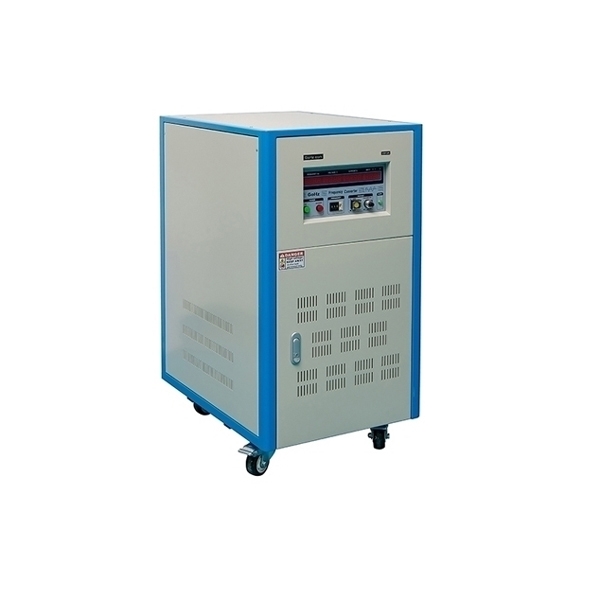

    Picture of 15kVA/20kVA Single Phase Frequency Converter, 230V 50Hz to 120V 60Hz
    Picture of 15kVA/20kVA Single Phase Frequency Converter, 230V 50Hz to 120V 60Hz
    Picture of 15kVA/20kVA Single Phase Frequency Converter, 230V 50Hz to 120V 60Hz
    Picture of 15kVA/20kVA Single Phase Frequency Converter, 230V 50Hz to 120V 60Hz

    15kVA/20kVA Single Phase Frequency Converter, 230V 50Hz to 120V 60Hz

    1 review(s) | Add your review
    SKU: HZ-50-1115
    $5,615.99
    ● 15kVA/20kVA capacity with wide single-phase input and adjustable output frequency up to 400Hz. ● High accuracy output with ±1% load regulation and ±0.01% frequency stability. ● Pure sine wave power with low harmonic distortion (≤2%). ● Designed for heavy-duty operation, offering high current output and full rated capacity at frequencies up to 120Hz
    *
    *
    *
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    ⏱️ Delivery: 10-16 days
    🔙 30-day Returns
    Overview

    This 1 phase frequency converter provides reliable conversion from 230V 60Hz input to 120V 50Hz output, with 15kVA/20kVA capacity and adjustable frequency up to 400Hz for demanding industrial and testing applications. It delivers a pure sine wave output with low harmonic distortion (≤2%), ensuring stable operation for sensitive and precision equipment. The AC frequency converter supports resistive, capacitive, inductive, and non-linear loads, and features up to 3× instantaneous overload capability to handle high inrush currents. A clear 4-digit LED display shows voltage, current, power, and frequency simultaneously, while comprehensive protections---including over-current, over-temperature, short-circuit, and fault alarms---ensure safe and continuous operation.

    Specification

    Capacity 15kVA/20kVA
    Dimension 680 (D)*500 (W)*970 (H) mm
    Weight 150kg/180kg
    Input
    Voltage 1 Phase 2 Wire: 110V, 120V, 220V, 230V, 240V ± 10% (Option *)
    Frequency 50 Hz, 60 Hz
    Output
    Voltage, current 110V Setting (Low grade): 0-150V, 125A/166.4A
    220V Setting 0-300V (High grade): 0-300V, 62.5A/83.2A
    Load stabilization Rate ≤±1%
    Frequency 50Hz, 60Hz up to 400Hz adjustable
    Note:
    -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
    -When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
    -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
    Frequency Stability ≤±0.01%
    Harmonic Distortion Pure Sine Wave ≤2%
    Frequency meter 4 digit, digital frequency meter, resolution 0.1Hz/Step
    Voltmeter 4 digit, digital voltage meter, resolution 0.1V
    Ammeter 4 digit, digital ammeter, resolution 0.1A
    Watt meter 4 digit, digital Watt meter, resolution 0.1W
    Protection With overload, short circuit, over temperature
    Instantaneous power failure protection and alarm device
    Working Environment
    Temperature 0~40℃
    Humidity 0~90% (Non condensation)
    Warranty 12 months
    Details

    Frequency converter feature icon

    15kva frequency converter feature

    Feature

    • A pure sine wave output ensures stable and reliable operation for sensitive and precision electrical equipment.
    • The AC power supply supports resistive, capacitive, inductive, and non-linear loads, making it suitable for a wide range of applications.
    • Voltage, current, power, and frequency are displayed simultaneously for convenient real-time monitoring.
    • With an instantaneous overload capability of up to 3×, the converter can handle high inrush current loads.
    • It features comprehensive protection, including over-current, over-temperature, short-circuit, and power-off alarm functions.
    • The static frequency converter operates with single-phase 220VAC input, offering an adjustable 0–300VAC output and a wide 40–400Hz frequency range.




    1. Multi-Parameter Display: 4-digit LED display shows voltage (V), frequency (Hz), current (A), and power (W) simultaneously, no switching required.
    2. Easy-to-Read Interface: Clear numeric display with high resolution for quick and accurate monitoring.
    3. Adjustable Output Levels: Multiple adjustable output steps allow flexible operation and easy setup.
    4. User-Friendly Operation: Simple controls ensure convenient adjustment and straightforward operation.
    5. Fault Protection Indication: AC AC frequency converter built-in power fault protection with error code display for fast troubleshooting.
    5kva frequency converter detail

    Dimension

    15kva frequency converter size

    Application

    Electrical engineering

    Electrical Engineering

    Export product validation

    Export Product Validation

    Control systems instruments

    Control Systems/Instruments

    Equipment repair centers

    Equipment Repair Center

    FAQ

    Q1: How is efficiency affected at partial load?

    Efficiency is highest at 60–80% load. At very light loads, internal losses account for a higher percentage of power, reducing overall efficiency slightly.

    Q2: Does the 1 phase converter require an external transformer?

    No. The converter integrates voltage and frequency conversion internally. An external transformer is not required unless site-specific isolation or special grounding is needed.

    Q3: Can the output be used to supply multiple devices simultaneously?

    Yes, provided the total apparent power (kVA) and combined inrush current do not exceed the rated capacity.
