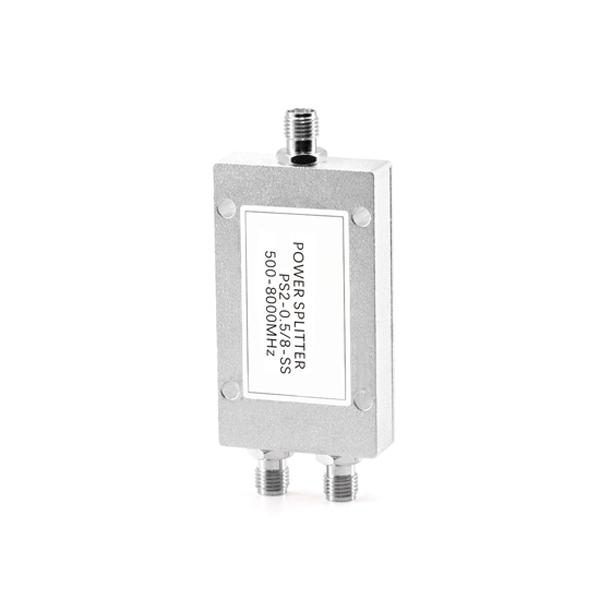

    Picture of Coaxial Power Divider 2 Way, 0.5~8 GHz

    Coaxial Power Divider 2 Way, 0.5~8 GHz

    2 review(s) | Add your review
    SKU: PH-PD-2W058GHZ
    $108.29
    ● Designed to split a single high-power RF signal into two paths or combine two signals into one. ● Features a wide operating frequency range from 0.5 GHz to 8 GHz. ● Compact, lightweight design with robust SMA-Female connectors.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Overview

    The PowerHome 2-Way Coaxial Power Divider (0.5-8 GHz) utilizes an optimized internal microstrip Wilkinson architecture, delivering exceptional phase balance and symmetric 3 dB power splitting across an ultra-wideband range. Specifically engineered to mitigate impedance mismatch in multi-band circuits, this component maintains a low VSWR (≤ 1.35:1) and high port-to-port isolation (≥ 20 dB), protecting sensitive reception paths from cross-channel reflections. Housed in a rugged aluminum enclosure with SMA-Female connectors, it acts as a high-density RF hub for MIMO system characterization, Wi-Fi 6E/7 lab testing, and sub-6 GHz 5G NR routing networks.

    Specification

    Frequency Range 0.5 ~ 8 GHz
    Insertion Loss ≤ 1.2 dB (excluding 3.0 dB theoretical split loss)
    Input VSWR Typ. 1.16 / Max. 1.25
    Output VSWR Typ. 1.12 / Max. 1.20
    Isolation Typ. 25 dB / Min. 20 dB
    Amplitude Balance ± 0.2 dB
    Phase Balance ± 3°
    Impedance 50 Ohms
    Port Connector SMA-Female
    Power Handling 30W (Splitter) / 1W (Combiner)
    Operating Temperature -40℃ ~ +85℃
    Dimensions (LxWxH) 51.7 x 30 x 10 mm
    Weight 40 g
    Details

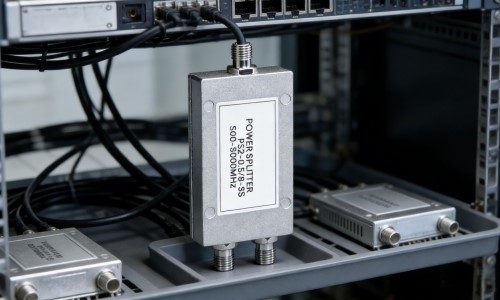

    power divider 2 way 8 ghz feature

    Feature

    • Dual-Function Utility: Effectively operates as both a power splitter to divide an input signal and a power combiner to merge two signals.
    • Broadband Performance: Designed to function reliably across the entire 0.5 GHz to 8 GHz range, offering great application flexibility.
    • Superior Protection: High isolation between ports minimizes interference, ensuring clean and independent output signals.
    • Durable Construction: Built with quality materials and SMA-Female connectors to withstand rigorous use in various operating temperatures.

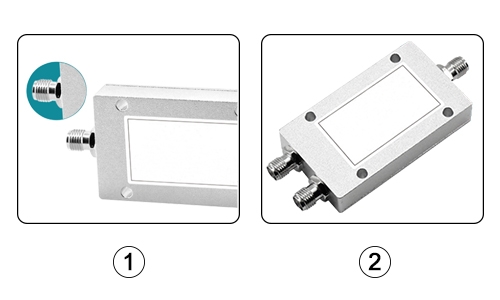

    1. Base Material: Using stainless steel as the base material, stainless steel passivation treatment is employed to enhance oxidation resistance and conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.
    power divider 2 way 8 ghz details

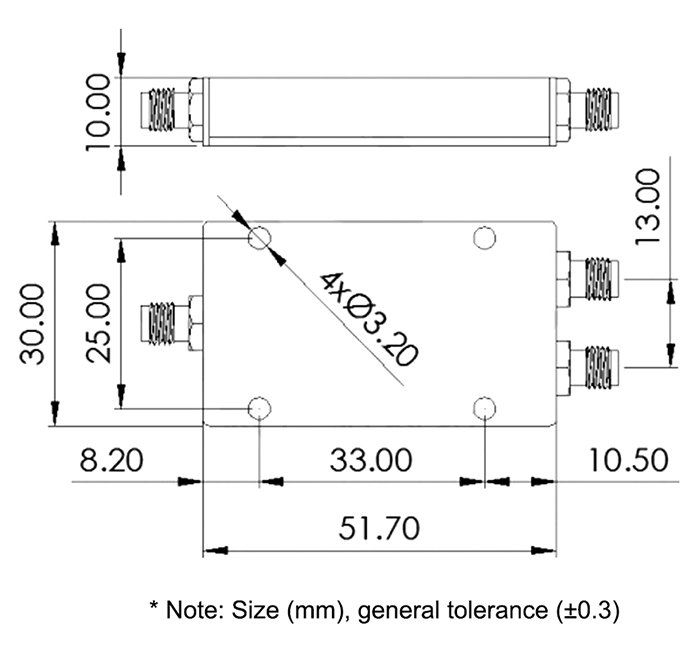

    Dimension (unit:mm)

    power divider 2 way 8 ghz dimension

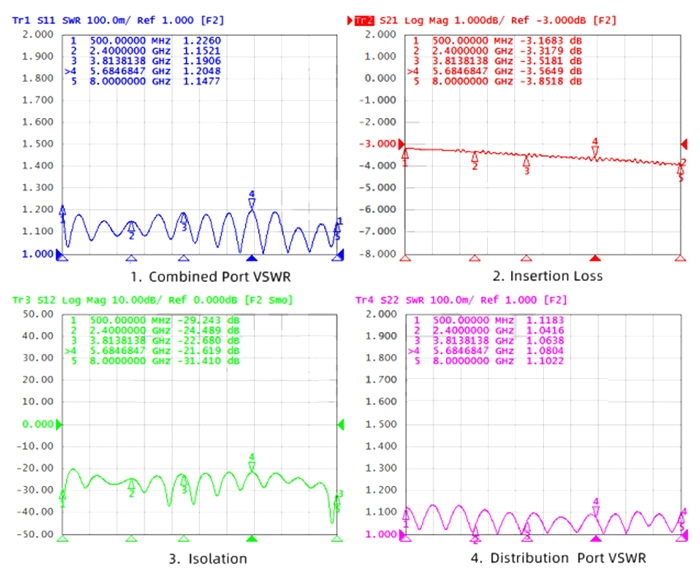

    Radio Frequency (RF) Parameter Diagram

    power divider 2 way 8 ghz parameter diagram


    Application

    Military Radar 5G Communication

    Military Radar 5G Communication

    Rural Cellular Communication

    Rural Cellular Communication

    Mountaintop Radar Station

    Mountaintop Radar Station

    Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

    FAQ

    Q1: What is the primary function of this power divider?
    This device is primarily used as a two-way power divider to split a single incoming RF signal into two separate output paths with minimal power loss. It can also function in reverse as a power combiner.

    Q2: Can this power splitter be used across its entire specified frequency range?
    Yes, it is a broadband splitter designed to operate effectively across the entire 0.5 GHz to 8 GHz frequency range, making it suitable for various applications within this spectrum.

    Q3: What do amplitude and phase balance mean for performance?
    Amplitude balance ensures the signal power is divided equally between outputs (±0.2dB), while phase balance (±3°) ensures the signals are synchronized. This precision is critical for system accuracy and consistency.
