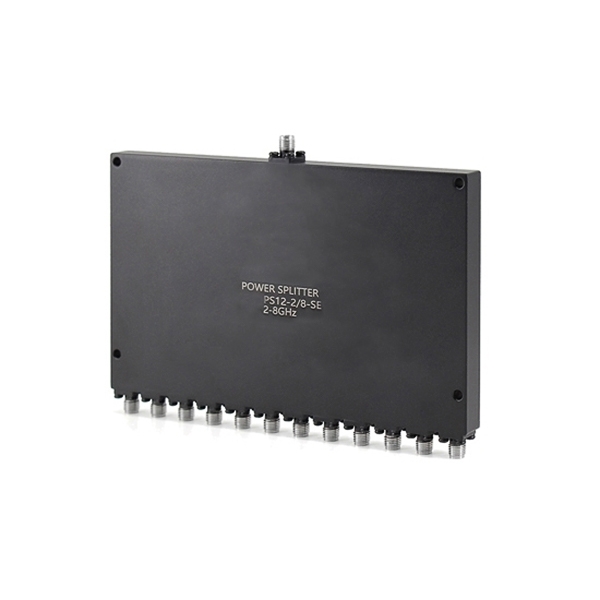

    Picture of RF Power Divider 12 Way, 2~8 GHz

    RF Power Divider 12 Way, 2~8 GHz

    0 review(s) | Add your review
    SKU: PH-PD-12W28GHZ
    $636.59
    ● 12-way coaxial power divider/combiner for 2-8 GHz applications. ● Efficiently distributes or combines high-power RF signals in microwave systems. ● Excellent phase and amplitude balance ensures precise signal integrity. ● Robust black painted design for reliable operation in demanding environments.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of Coaxial Power Divider 2 Way, 0.5~6 GHz

    Coaxial Power Divider 2 Way, 0.5~6 GHz

    ● A broad frequency range of 0.5 to 6 GHz. ● Low insertion loss and excellent isolation for minimal signal degradation and reduced interference between ports. ● Precision engineered with robust SMA-Female connectors. ● Compact and lightweight aluminum housing.
    $81.99
    Picture of Coaxial Power Divider 2 Way,18~40 GHz

    Coaxial Power Divider 2 Way,18~40 GHz

    ● High-frequency 2-way coaxial power divider for 18–40 GHz signal splitting. ● Compact design with 2.92mm-Female connectors. ● Excellent amplitude and phase balance ensures consistent signal integrity for communications and GPS. ● Withstands operating temperatures from -45 ℃ to +85 ℃.
    $505.09
    Picture of Microstrip Power Divider 8 Way, 0.5~6 GHz

    Microstrip Power Divider 8 Way, 0.5~6 GHz

    ● Critical RF component for microwave applications like GPS. ● Divides input signals into eight equal outputs using microstrip technology. ● Handles high-power RF signals with reliable performance and signal integrity. ● Functions bidirectionally as both a power splitter and combiner.
    $204.19
    Picture of RF Power Divider 10 Way, DC~3 GHz

    RF Power Divider 10 Way, DC~3 GHz

    ● Broad DC to 3 GHz operation with minimal signal loss. ● Compact microstrip design for space-constrained surface-mount applications. ● Excellent signal integrity with precise amplitude and phase balance across all ports. ● Ideal for GPS, communication systems, and test equipment.
    $763.49
    Overview

    The 12-way RF power divider is an essential passive component for modern microwave and RF systems. Operating across a broad 2 to 8 GHz frequency band, it excels at accurately splitting an input signal into twelve equal output signals or combining multiple signals into one. Engineered with precision, it maintains superior amplitude and phase balance while minimizing insertion loss and maximizing port isolation. Its compact design and SMA-Female connectors make it ideal for integration into communication systems, GPS arrays, and various test and measurement applications, providing reliable performance from -45℃ to +85℃.

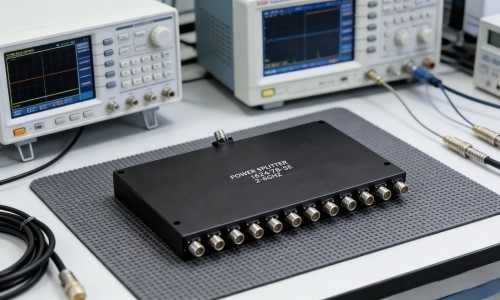

    rf power divider 12 way feature

    Feature

    • Broadband Performance: Operates efficiently across a wide frequency spectrum from 2 GHz to 8 GHz, making it versatile for various RF and microwave applications.
    • High Precision: Offers excellent phase balance (±3°) and amplitude balance (≤0.6dB) to ensure consistent signal integrity across all twelve output ports.
    • Robust Design: Features a durable metal housing with a black painted finish, designed to withstand harsh operating temperatures from -45℃ to +85℃.
    • Standard Connectivity: Equipped with standard 50-ohm SMA-Female ports for easy and reliable integration into existing system setups.

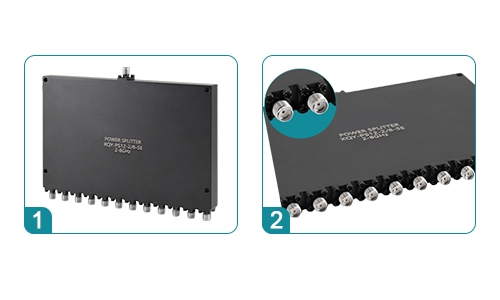

    Details

    1. SMA-Female connectors for standard coaxial cable attachment
    2. Compact and lightweight aluminum housing for easy system integration
    3. Precision-engineered internal circuitry for minimal signal degradation
    4. Black painted surface for corrosion resistance and professional appearance
    rf power divider 12 way detail

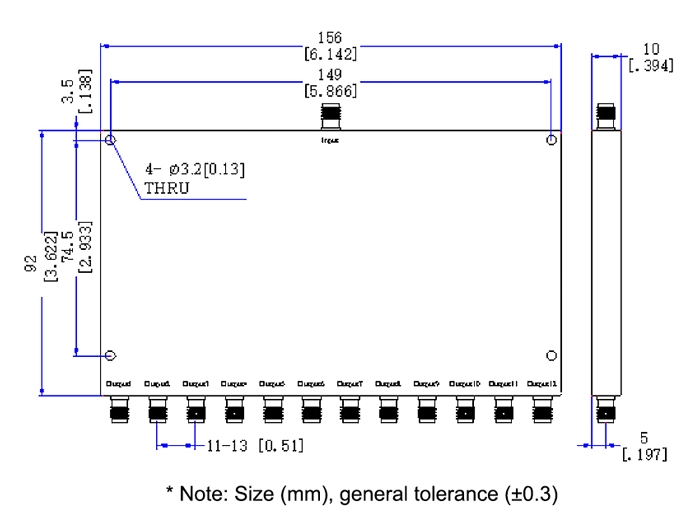

    Dimension (unit:mm)

    rf power divider 12 way parameter diagram

    Radio Frequency (RF) Parameter Diagram

    rf power divider 12 way parameter diagram

    Specs
    Frequency Range 2 ~ 8 GHz
    Insertion Loss ≤ 1.6 dB (Excluding 10.8 dB Theoretical Loss)
    Input VSWR Typ. 1.26 / Max. 1.45
    Output VSWR Typ. 1.18 / Max. 1.25
    Isolation Typ. 25 dB / Min. 18 dB
    Amplitude Balance ≤ 0.6 dB
    Phase Balance ± 3°
    Impedance 50 Ohms
    Connector Type SMA-Female
    Power Handling (Splitter) 30 W
    Power Handling (Combiner) 2 W
    Operating Temperature -45℃ ~ +85℃
    Dimensions (L*W*H) 156 * 92 * 10 mm
    Weight Approximately 340 g
    Application

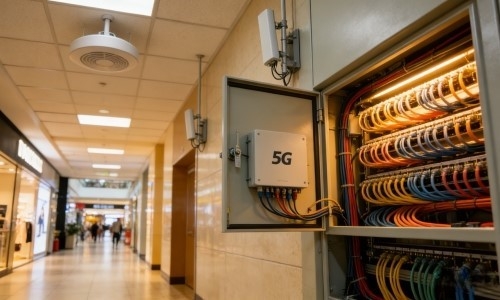

      Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

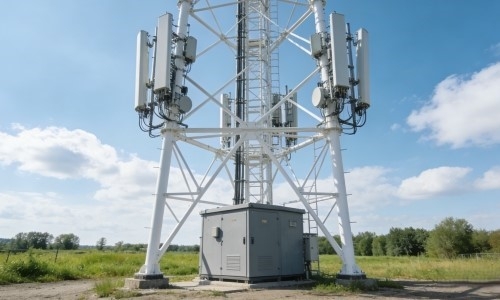

    Rural Cellular Communication

    Rural Cellular Communication

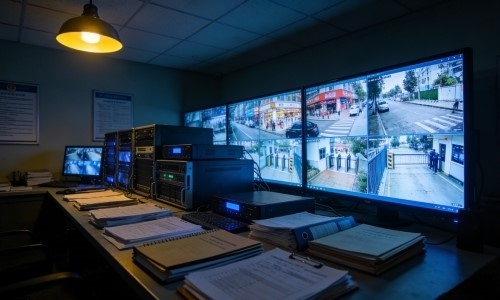

    Urban Security Monitoring

    Urban Security Monitoring

    Mountaintop Radar Station

    Mountaintop Radar Station

    FAQ

    Q1: What does "Insertion Loss" mean in the specifications?
    Insertion Loss refers to the total signal power lost as it passes through the device. The specified value (≤1.6dB) is the additional loss on top of the inevitable theoretical loss of 10.8dB that occurs when a signal is split 12 ways.

    Q2: Is this unit suitable for outdoor use?
    Yes, its robust construction and wide operating temperature range (-45℃ to +85℃) make it suitable for use in controlled outdoor environments, such as within antenna enclosures.

    Q3: What type of cables and connectors should I use with it?
    The device is equipped with SMA-Female ports. You should use coaxial cables terminated with SMA-Male connectors to ensure a proper and reliable connection.
