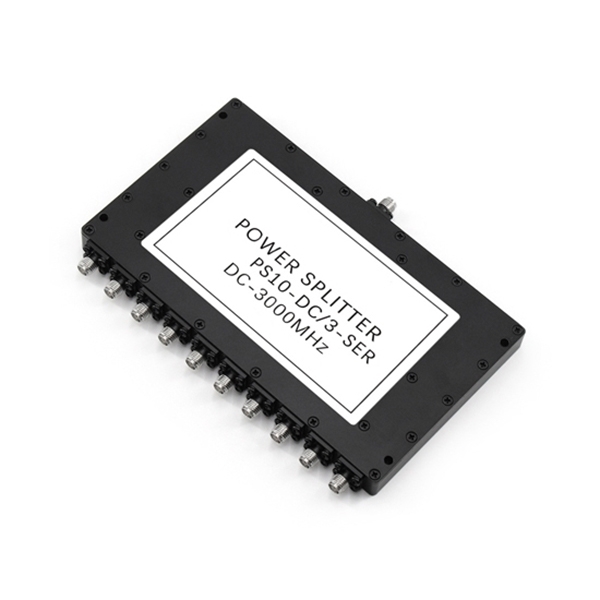

    Picture of RF Power Divider 10 Way, DC~3 GHz

    RF Power Divider 10 Way, DC~3 GHz

    0 review(s) | Add your review
    SKU: PH-PD-10WDC3GHZ
    $763.49
    ● Broad DC to 3 GHz operation with minimal signal loss. ● Compact microstrip design for space-constrained surface-mount applications. ● Excellent signal integrity with precise amplitude and phase balance across all ports. ● Ideal for GPS, communication systems, and test equipment.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of Coaxial Power Divider 2 Way, 0.5~6 GHz

    Coaxial Power Divider 2 Way, 0.5~6 GHz

    ● A broad frequency range of 0.5 to 6 GHz. ● Low insertion loss and excellent isolation for minimal signal degradation and reduced interference between ports. ● Precision engineered with robust SMA-Female connectors. ● Compact and lightweight aluminum housing.
    $81.99
    Picture of RF Power Divider 3 Way, 0.5~6 GHz

    RF Power Divider 3 Way, 0.5~6 GHz

    ● 3-way RF power divider operates from 0.5 to 6 GHz. ● Uses low-loss microstrip technology for reliable RF/microwave performance. ● Functions as both a power splitter and combiner for system versatility. ● Handles up to 20W (splitter) and features a surface-mount design.
    $178.79
    Picture of Coaxial Power Divider 4 Way, 0.5~6 GHz

    Coaxial Power Divider 4 Way, 0.5~6 GHz

    ● Broadband 4-way coaxial power divider covering 0.5–6 GHz. ● Coaxial design ensures low-loss, high-isolation signal distribution. ● Dual-function: operates as both a splitter and combiner. ● Compact, surface-mount construction for easy integration.
    $114.29
    Picture of GPS Power Divider 4 Way, 0.6~2.2 GHz

    GPS Power Divider 4 Way, 0.6~2.2 GHz

    ● Efficiently splits one RF signal into four equal outputs from 0.6 to 2.2 GHz. ● Uses coaxial technology for low loss and precise 50Ω impedance matching. ● Built with robust N-female ports and an IP54 rating for reliable, versatile use. ● Ideal for GPS, base stations, and RF systems requiring accurate signal division.
    $393.89
    Overview

    This 10-Way RF Power Divider is a high-performance coaxial component engineered for precision signal distribution in sophisticated microwave and RF systems. Operating seamlessly across a DC to 3 GHz spectrum, it is designed to split an input signal into ten output paths with exceptional amplitude and phase balance. Its compact, surface-mount microstrip construction makes it an ideal choice for integration into space-sensitive applications, from GPS arrays to multi-channel communication setups. By delivering reliable power division with low insertion loss and high isolation, this device ensures signal integrity is maintained, supporting the complex demands of modern wireless infrastructure and testing environments.

    250 watt solar generator

    Feature

    • Broad Frequency Coverage: Provides consistent performance from DC up to 3 GHz, making it versatile for a wide array of RF and microwave applications.
    • Precision Signal Division: Features excellent amplitude and phase balance across all ten output ports for accurate and uniform signal distribution.
    • Compact Microstrip Design: The surface-mount architecture allows for easy and space-efficient integration into circuit boards and confined system layouts.
    • High Reliability: Built with quality materials to ensure stable operation and durability within a wide working temperature range.

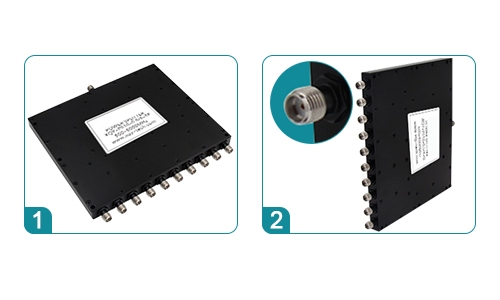

    Details

    1. Base Material: Using stainless steel as the base material, stainless steel passivation treatment is employed to enhance oxidation resistance and conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.
    rf power divider 10 way detail

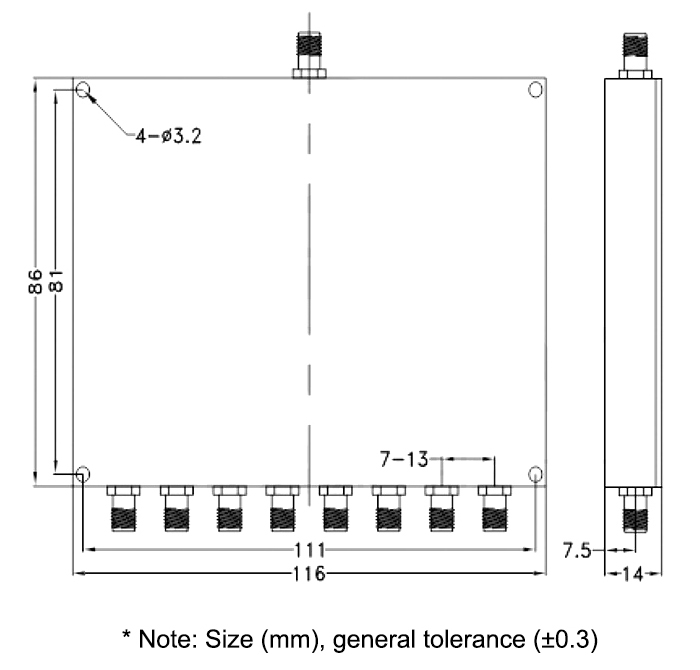

    Dimension (unit:mm)

    rf power divider 10 way dimension

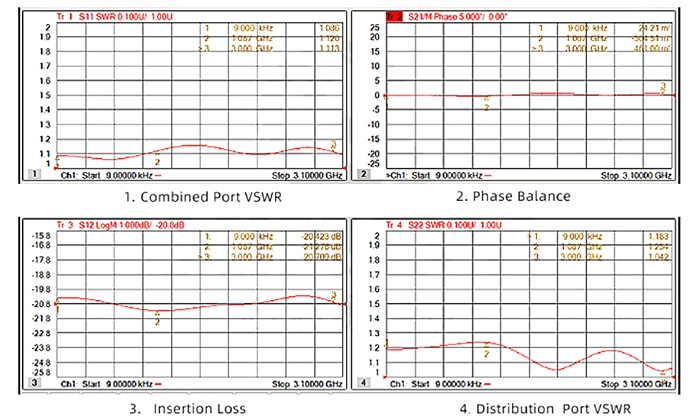

    Radio Frequency (RF) Parameter Diagram

    rf power divider 10 way parameter diagram

    Specs
    Frequency Range DC ~ 3 GHz
    Insertion Loss ≤ 23.5 dB
    Input VSWR Typ. 1.16 / Max. 1.25
    Output VSWR Typ. 1.18 / Max. 1.30
    Isolation Min. 14 dB
    Amplitude Balance ± 0.8 dB
    Phase Balance ± 15°
    Impedance 50 Ohms
    Port Connector SMA-Female
    Withstand Power 2W
    Working Temperature -35℃ ~ +75℃
    Dimension 148 x 85 x 12 mm
    Weight 100 g
    Application
      Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

    Rural Cellular Communication

    Rural Cellular Communication

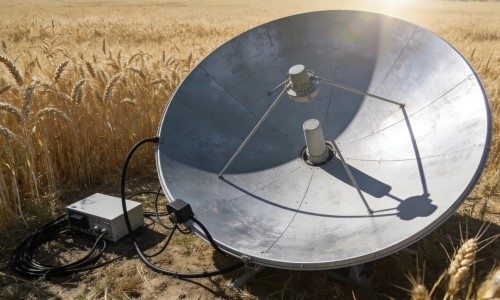

    Rural Agricultural Monitoring

    Rural Agricultural Monitoring

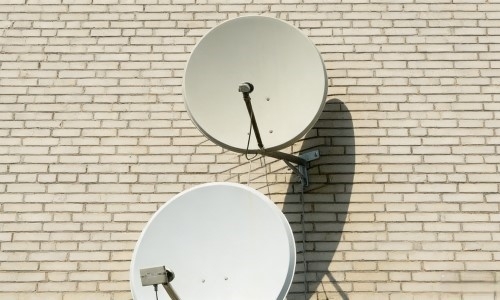

    Residential Satellite Reception

    Residential Satellite Reception

    FAQ

    Q1: What is the primary function of this RF power divider?
    A1: It is designed to accurately split a single input RF signal into ten output signals with minimal loss and high consistency, or conversely, combine multiple signals into one. It is essential for distributing power in systems like multi-antenna arrays or test setups.

    Q2: Can this device handle high-power signals?
    A3: This power divider is rated for a continuous power of 2W. It is engineered for signal distribution in communication and measurement systems. For high-power transmission applications, specialized power dividers with higher power ratings should be considered.

    Q3: Is this product suitable for GPS system integration?
    A4: Yes, its frequency range fully covers common GPS/GNSS bands. The reliable phase and amplitude performance make it an excellent choice for splitting a reference clock or LO signal to multiple GPS receivers or modules within a system.
