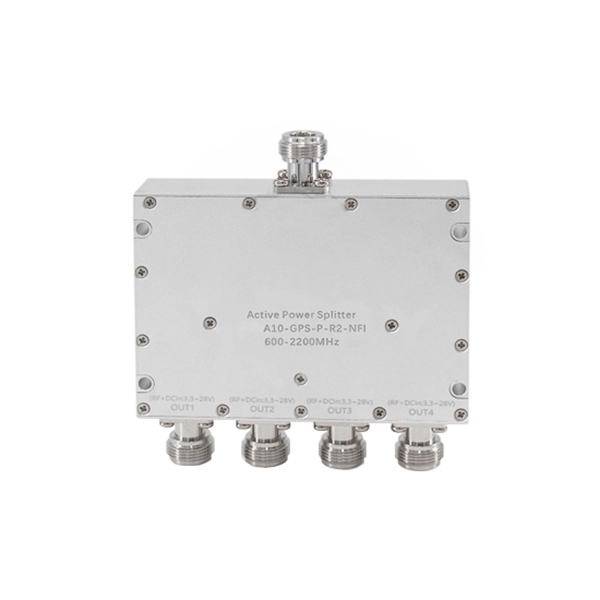

    Picture of GPS Power Divider 4 Way, 0.6~2.2 GHz

    GPS Power Divider 4 Way, 0.6~2.2 GHz

    0 review(s) | Add your review
    SKU: PH-PD-4W0622GHZ
    $393.89
    ● Efficiently splits one RF signal into four equal outputs from 0.6 to 2.2 GHz. ● Uses coaxial technology for low loss and precise 50Ω impedance matching. ● Built with robust N-female ports and an IP54 rating for reliable, versatile use. ● Ideal for GPS, base stations, and RF systems requiring accurate signal division.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of RF Power Divider 6 Way, 0.5~6 GHz

    RF Power Divider 6 Way, 0.5~6 GHz

    ● Efficient 0.5-6 GHz high-power RF signal distribution. ● Functions as both precision splitter and combiner with minimal loss. ● Fan-cooled robust design ensures stable performance. ● Compact with SMA-Female connectors for easy integration.
    $286.09
    Picture of Microstrip Power Divider 8 Way, 0.5~6 GHz

    Microstrip Power Divider 8 Way, 0.5~6 GHz

    ● Critical RF component for microwave applications like GPS. ● Divides input signals into eight equal outputs using microstrip technology. ● Handles high-power RF signals with reliable performance and signal integrity. ● Functions bidirectionally as both a power splitter and combiner.
    $204.19
    Picture of RF Power Divider 12 Way, 2~8 GHz

    RF Power Divider 12 Way, 2~8 GHz

    ● 12-way coaxial power divider/combiner for 2-8 GHz applications. ● Efficiently distributes or combines high-power RF signals in microwave systems. ● Excellent phase and amplitude balance ensures precise signal integrity. ● Robust black painted design for reliable operation in demanding environments.
    $636.59
    Picture of GPS Power Divider 32 Way, 0.8~2.7 GHz

    GPS Power Divider 32 Way, 0.8~2.7 GHz

    ● Efficiently splits or combines high-power RF signals from 0.8 to 2.7 GHz. ● Uses microstrip and coaxial tech for minimal signal loss. ● Built-in fans ensure stable operation in high-power use. ● Robust design delivers excellent phase and amplitude balance for RF systems.
    $1,859.79
    Overview

    This 4-Way GPS Power Divider is a high-performance RF component designed for the precise and efficient division of radio frequency signals. Operating across a wide frequency band from 0.6 GHz to 2.2 GHz, it is an essential tool for systems requiring signal distribution, such as GPS networks, wireless communications, and base station antenna arrays. Engineered with coaxial technology, it ensures outstanding amplitude and phase balance while maintaining excellent isolation between output ports. Its durable construction and versatile DC feedthrough capability make it a reliable and flexible solution for both commercial and industrial RF system integrators.

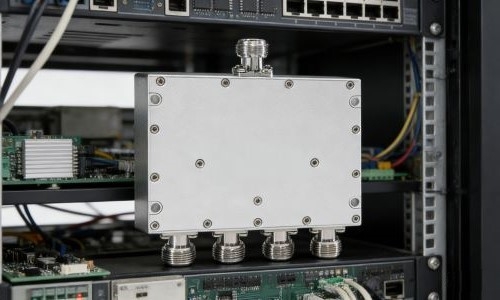

    GPS power divider 4 way feature

    Feature

    • Precise Signal Division: Splits one input signal into four equal output signals with excellent amplitude and phase balance for consistent system performance.
    • Broad Frequency Range: Operates effectively from 0.6 GHz to 2.2 GHz, making it suitable for GPS L1/L2 bands and other common communication frequencies.
    • High Isolation & Low VSWR: Provides high isolation between output ports and low voltage standing wave ratio (VSWR) to minimize signal interference and reflection.
    • Robust & Versatile Design: Features sandblasted aluminum housing, N-type female connectors, IP54 waterproof rating, and wide-range DC feedthrough capability for flexible integration.

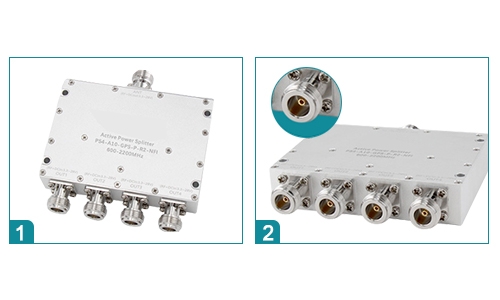

    Details

    1. Connectors: The base material is stainless steel, processed with a passivation treatment to enhance its oxidation resistance and electrical conductivity.
    2. Appearance & Material: The housing is made of aluminum alloy using a sandblasting and anodizing process, which provides strong oxidation resistance.
    GPS power divider 4 way details

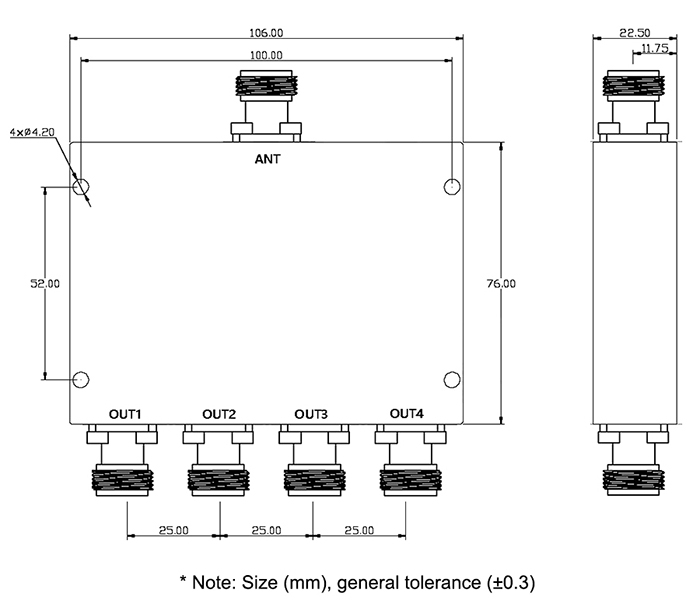

    Dimension (unit:mm)

    GPS power divider 4 way dimension

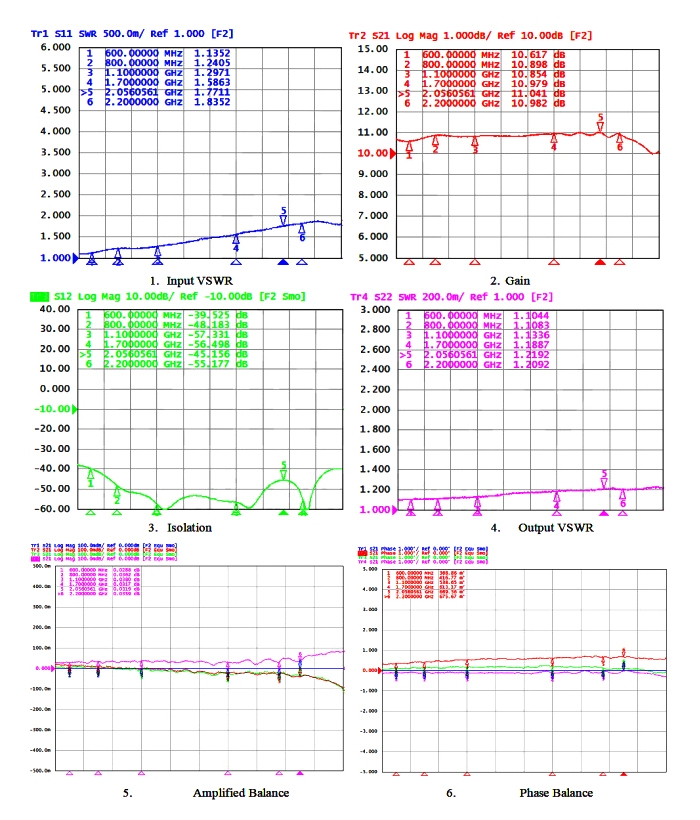

    Radio Frequency (RF) Parameter Diagram

    GPS power divider 4 way parameter diagram

    Specs
    Frequency Range 0.6 ~ 2.2 GHz
    Impedance 50 Ω
    Input VSWR ≤ 1.6:1 (1.1~1.7GHz)
    ≤ 1.9:1 (0.6~2.2GHz)
    Gain 10 ± 2 dB (Default)
    Amplitude Balance ≤ ± 0.5 dB
    Phase Balance ≤ 5°
    Isolation ≥ 45 dB (1.1~1.7GHz)
    ≥ 38 dB (0.6~2.2GHz)
    Noise Figure ≤ 2.4 dB
    Port Connectors N-Female
    DC Feedthrough Voltage 3.3V ~ 28V
    Waterproof Rating IP54
    Application
      Astronomical Radio Telescope

    Astronomical Radio Telescope

    Rural Cellular Communication

    Rural Cellular Communication

    Urban Security Monitoring

    Urban Security Monitoring

    Residential Satellite Reception

    Residential Satellite Reception

    FAQ

    Q1: What is the primary function of this power divider?
    This device is designed to take a single input RF signal and split it equally into four separate output paths. It can also be used in reverse to combine four signals into one.

    Q2: Can this power divider be used outdoors?
    Yes. With its IP54 waterproof rating and robust N-type connectors, it is built to withstand dust and water spray, making it suitable for outdoor installations in communication systems.

    Q3: Does the device require external power?
    No, it is a passive component for RF signals. However, it features a DC feedthrough function, allowing a DC voltage (3.3V-28V) to pass from the output ports to the input port (or vice-versa), which can be used to power an active antenna without needing a separate cable.
