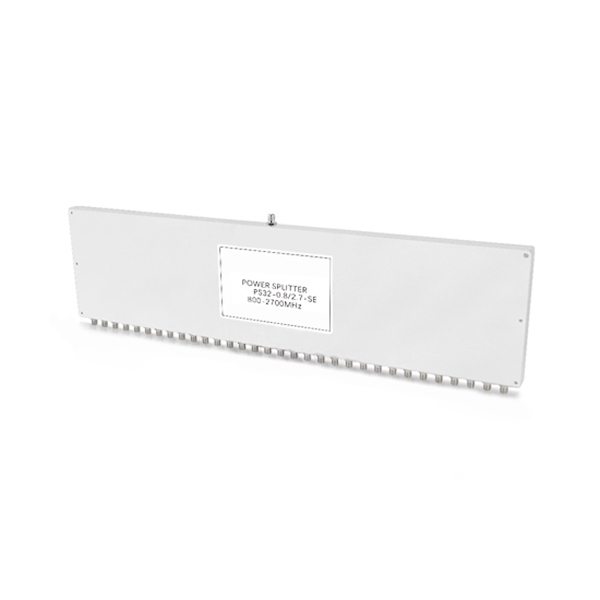

    Picture of GPS Power Divider 32 Way, 0.8~2.7 GHz

    GPS Power Divider 32 Way, 0.8~2.7 GHz

    0 review(s) | Add your review
    SKU: PH-PD-32W0827GHZ
    $1,859.79
    ● Efficiently splits or combines high-power RF signals from 0.8 to 2.7 GHz. ● Uses microstrip and coaxial tech for minimal signal loss. ● Built-in fans ensure stable operation in high-power use. ● Robust design delivers excellent phase and amplitude balance for RF systems.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of Coaxial Power Divider 2 Way, 0.5~8 GHz

    Coaxial Power Divider 2 Way, 0.5~8 GHz

    ● Designed to split a single high-power RF signal into two paths or combine two signals into one. ● Features a wide operating frequency range from 0.5 GHz to 8 GHz. ● Compact, lightweight design with robust SMA-Female connectors.
    $108.29
    Picture of GPS Power Divider 2 Way, 0.7~2.2 GHz

    GPS Power Divider 2 Way, 0.7~2.2 GHz

    ● Efficient two-way coaxial power divider/combiner for the 0.7-2.2 GHz range. ● Low insertion loss and high isolation for minimal signal degradation. ● Integrated cooling fan ensures stable operation in high-power applications. ● Essential for GPS and microwave systems, offering precise signal splitting/combining.
    $146.39
    Picture of Coaxial Power Divider 2 Way,18~40 GHz

    Coaxial Power Divider 2 Way,18~40 GHz

    ● High-frequency 2-way coaxial power divider for 18–40 GHz signal splitting. ● Compact design with 2.92mm-Female connectors. ● Excellent amplitude and phase balance ensures consistent signal integrity for communications and GPS. ● Withstands operating temperatures from -45 ℃ to +85 ℃.
    $505.09
    Picture of RF Power Divider 3 Way, 0.5~6 GHz

    RF Power Divider 3 Way, 0.5~6 GHz

    ● 3-way RF power divider operates from 0.5 to 6 GHz. ● Uses low-loss microstrip technology for reliable RF/microwave performance. ● Functions as both a power splitter and combiner for system versatility. ● Handles up to 20W (splitter) and features a surface-mount design.
    $178.79
    Overview

    This 32-way GPS power divider is an essential passive component for modern microwave communication systems. Operating seamlessly as both a power splitter and combiner, it is engineered to distribute RF signals with high precision and minimal loss from 0.8 to 2.7 GHz. Its design prioritizes stability under high-power conditions, ensuring consistent performance for critical applications such as GPS networks, cellular base stations, and other wireless communication infrastructures. By providing equal signal division across 32 output ports with exceptional isolation, this device enables the creation of robust and scalable RF systems.

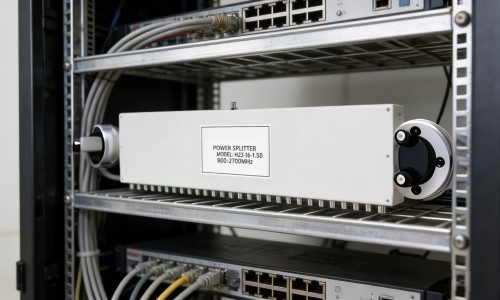

    GPS power divider 32 way feature

    Feature

    • Broad frequency coverage from 0.8 to 2.7 GHz for versatile application use.
    • High isolation between output ports to prevent signal interference and crosstalk.
    • Efficient heat dissipation system with built-in fans for sustained high-power operation.
    • Excellent amplitude and phase balance for consistent signal integrity across all paths.
    • Bidirectional functionality, serving effectively as both a power splitter and combiner.


    Details

    1. SMA-Female connectors for standard coaxial cable attachment
    2. Compact and lightweight aluminum housing for easy system integration
    3. Precision-engineered internal circuitry for minimal signal degradation
    4. Black painted surface for corrosion resistance and professional appearance
    GPS power divider 32 way detail

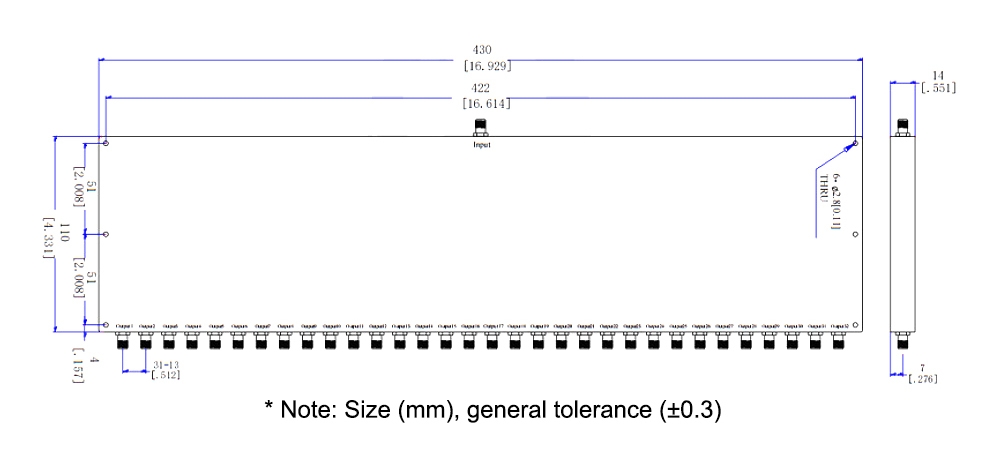

    Dimension (unit:mm)

    GPS power divider 32 way dimension

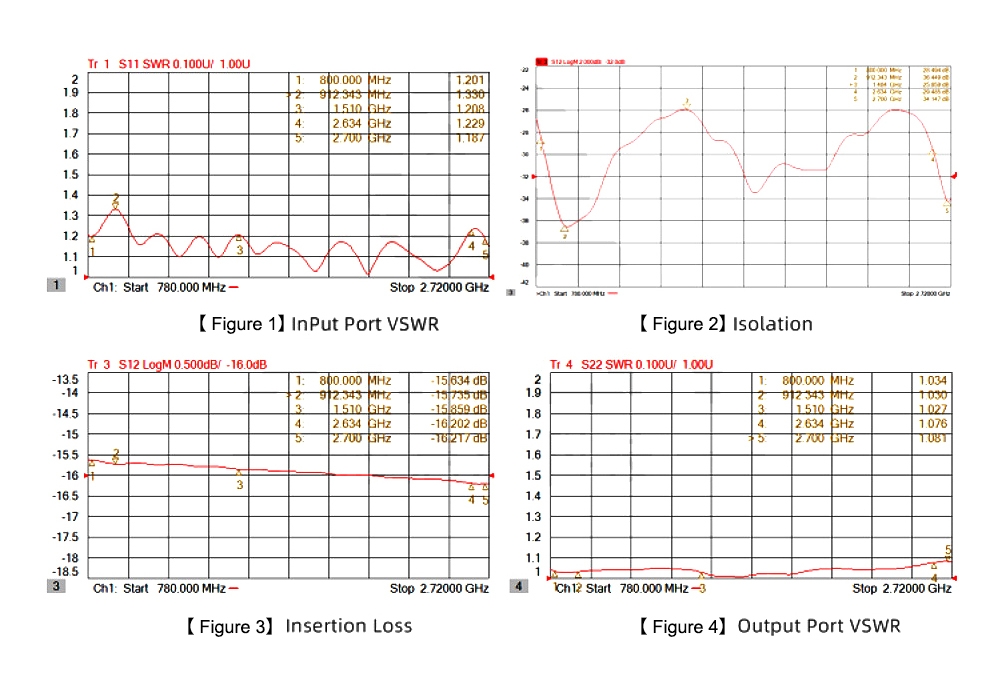

    Radio Frequency (RF) Parameter Diagram

    GPS power divider 32 way parameter diagram

    Specs
    Frequency Range 0.8 ~ 2.7 GHz
    Insertion Loss ≤ 1.8 dB (Excluding Theoretical Loss of 15.0 dB)
    Input Standing Wave Typ. 1.15 / Max. 1.45
    Output Standing Wave Typ. 1.15 / Max. 1.25
    Isolation Typ. 26 dB / Min. 18 dB
    Amplitude Balance ± 0.5 dB
    Phase Balance ± 8°
    Impedance 50 Ohms
    Port Connector SMA-Female
    Withstand Power 30W (Splitter) / 2W (Combiner)
    Working Temperature -35℃ ~ +75℃
    Dimension 430 x 110 x 14 mm
    Weight Approximately 1485.5 g
    Application
      Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

    Rural Cellular Communication

    Rural Cellular Communication

    Residential Satellite Reception

    Residential Satellite Reception

    Mountaintop Radar Station

    Mountaintop Radar Station

    FAQ

    Q1: Can this power divider be used as both a splitter and a combiner?
    Yes, this is a bidirectional passive device. It can equally split one input signal into 32 output signals or combine signals from 32 inputs into one common output, making it highly versatile for various system configurations.

    Q2: What are the key factors for ensuring stable performance in high-power applications?
    The integrated cooling fans are crucial for heat dissipation during continuous high-power operation. Additionally, ensuring proper impedance matching (50 Ohms) across all connected ports and operating within the specified temperature and power limits will guarantee long-term stability and performance.

    Q3: How is the insertion loss calculated, and what is the "theoretical loss"?
    The listed insertion loss (≤1.8 dB) is the additional signal loss introduced by the device itself. The "theoretical loss" of 15.0 dB is the inevitable loss that occurs when a signal is perfectly divided into 32 equal parts (10*log10(32) ≈ 15.05 dB). The total loss in a splitting application is the sum of this theoretical division loss and the device's insertion loss.
