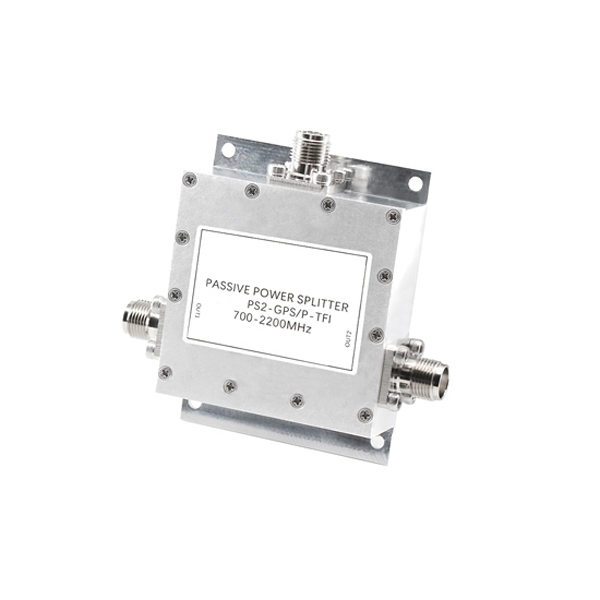

    Picture of GPS Power Divider 2 Way, 0.7~2.2 GHz

    GPS Power Divider 2 Way, 0.7~2.2 GHz

    1 review(s) | Add your review
    SKU: PH-PD-2W0722GHZ
    $146.39
    ● Efficient two-way coaxial power divider/combiner for the 0.7-2.2 GHz range. ● Low insertion loss and high isolation for minimal signal degradation. ● Integrated cooling fan ensures stable operation in high-power applications. ● Essential for GPS and microwave systems, offering precise signal splitting/combining.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products
    Picture of RF Power Divider 6 Way, 0.5~6 GHz

    RF Power Divider 6 Way, 0.5~6 GHz

    ● Efficient 0.5-6 GHz high-power RF signal distribution. ● Functions as both precision splitter and combiner with minimal loss. ● Fan-cooled robust design ensures stable performance. ● Compact with SMA-Female connectors for easy integration.
    $286.09
    Picture of RF Power Divider 10 Way, DC~3 GHz

    RF Power Divider 10 Way, DC~3 GHz

    ● Broad DC to 3 GHz operation with minimal signal loss. ● Compact microstrip design for space-constrained surface-mount applications. ● Excellent signal integrity with precise amplitude and phase balance across all ports. ● Ideal for GPS, communication systems, and test equipment.
    $763.49
    Picture of RF Power Divider 16 Way, 0.8~3 GHz

    RF Power Divider 16 Way, 0.8~3 GHz

    ● Precise 16-way RF signal splitter/combiner. ● Low loss and excellent balance for minimal signal degradation. ● SMA-Female connectors for reliable integration. ● Wide 0.8–3 GHz range, ideal for microwave and communication systems.
    $543.19
    Picture of GPS Power Divider 32 Way, 0.8~2.7 GHz

    GPS Power Divider 32 Way, 0.8~2.7 GHz

    ● Efficiently splits or combines high-power RF signals from 0.8 to 2.7 GHz. ● Uses microstrip and coaxial tech for minimal signal loss. ● Built-in fans ensure stable operation in high-power use. ● Robust design delivers excellent phase and amplitude balance for RF systems.
    $1,859.79
    Overview

    Optimized for satellite navigation grids, the PowerHome 2-Way GPS/GNSS Power Divider (0.7-2.2 GHz) features a specialized integrated network supporting **DC Feedthrough / Power Passing** to safely energize active remote antennas. Operating with minimal insertion loss across critical GPS L1/L2/L5, GLONASS, and Galileo frequencies, it ensures stable clock synchronization while providing strict 50 Ohm impedance matching. It is heavily favored by telecom engineers for cellular base station timing networks, marine navigation signal routing, and multi-receiver GPS telemetry deployment.

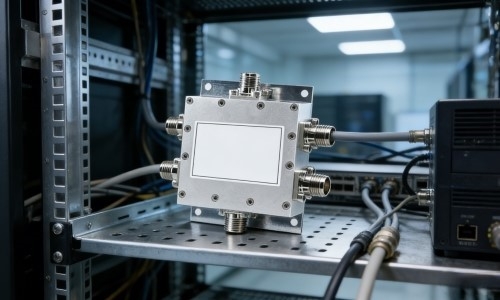

    gps power divider 2 way feature

    Feature

    • Efficient Signal Management: Splits or combines RF signals with minimal loss, utilizing proven coaxial and microstrip technologies.
    • Stable Performance: Features high isolation and excellent amplitude balance to prevent signal interference between channels.
    • Robust Construction: Built with a durable sandblasted finish and designed for reliable operation in demanding environments.
    • Enhanced Cooling: Integrated fan system ensures optimal heat dissipation for consistent stability in high-power applications.

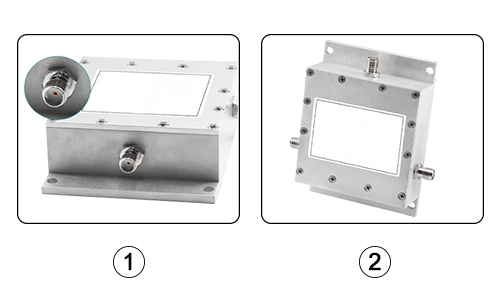

    Details

    1. Base Material: Using stainless steel as the base material, stainless steel passivation treatment is employed to enhance oxidation resistance and conductivity.
    2. Appearance & Material: The housing adopts an aluminum alloy sandblasting and anodizing process, providing strong oxidation resistance.
    gps power divider 2 way details

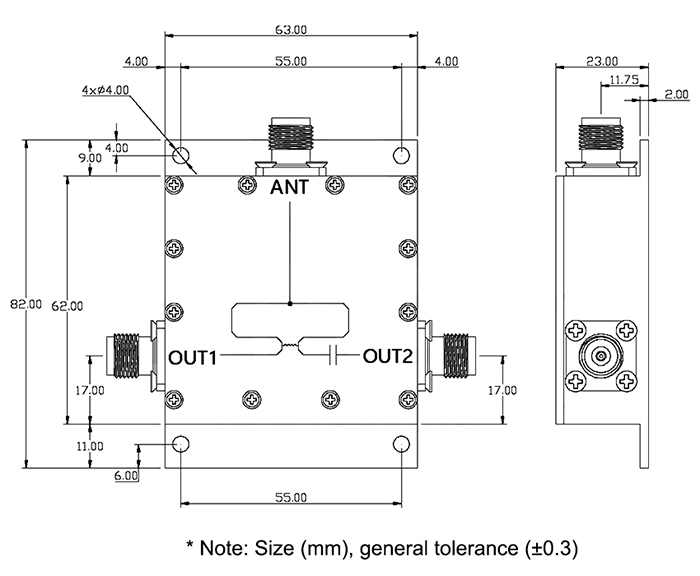

    Dimension (unit:mm)

    gps power divider 2 way dimension

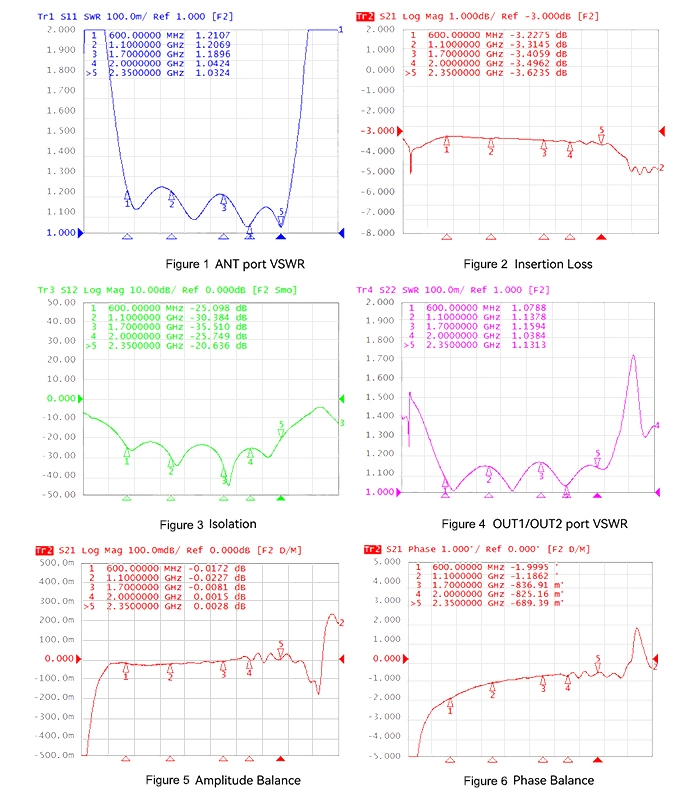

    Radio Frequency (RF) Parameter Diagram

    gps power divider 2 way parameter diagram

    Specs
    Frequency Range 0.7 ~ 2.2 GHz (700 ~ 2200 MHz)
    Insertion Loss ≤ 3.6 dB
    Amplitude Balance ≤ 0.5 dB
    Phase Balance ≤ ±5°
    Isolation ≥ 20 dB
    Combined End Standing Wave ≤ 1.35:1
    Distribution End Standing Wave ≤ 1.30:1
    DC Feedthrough Current 600 mA Max.
    DC Feedthrough Voltage DC ~ 28 V
    Port Connection TNC-Female
    Surface Treatment Sandblasting
    Application
    Military Radar 5G Communication

    Military Radar 5G Communication

    Rural Cellular Communication

    Rural Cellular Communication

    Urban Security Monitoring

    Urban Security Monitoring

    Commercial Mall 5G Coverage

    Commercial Mall 5G Coverage

    FAQ

    Q1: How does the cooling fan benefit the power divider's operation?
    The integrated cooling fan actively dissipates heat generated during high-power operation. This maintains the internal components at a stable temperature, which is crucial for ensuring long-term reliability, consistent electrical performance, and preventing signal degradation or damage.

    Q2: Can this power divider be used for frequencies outside the 0.7-2.2 GHz range?
    No, this model is specifically optimized for the 0.7 to 2.2 GHz frequency band. Using it outside this designed range will result in degraded performance, such as significantly higher insertion loss and poor impedance matching. Always select a power divider that matches your system's required frequency.

    Q3: Is professional installation required for this device?
    While the device itself is designed for straightforward integration with standard TNC connectors, proper installation into an RF system requires an understanding of cabling, impedance matching, and system design. For optimal performance and safety, installation by a qualified technician familiar with RF systems is recommended.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Richard | 6/15/2026 6:40 AM
    Finally Got Both My GPS Receivers Running Off One Antenna
    I needed to feed a GPS signal to two different devices in my workshop and didn't want to mount a second antenna on the roof. Picked up this 2-way splitter and it's been working flawlessly. Hooked it up between the antenna and both receivers, and both units lock onto satellites just like they did with dedicated antennas. No weird signal dropouts or interference between them. Build quality feels solid too. Saved me the hassle of drilling another hole and running more cable. Simple solution that just works.
